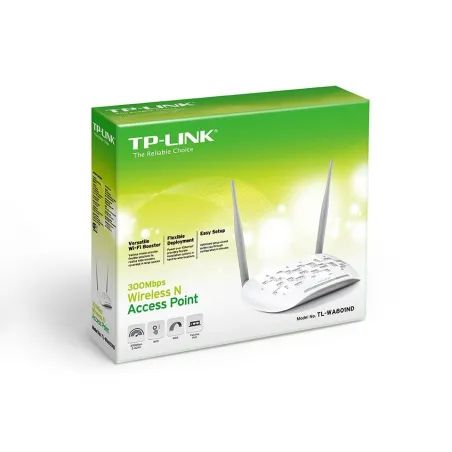

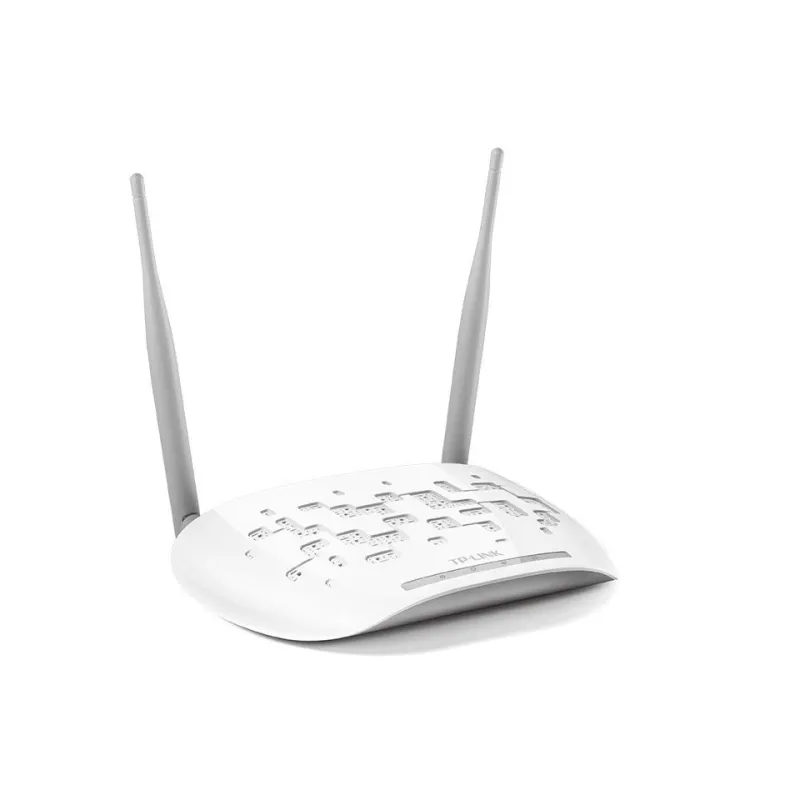

TP-Link TL-WA801ND Wireless Access Point Wireless N 2.4GHz 300Mbps รองรับ Repeater พร้อม POE

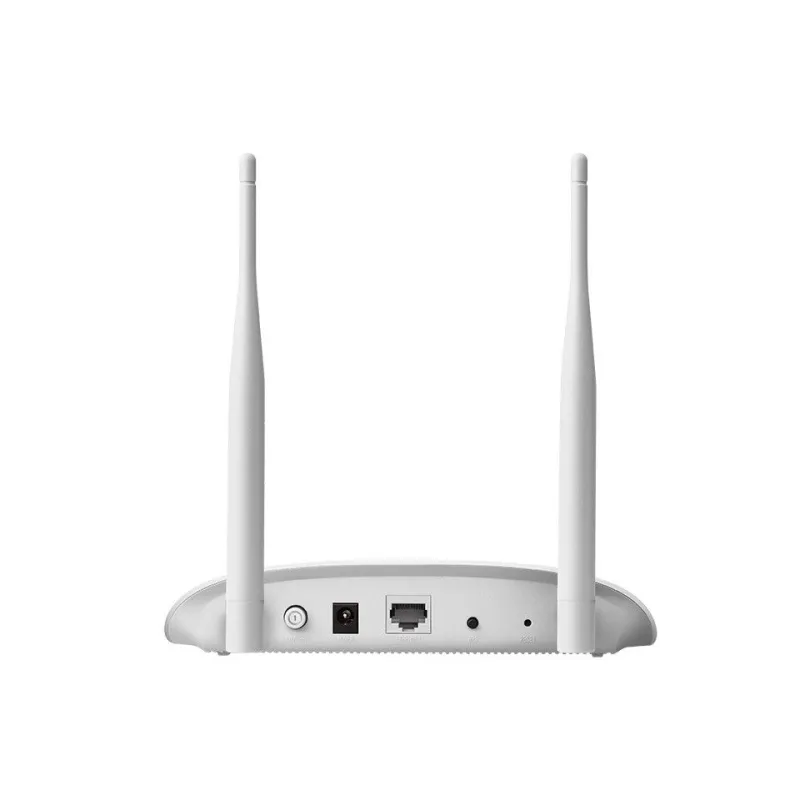

1 Port 10/100M Ethernet Port(RJ45)
Support Passive PoE

Power On/Off Button
WPS Button
Reset Button

9VDC / 0.6A

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)

2*5dBi Detachable Omni Directional (RP-SMA)

2.4-2.4835GHz

11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

< 20dBm (EIRP)

AP Mode
Multi-SSID Mode
Client Mode
Repeater Mode (WDS/Universal)
Bridge with AP Mode

Enable/Disable Wireless Radio
WDS Bridge
MAC Address Filter

64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

WMM

SNMP

PoE แบบ Passive ในชุดอุปกรณ์ ใช้กับสาย UTP ได้สูงสุด 30 เมตร

CE, FCC, RoHS

Wireless Access Point TL-WA801ND
2 Detachable Omni directional antennas
Power supply unit
Passive PoE Power Injector
Resource CD
Quick Installation Guide
RJ-45 Ethernet Cable

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 10,
MAC OS, NetWare, UNIX or Linux.

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
