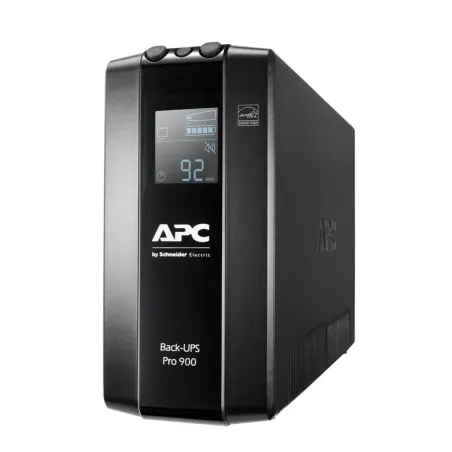

APC BR900MI เครื่องสำรองไฟ APC Back-UPS Pro, 900VA/540W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
APC BR900MI UPS Product Datasheet
APC BR900MI UPS User Manual
Main Input Voltage | 230 V |
|---|---|
Rated power in W | 540 W |
Rated power in VA | 900 VA |
Product or component type | Uninterruptible power supply (UPS) |
Input Connection Type | IEC 60320 C13 |
output connection type | 6 IEC 60320 C13 |
Battery type | Lead-acid battery |
Number of battery filled slots | 0 |
Number of battery free slots | 0 |
Battery recharge time | 12 h |
Number of battery replacement quantity | 1 |
Battery voltage | 12 V |
Battery capacity | 9.4 Ah |
Battery charger power | 11 W rated |
Battery life | 3…5 year(s) |
Extended runtime | 0 |
Provided equipment | User manual USB cable |
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
Redundant | No |
height | 19 cm |
Width | 9.1 cm |
Depth | 31 cm |
Net weight | 7.1 kg |
Mounting preference | No preference |
Mounting mode | Not rack-mountable |
Two post mountable | 0 |
USB compatible | No |
Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
Input voltage limits | 176...294 V |
Maximum input current | 10 A |
Switching current capacity | 10 A |
Maximum configurable power in W | 540 W |
Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
UPS type | Line interactive |
Wave type | Stepped approximation to a sinewave |
Maximum configurable power in VA | 900 VA |
Transfer time | 10 ms typical : 12 ms maximum |
product certifications | A-Tick C-Tick CE EAC RCM TISI |
Marking | GS Mark |
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Ambient air temperature for operation | 0…40 °C |
Relative humidity | 0…95 % |
Operating altitude | 0...10000 ft |
Ambient air temperature for storage | -15…45 °C |
Storage Relative Humidity | 0…95 % |
Storage altitude | 0.00…15240.00 m |
Acoustic level | 45 dBA |
Heat dissipation | 16.4 Btu/h |
control panel | Multifunction LCD status and control console |
Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
Package 1 Height | 25.5 cm |
Package 1 Width | 14.3 cm |
Package 1 Length | 44 cm |
Package 1 Weight | 8 kg |
SCC14 | 10731304346941 |
Warranty | 3 years repair or replace |
