Main Input Voltage | 230 V |
|---|
Other Input Voltage | 220 V
240 V |
|---|
Main Output Voltage | 230 V |
|---|
Other Output Voltage | 220 V
240 V |
|---|
Rated power in W | 2700 W |
|---|
Rated power in VA | 3000 VA |
|---|

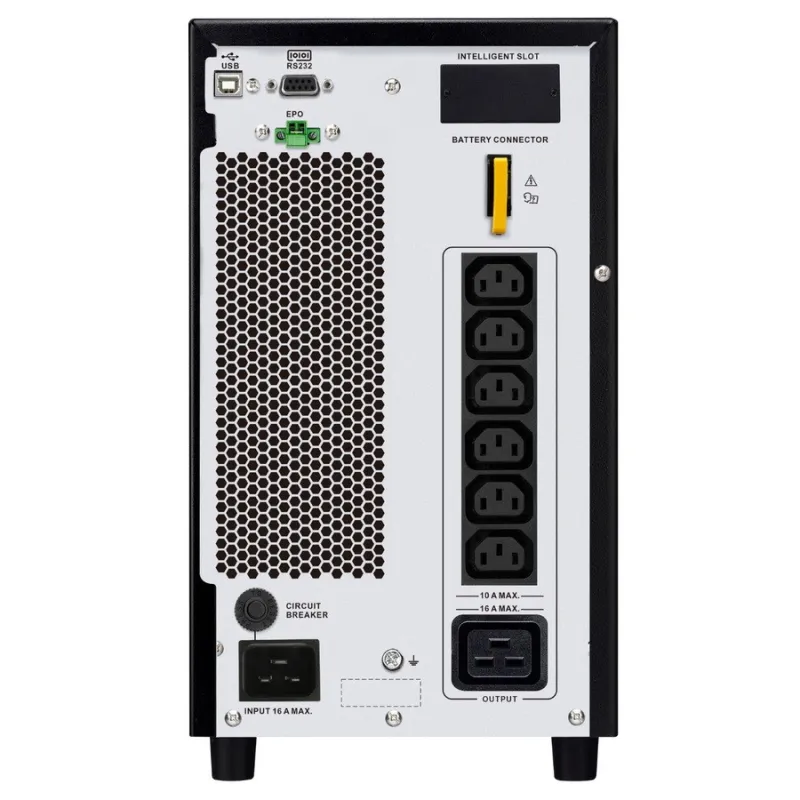

Input Connection Type | IEC 60320 C20 |
|---|
output connection type | 6 IEC 60320 C13
1 IEC 60320 C19 |
|---|
Cable length | 1.5 m |
|---|
Number of cables | 1 |
|---|
Provided equipment | 1 IEC 60320 C19 to Schuko power cable
1 IEC 60320 C13 to C14 power cable
1 USB cable
1 RS-232 configuration cable
user manual |
|---|
รันไทม์ | View Runtime Graph |
|---|
ประสิทธิภาพ | View Efficiency Graph |
|---|
Battery type | Lead-acid battery |
|---|
Battery voltage | 72 V |
|---|
Number of battery filled slots | 0 |
|---|
Number of battery free slots | 0 |
|---|
Battery recharge time | 4 h |
|---|
Battery life | 3…5 year(s) |
|---|
Replacement battery | APCRBCV205 |
|---|
Battery charger power | 60 W rated |
|---|
Max runtime | 3 min |
|---|
Number of power module filled slots | 0 |
|---|
Number of power module free slots | 0 |
|---|
Redundant | No |
|---|
Colour | Black (RAL 7010) |
|---|
height | 33.6 cm |
|---|
Width | 19 cm |
|---|
Depth | 42.5 cm |
|---|
Net weight | 26.0 kg |
|---|
Mounting location | Front |
|---|
Mounting preference | No preference |
|---|
Mounting mode | Not rack-mountable |
|---|
USB compatible | Yes |
|---|
Mounting position | Vertical |
|---|
Input voltage limits | 110...285 V half load
180...285 V full load |
|---|
Network frequency | 40...70 Hz auto sensing |
|---|
Maximum configurable power in VA | 3000 VA |
|---|
Maximum configurable power in W | 2700 W |
|---|
Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
|---|
Harmonic distortion | 3 % |
|---|
UPS type | Double conversion online |
|---|
Wave type | Sine wave |
|---|
Efficiency | 88 % (full load) |
|---|
Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|
bypass type | Internal bypass (automatic and manual) |
|---|
Crest factor | 3 : 1 |
|---|
product certifications | CE UKCA TISI |
|---|
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
|---|
Ambient air temperature for operation | 0…40 °C |
|---|
Relative humidity | 0…95 % non-condensing |
|---|
Operating altitude | 0...3000 m |
|---|
Ambient air temperature for storage | -20…50 °C |
|---|
Storage Relative Humidity | 0…95 % non-condensing |
|---|
Storage altitude | 0…15000 m |
|---|
Acoustic level | 50 dBA |
|---|
Heat dissipation | 1024 Btu/h |
|---|
IP degree of protection | IP20 |
|---|
Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|
Free slots | 1 |
|---|
control panel | Multifunction LCD status and control console |
|---|
Surge energy rate | 945 J |
|---|
Unit Type of Package 1 | PCE |
|---|
Number of Units in Package 1 | 1 |
|---|
Package 1 Height | 46.5 cm |
|---|
Package 1 Width | 56.5 cm |
|---|
Package 1 Length | 32.5 cm |
|---|
Package 1 Weight | 28 kg |
|---|
Warranty | 2 years repair or replace |
|---|
