Product Description |
|

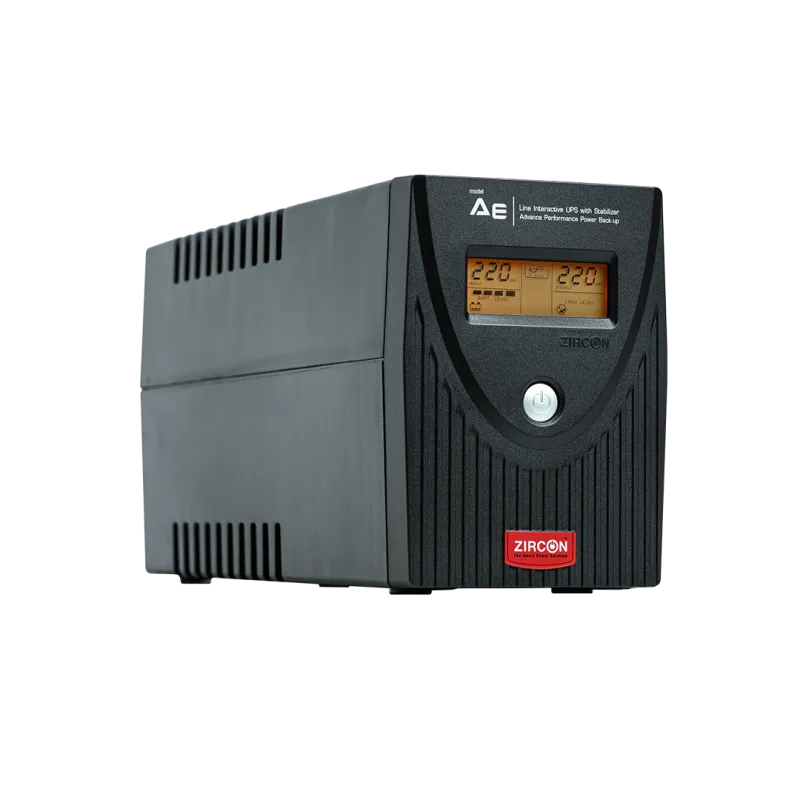

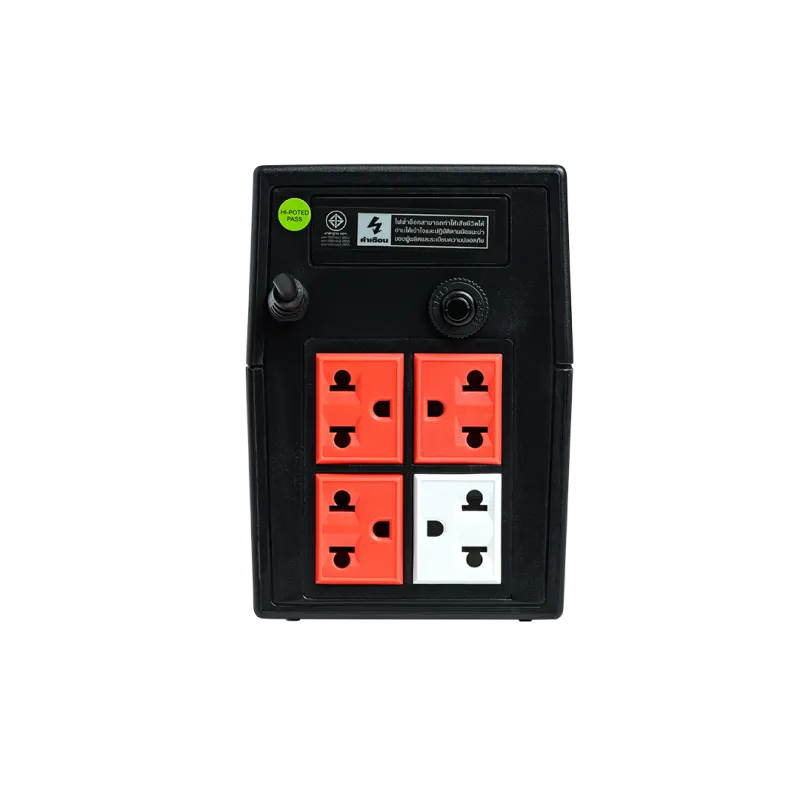

เครื่องสำรองไฟ (UPS) ZIRCON AE_1000Va/550Watt Universal Outlet, 230V ประกัน 2 Yrs |
Input |
Voltage Range Frequency Range
|
220 VAC +/-25% 50/60Hz. +/-10% (Auto Sensing) |
Output |
Voltage Regulation Frequency
|
220 VAC +/-10%(AVR), +/-5%(Battery) 50Hz. +/-0.1% Sine Wave In Normal Condition Modified Sine Wave In Backup Condition |
Battery |
Back up Time Recharge Time to 90%
|
Maintenance Free Sealed Lead-acid Battery 4-6 Hours (90% After Fully Discharged) Backup Time 15-30 Min. (Depend on loads) |
Transfer Time |
|
Utility to Battery; 0ms, Utility to Bypass <4ms |
Protection |
System Design Transfer Time Surge Energy Dissipation Noise Filter Overload & Short Circuit |
Line Interactive UPS with Stabilizer, Microprocessor Control Typical 2 ms. 320 Joules (6500A) EMI Suppression Reset Fuse Protection |
Indicator |

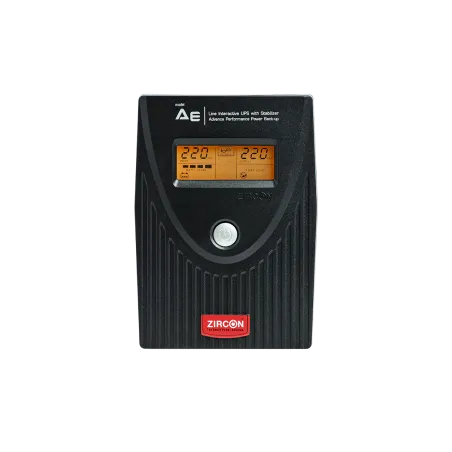

LCD Display |
AC Mode, Battery Mode, Input Voltage, Output voltage, Battery Level, Charging Battery, Load Level, Low Battery, Overload, Fault & Battery Replace |
Dimensions |
WxDxH (mm.) |
298x101x142 |
Weight |
Kilogram |
4.5 kg. |
Environment |
Ambient Temperature Audible Noise Relative Humidity Safety Electromagnetic Compatibility |
0 to +40 ºC < 40db(1 Meter) 90% (Non-Condensing) IEC/EN62040-1;IEC/EN60950-1
IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;
IEC61000-4-6;IEC61000-4-8
|
Standards |
Regular Approvals |
IEC/EN62040-1, IEC/EN60950-1 IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC6100-4-4 IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 ISO9001, ISO14001 |
