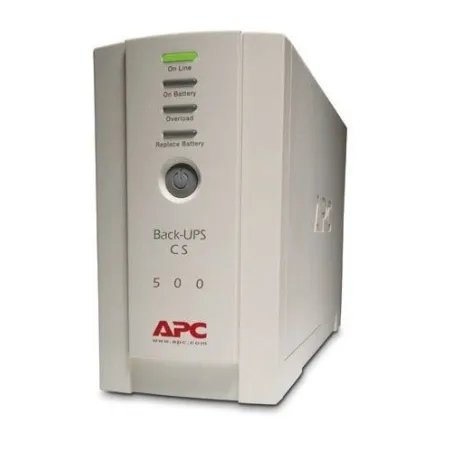

APC BK500EI เครื่องสำรองไฟ APC Back-UPS 500VA/300W, 230V, Surge Protection ประกัน 2 ปี
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
APC BK500EI User Guide
APC BK500EI Datasheet
Product Description | APC Back-UPS BK500EI เครื่องสำรองไฟ 500VA/300W Battery Backup & Surge Protector, 230V ประกัน 2 Yrs./Onsite Swap |
---|---|
Model Name | APC Back-UPS 500, 230V |
Includes | CD with software , Documentation CD , Qty 1 - Detachable 1.2 m IEC power cord , Qty 1- Detachable IEC Power Cord , Telephone Cable , USB cable , Warranty card |
Standard Lead Time | Usually in Stock |
Output Power Capacity | 300 Watts / 500 VA |
Max Configurable Power (Watts) | 300 Watts / 500 VA |
Nominal Output Voltage | 230V |
Output Frequency (sync to mains) | 47 - 63 Hz |
Standby | |
Waveform Type | Stepped approximation to a sinewave |

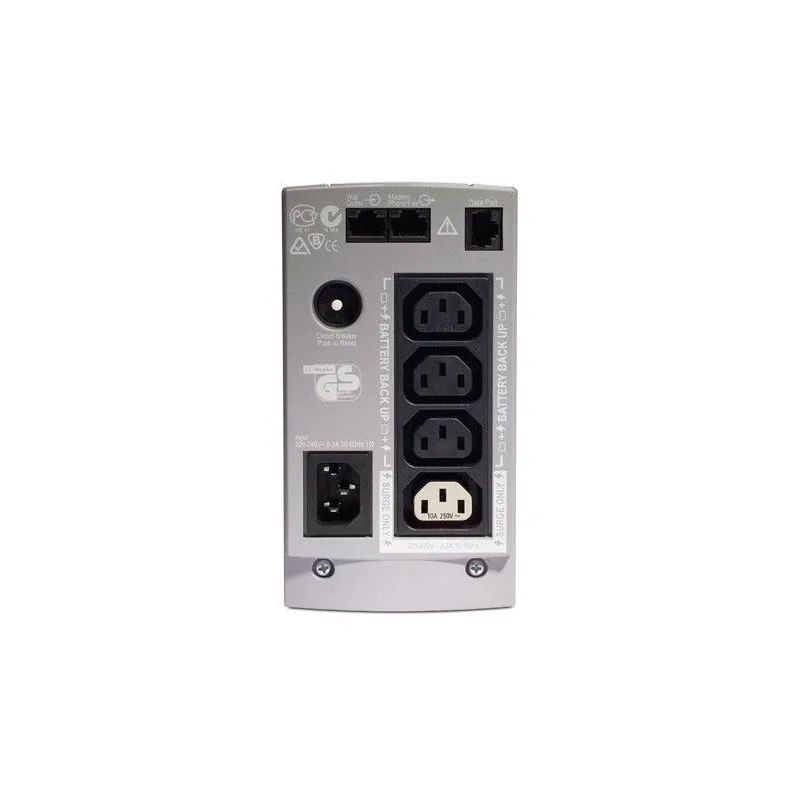

Output Connections | (1) IEC 320 C13 (Surge Protection) , (2) IEC Jumpers (Surge Protection) , (3) IEC 320 C13 (Battery Backup) |
Nominal Input Voltage | 230V |
Input Frequency | 47 - 63 Hz , 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320-C14 inlet |
Input voltage range for main operations | 180 - 266 V |
Input voltage adjustable range for mains operation | 160 - 300V |
Maximum Input Current | 7 A |
Input Breaker Capacity | 7 A |
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 8 hour(s) |
Replacement Battery | RBC2 |
RBC Quantity | 1 |
Interface Port(s) | Optional Simple Signalling RS232 cable , USB |
Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rating | 310 Joules |
Filtering | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Data Line Protection | Analog phone line for phone/fax/modem/DSL (RJ-45 connector) |
Maximum Height | 165.0 mm |
Maximum Width | 91.0 mm |
Maximum Depth | 284.0 mm |
Net Weight | 6.32 kg |
Shipping Weight | 7.05 kg |
Shipping Height | 178.0 mm |
Shipping Width | 241.0 mm |
Shipping Depth | 368.0 mm |
Master Carton Units | 1.0 |
Color | Beige |
SCC Codes | 107 31304 01635 6 |
Units per Pallet | 48.0 |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95 % |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95 % |
Storage Elevation | 0-15000 meters |
Audible noise at 1 meter from surface of unit | 40.000 dB |
Online Thermal Dissipation | 24.000 BTU/hr |
Approvals | C-tick , CE , EN 50091-1 , EN 50091-2 , GOST , VDE |
Standard warranty | 2 years repair or replace |
Equipment protection policy | Lifetime : 100000 Euro , Lifetime : 50000 GBP |
RoHS | Compliant |
REACH | REACH: Contains SVHCs |
