APC BK650-AS Product Datasheet
APC BK650-AS Product User Guide
| Product Description | APC BK650-AS เครื่องสำรองไฟ APC BACK-UPS 650VA/400W, 230V ประกัน 2 ปี |
|---|---|
| Model Name | APC BACK-UPS BK650-AS 650VA 230V ASEAN |
| Includes | CD with software , Documentation CD , Qty 1 - Detachable 1.2 m IEC power cord , Qty 1 - Detachable 1.8 m IEC power cord , Telephone Cable , USB cable , Warranty card |
| Standard Lead Time | Usually in Stock |
| Output Power Capacity | 400 Watts / 650 VA |
| Max Configurable Power (Watts) | 400 Watts / 650 VA |
| Nominal Output Voltage | 230V |
| Standby | |

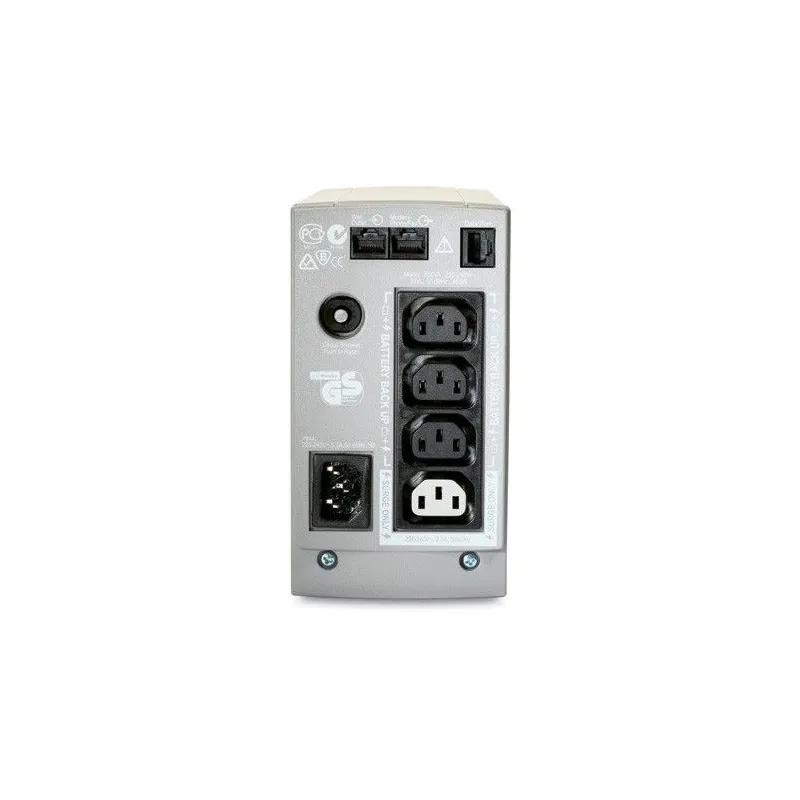

| Output Connections | (1) IEC 320 C13 (Surge Protection) , (3) IEC 320 C13 (Battery Backup) |
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | IEC-320 C14 |
| Cord Length | 1.83 meters |
| Input voltage range for main operations | 180 - 260 V |
| Input voltage adjustable range for mains operation | 160 - 282V |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time | 8 hour(s) |
| Replacement Battery | RBC17 |
| RBC Quantity | 1 |
| Interface Port(s) | USB |

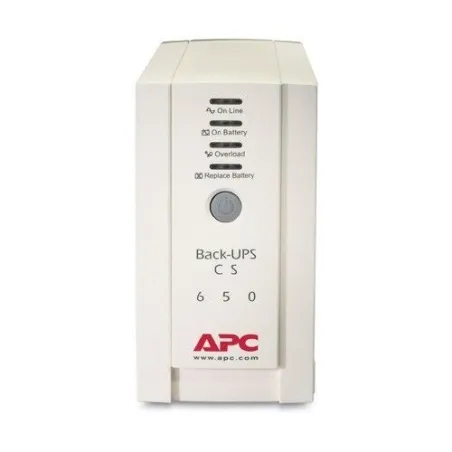

| Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 320 Joules |
| Data Line Protection | Analog phone line for phone/fax/modem/DSL (RJ-45 connector) |
| Maximum Height | 165.0 mm |
| Maximum Width | 91.0 mm |
| Maximum Depth | 284.0 mm |
| Net Weight | 6.04 kg |
| Shipping Weight | 7.32 kg |
| Shipping Height | 494.0 mm |
| Shipping Width | 185.0 mm |
| Shipping Depth | 415.0 mm |
| Master Carton Units | 1.0 |
| Master Carton Weight | 16.09 lbs |
| Color | Beige |
| SCC Codes | 1073130422443 0 |
| Units per Pallet | 48.0 |
| Operating Environment | 0 - 40 °C |
| Operating Relative Humidity | 5 - 95 % |
| Operating Elevation | 0-9000 meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 5 - 95 % |
| Storage Elevation | 0-4500 meters |
| Audible noise at 1 meter from surface of unit | 45.000 dB |
| Online Thermal Dissipation | 0.000 BTU/hr |
| Approvals | A-tick , C-tick , CE , GOST , NEMKO |
| Standard warranty | 2 years repair or replace |
| Equipment protection policy | Lifetime : $100000 , Lifetime : 50000 GBP |
