Main Input Voltage | 230 V |
|---|
Rated power in W | 865 W |
|---|
Rated power in VA | 1500 VA |
|---|

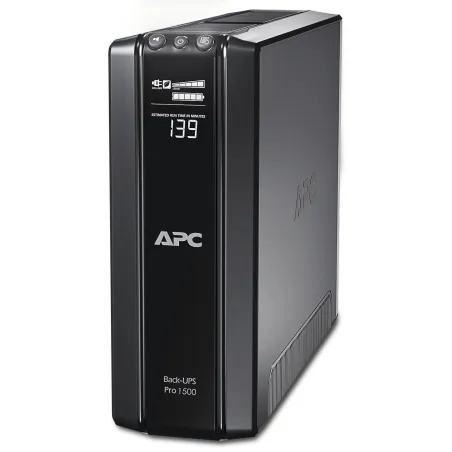

Product or component type | Uninterruptible power supply (UPS) |
|---|
Input Connection Type | IEC 60320 C13 |
|---|

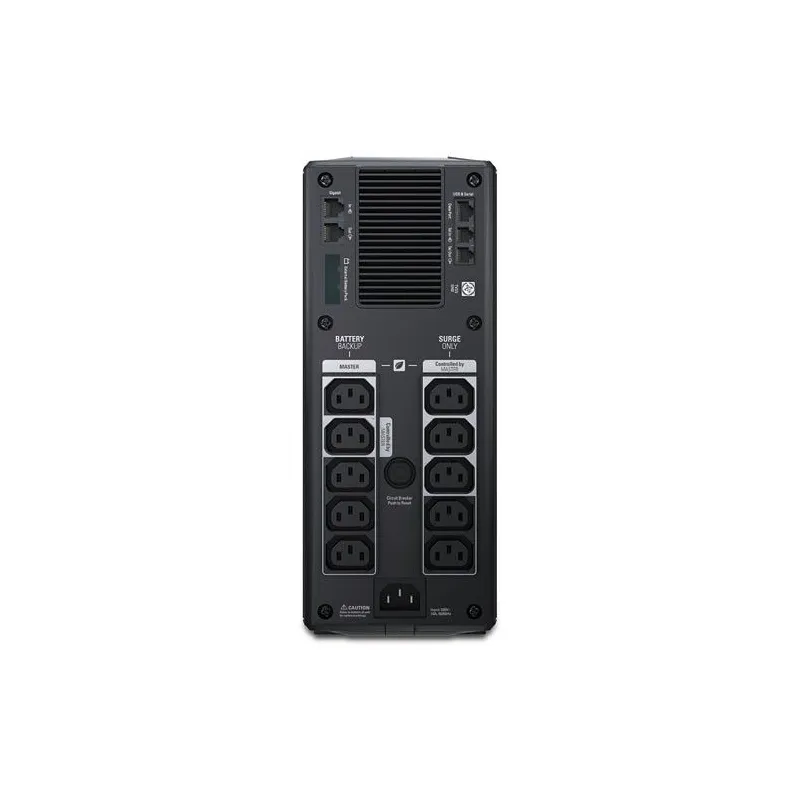

output connection type | 5 IEC 60320 C13 5 IEC 60320 C13 surge 2 IEC Jumpers |
|---|
Number of cables | 1 |
|---|
Battery type | Lead-acid battery |
|---|
Number of battery filled slots | 0 |
|---|
Number of battery free slots | 0 |
|---|
Battery recharge time | 8 h |
|---|
Number of battery replacement quantity | 1 |
|---|
Battery voltage | 24 V |
|---|
Battery capacity | 9.0 Ah |
|---|
Battery charger power | 23 W rated |
|---|
Battery life | 3…5 year(s) |
|---|
Replacement battery | APCRBC124 |
|---|
Battery graph comments | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
|---|
Extended runtime | 0 |
|---|
Provided equipment | 1, detachable IEC power cord telephone cable user manual USB cable |
|---|
Number of power module free slots | 0 |
|---|
Number of power module filled slots | 0 |
|---|
Redundant | No |
|---|
Colour | Black |
|---|
height | 30.1 cm |
|---|
Width | 11.2 cm |
|---|
Depth | 38 cm |
|---|
Net weight | 12.7 kg |
|---|
Mounting preference | No preference |
|---|
Mounting mode | Not rack-mountable |
|---|
Two post mountable | 0 |
|---|
USB compatible | No |
|---|
Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|
Input voltage limits | 156...300 V adjustable 176...294 V |
|---|
Switching current capacity | 10 A |
|---|
Maximum configurable power in W | 865 W |
|---|
Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
|---|
Crest factor | 3 : 1 |
|---|
UPS type | Line interactive |
|---|
Wave type | Stepped approximation to a sinewave |
|---|
Maximum configurable power in VA | 1500 VA |
|---|
Transfer time | 10 ms typical : 12 ms maximum |
|---|
product certifications | A-Tick C-Tick CE GOST Telepermit TÜV |
|---|
Marking | GS Mark |
|---|
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
|---|
Equipment protection policy | Lifetime : 200000
AUD Lifetime : 150000
euros Lifetime : 75000 GBP |
|---|
Ambient air temperature for operation | 0…40 °C |
|---|
Relative humidity | 0…95 % |
|---|
Operating altitude | 0...30000 ft |
|---|
Ambient air temperature for storage | -15…45 °C |
|---|
Storage Relative Humidity | 0…95 % |
|---|
Storage altitude | 0.00…15240.00 m |
|---|
Acoustic level | 45 dBA |
|---|
control panel | Multifunction LCD status and control console |
|---|
Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|---|
Surge energy rate | 441 J |
|---|
Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
|---|
Unit Type of Package 1 | PCE |
|---|
Number of Units in Package 1 | 1 |
|---|
Package 1 Height | 38.7 cm |
|---|
Package 1 Width | 23.8 cm |
|---|
Package 1 Length | 48.8 cm |
|---|
Package 1 Weight | 14.3 kg |
|---|
Unit Type of Package 2 | PAL |
|---|
Number of Units in Package 2 | 24 |
|---|
Package 2 Height | 132 cm |
|---|
Package 2 Width | 100 cm |
|---|
Package 2 Length | 120 cm |
|---|
Package 2 Weight | 342.48 kg |
|---|
SCC14 | 10731304268748 |
|---|
Warranty | 3 years repair or replace |
|---|
