Product Description
|

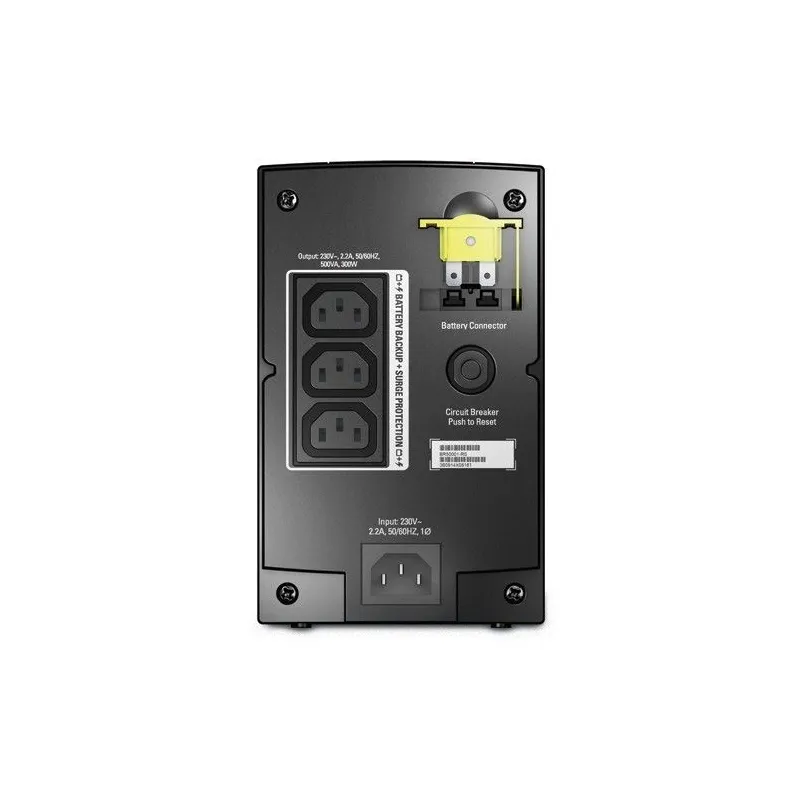

APC BR500CI-AS เครื่องสำรองไฟ APC Back-UPS RS 500VA/300W, 230V, Surge Protection, without auto shutdown software ประกัน 2 Yrs./Onsite Swap
|
|
Main Input Voltage
|
230 V
|
|
Rated power in W
|
300 W
|
|
Rated power in VA
|
500 VA
|
|
output connection type
|
3 IEC 60320 C13
|
|
Cable length
|
1.83 m
|
|
Number of cables
|
1
|
|
Battery type
|
Lead-acid battery
|
|
Number of battery filled slots
|
0
|
|
Number of battery free slots
|
0
|
|
Battery recharge time
|
10 h
|
|
Number of battery replacement quantity
|
1
|
|
Battery charger power
|
7 W rated
|
|
Battery power in VAH
|
73 VAh runtime
|
|
Battery life
|
2…4 year(s)
|
|
Battery graph comments
|
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
|
|
Extended runtime
|
0
|
|
Provided equipment
|
2, detachable 1.8 m IEC power cords
user manual
warranty card
|
|
Max runtime
|
28 min
|
|
Number of power module free slots
|
0
|
|
Number of power module filled slots
|
0
|
|
Redundant
|
No
|
|
Colour
|
Black
|
|
height
|
18.5 cm
|
|
Width
|
11.5 cm
|
|
Depth
|
21.3 cm
|
|
Net weight
|
4.9 kg
|
|
Mounting preference
|
No preference
|
|
Mounting mode
|
Not rack-mountable
|
|
Two post mountable
|
0
|
|
USB compatible
|
No
|
|
Network frequency
|
50/60 Hz +/- 3 Hz auto-sensing
|
|
Maximum configurable power in W
|
300 W
|
|
Output frequency
|
47...63 Hz sync to mains
|
|
UPS type
|
Line interactive
|
|
Wave type
|
Stepped approximation to a sinewave
|
|
Maximum configurable power in VA
|
500 VA
|
|
Transfer time
|
6 ms typical : 10 ms maximum
|
|
Standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Relative humidity
|
0…95 %
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage Relative Humidity
|
0…95 %
|
|
Storage altitude
|
0.00…15240.00 m
|
|
Surge energy rate
|
240 J
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
25.7 cm
|
|
Package 1 Width
|
29.1 cm
|
|
Package 1 Length
|
19 cm
|
|
Package 1 Weight
|
5.5 kg
|
|
SCC14
|
00731304269793
|
|
Warranty
|
2 years repair or replace
|
