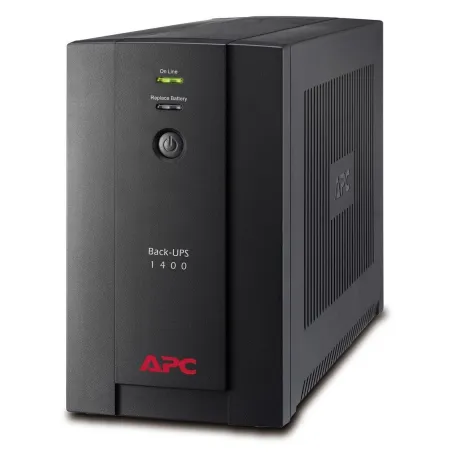

    APC BX1400U-MS เครื่องสำรองไฟ UPS APC Back-UPS 1400VA/700W, 230V, AVR

    APC

    APC BX1400U-MS เครื่องสำรองไฟ UPS APC Back-UPS 1400VA/700W, 230V, AVR, Universal and IEC Sockets ประกัน 2 Yrs./Onsite Swap

    ฿7,590.00
    ยังไม่ได้รวมภาษี
    จำนวน
    Out-of-Stock


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    APC BX1400U-MS UPS Product Datasheet
    APC BX1400U-MS UPS Product User Guide

    Product Description

    APC BX1400U-MS เครื่องสำรองไฟ UPS APC Back-UPS 1400VA/700W, 230V, AVR, Universal and IEC Sockets

    ประกัน 2 Yrs./Onsite Swap

    Model Name

    APC Back-UPS 1400VA, 230V, AVR, Universal and IEC Sockets

    Includes

    Qty 1 - Detachable 1.8 m IEC power cord , Qty 1 - Detachable 2.0 m NEMA 5-15P to IEC C13 power cord , User Manual , Warranty card

    Standard Lead Time

    Usually in Stock

    Product Distribution

    Bangladesh , Bolivia , Cambodia , Chile , Indonesia , Malaysia , Myanmar , Nepal , Paraguay , Peru , Philippines , Singapore , Thailand , Uruguay , Viet Nam

    Output Power Capacity

    700 Watts / 1400 VA

    Max Configurable Power (Watts)

    700 Watts / 1400 VA

    Nominal Output Voltage

    230V

    Output Frequency (sync to mains)

    50/60 Hz +/-1 Hz



    Line Interactive

    Waveform Type

    Stepped approximation to a sinewave

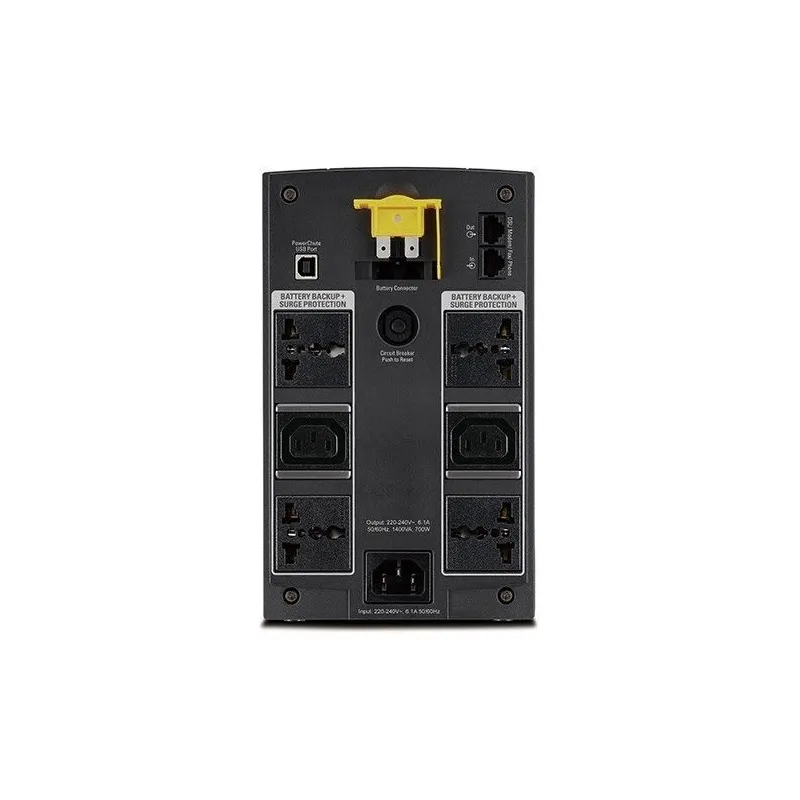

    Output Connections

    (2) IEC 320 C13 (Battery Backup) , (4) Universal Receptacle (Battery Backup)

    Nominal Input Voltage

    230V

    Input Frequency

    50/60 Hz +/- 3 Hz (auto sensing)

    Input Connections

    IEC-320 C14 , NEMA 5-15P

    Cord Length

    1.22 meters

    Input voltage range for main operations

    150 - 280 V

    Maximum Input Current

    6 A

    Input Breaker Capacity

    10 A

    Type of Input Protection Required

    3-pole breaker

    Battery Type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

    Included Battery Modules

    1

    Typical recharge time

    8 hour(s)

    Replacement Battery

    APCRBC113

    Control panel

    LED status display with On Line : On Battery : Replace Battery and Overload indicators

    Audible Alarm

    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

    Surge energy rating

    273 Joules

    Data Line Protection

    RJ-11 Modem/Fax protection

    Maximum Height

    215.0 mm

    Maximum Width

    130.0 mm

    Maximum Depth

    336.0 mm

    Net Weight

    12.0 kg

    Shipping Weight

    12.94 kg

    Shipping Height

    295.0 mm

    Shipping Width

    245.0 mm

    Shipping Depth

    440.0 mm

    Color

    Black

    Operating Environment

    0 - 40 °C

    Operating Relative Humidity

    0 - 95 (non-condensing) %

    Operating Elevation

    0-3000 meters

    Storage Temperature

    -15 - 45 °C

    Storage Relative Humidity

    0 - 95 (non-condensing) %

    Storage Elevation

    0-9000 meters

    Audible noise at 1 meter from surface of unit

    45.000 dB

    Standard warranty

    2 years repair or replace

    Equipment protection policy

    No EPP for ASEAN

    RoHS

    Compliant

    REACH

    REACH: Contains No SVHCs



    รายละเอียดสินค้า

    ข้อมูลสินค้า

    กำลังไฟสูงสุด (Watts)
    501W - 1000W
    อุปกรณ์ไฟฟ้าที่ใช้
    PC, Monitor, Printer (Line Interactive UPS)
