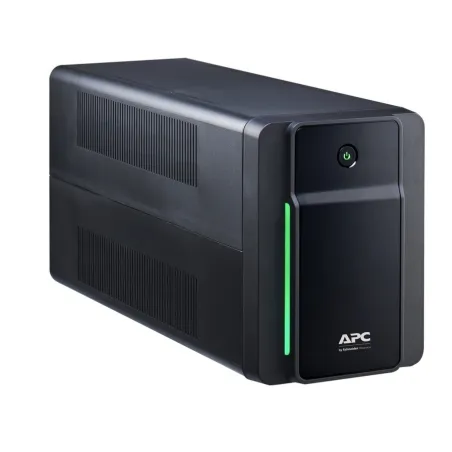

APC BX1600MI-MS UPS Product Datasheet
| Product Description | APC Back-UPS BX1600MI-MS UPS ขนาด 1600VA/900W, 230V, 4 Universal outlets, AVR ประกัน 3 Yrs. |
|---|---|
| Main Input Voltage | 230 V |
| Rated power in W | 900 W |
| Rated power in VA | 1600 VA |
| output connection type | 4 universal |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 24 V |
| Battery life | 3…5 year(s) |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime | 0 |
| Provided equipment | User manual |
| Max runtime | 240 min |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
| height | 19 cm |
| Width | 14 cm |
| Depth | 39 cm |
| Net weight | 10.3 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Input voltage limits | 140...300 V |
| Input Power Factor at Full Load | 0.56 |
| Maximum configurable power in W | 900 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:01:00 900 W |
| Half load runtime | 00:06:30 450 W |
| Maximum configurable power in VA | 1600 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| product certifications | CE |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| Equipment protection policy | Lifetime : 50000 euros |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| control panel | LED Status display with on line : on battery |
| Surge energy rate | 273 J |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 29.7 cm |
| Package 1 Width | 49.5 cm |
| Package 1 Length | 23.5 cm |
| Package 1 Weight | 11.3 kg |
| SCC14 | 10731304410727 |
| Warranty | 3 years repair or replace |
