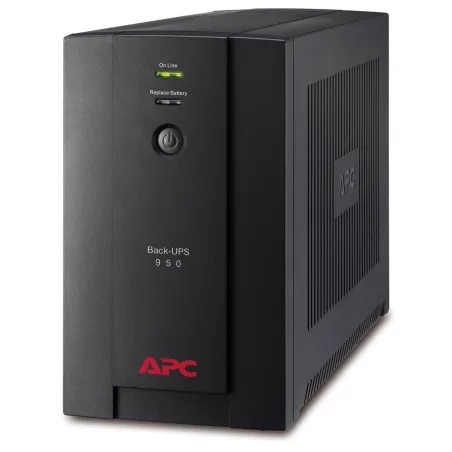

APC BX950U-MS เครื่องสำรองไฟ APC UPS Back-UPS 950VA/480W, 230V, AVR, Universal and IEC Sockets ประกัน 2 Yrs./Onsite Swap
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
APC BX950U-MS UPS Product Datasheet
APC BX950U-MS UPS Product User Guide
Product Description | APC BX950U-MS เครื่องสำรองไฟ UPS APC Back-UPS 950VA/480W, 230V, AVR, Universal and IEC Sockets ประกัน 2 Yrs./Onsite Swap |
---|---|
Model Name | APC Back-UPS 950VA, 230V, AVR, Universal and IEC Sockets |
Includes | Qty 1 - Detachable 1.2 m IEC power cord , Qty 1 - Detachable 2.0 m NEMA 5-15P to IEC C13 power cord , User Manual |
Standard Lead Time | Usually in Stock |
Output Power Capacity | 480 Watts / 950 VA |
Max Configurable Power (Watts) | 480 Watts / 950 VA |
Nominal Output Voltage | 230V |
Output Frequency (sync to mains) | 50/60 Hz +/-1 Hz |
| Line Interactive |
Waveform Type | Stepped approximation to a sinewave |

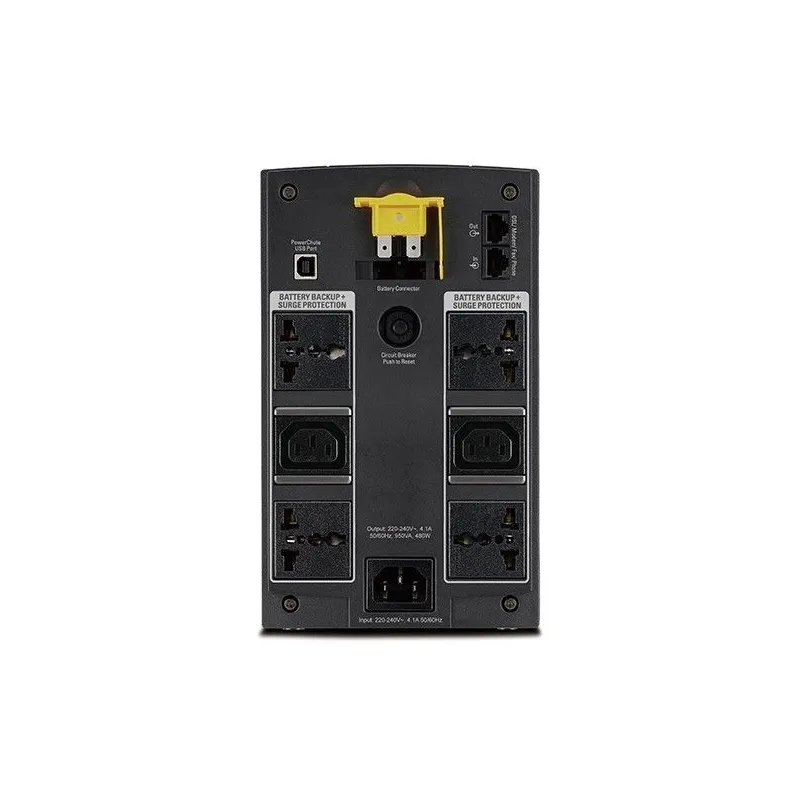

Output Connections | (2) IEC 320 C13 (Battery Backup) , (4) Universal Receptacle (Battery Backup) |
Nominal Input Voltage | 230V |
Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320 C14 , NEMA 5-15P |
Cord Length | 1.22 meters |
Input voltage range for main operations | 150 - 280 V |
Maximum Input Current | 4 A |
Input Breaker Capacity | 7 A |
Type of Input Protection Required | 3-pole breaker |
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Included Battery Modules | 1 |
Typical recharge time | 8 hour(s) |
Replacement Battery | RBC17 |
Interface Port(s) | USB |
Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rating | 273 Joules |
Data Line Protection | RJ-11 Modem/Fax protection |
Maximum Height | 215.0 mm |
Maximum Width | 130.0 mm |
Maximum Depth | 336.0 mm |
Net Weight | 8.0 kg |
Shipping Weight | 8.99 kg |
Shipping Height | 295.0 mm |
Shipping Width | 245.0 mm |
Shipping Depth | 440.0 mm |
Color | Black |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95 (non-condensing) % |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95 (non-condensing) % |
Storage Elevation | 0-9000 meters |
Audible noise at 1 meter from surface of unit | 45.000 dB |
Standard warranty | 2 years repair or replace |
RoHS | Compliant |
REACH | REACH: Contains No SVHCs |
