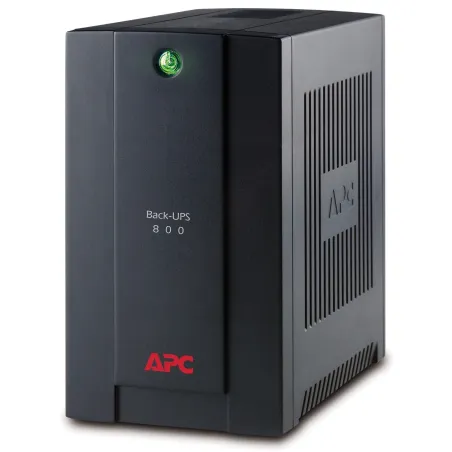

APC EASY UPS BX800LI-MS เครื่องสำรองไฟ 800VA/415W, AVR, Universal and IEC Sockets, 230V ประกัน 2 Yrs./Onsite Swap
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
APC BX800LI-MS User Guide
APC BX800LI-MS Datasheet
Product Description | APC EASY UPS BX800LI-MS เครื่องสำรองไฟ 800VA/415W, AVR, Universal and IEC Sockets, 230V ประกัน 2 Yrs./Onsite Swap |
|---|---|
Model Name | APC Back-UPS 800VA, 230V, AVR, Universal and IEC Sockets |
Includes | User Manual , Warranty card |
Standard Lead Time | Usually in Stock |
Output Power Capacity | 415 Watts / 800 VA |
Max Configurable Power (Watts) | 415 Watts / 800 VA |
Nominal Output Voltage | 230V |
Output Frequency (sync to mains) | 50/60 Hz +/-1 Hz |
Line Interactive | |
Waveform Type | Stepped approximation to a sinewave |

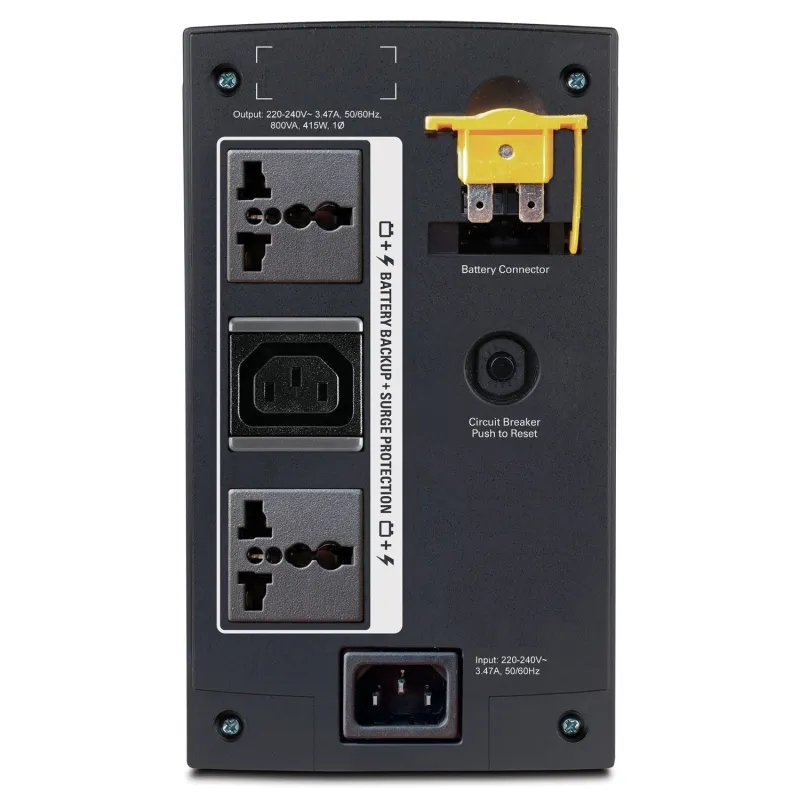

Output Connections | (1) IEC 320 C13 (Battery Backup) , (2) Universal Receptacle (Battery Backup) |
Nominal Input Voltage | 230V |
Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320 C14 , NEMA 5-15P |
Cord Length | 1.22 meters |
Input voltage range for main operations | 140 - 300 V |
Maximum Input Current | 7 A |
Input Breaker Capacity | 7 A |
Type of Input Protection Required | 3-pole breaker |
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Included Battery Modules | 1 |
Typical recharge time | 6 hour(s) |
Replacement Battery | APCRBC110 |
Control panel | LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rating | 273 Joules |
Maximum Height | 200.0 mm |
Maximum Width | 115.0 mm |
Maximum Depth | 256.0 mm |
Net Weight | 6.5 kg |
Shipping Weight | 6.7 kg |
Shipping Height | 290.0 mm |
Shipping Width | 205.0 mm |
Shipping Depth | 345.0 mm |
Color | Black |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95 % |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 40 °C |
Storage Relative Humidity | 0 - 95 % |
Storage Elevation | 0-9000 meters |
Audible noise at 1 meter from surface of unit | 45.000 dB |
Approvals | CE , WEEE |
Standard warranty | 2 years repair or replace |
RoHS | Compliant |
REACH | REACH: Contains No SVHCs |
