APC SMC1500I-2UC UPS Product Datasheet
APC SMC1500I-2UC UPS Product User Guide
Product Description |

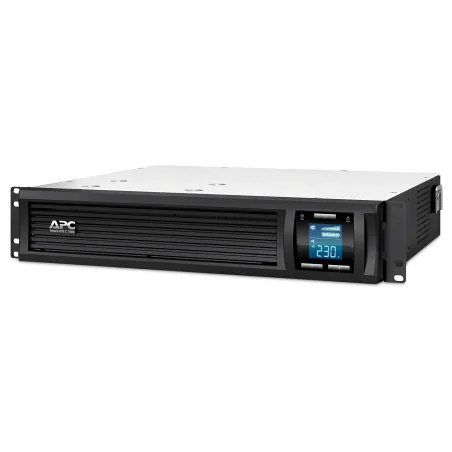

APC SMC1500I-2U เครื่องสำรองไฟ UPS APC Smart-UPS C 1500VA/900W LCD RM 2U 230V with SmartConnect ประกัน 3 Yrs./Onsite Swap |
---|---|
Model Name |
APC Smart-UPS C 1500VA LCD RM 2U 230V with SmartConnect |
Includes |
CD with software , Documentation CD , Installation guide , Rack Mounting brackets , USB cable |
Output Power Capacity |
900 Watts / 1500 VA |
Max Configurable Power (Watts) |
900 Watts / 1500 VA |
Nominal Output Voltage |
230V |
Output Voltage Distortion |
Less than 5% |
Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz |
Other Output Voltages |
220, 240V |
|
Line Interactive |
Waveform Type |
Sine wave |

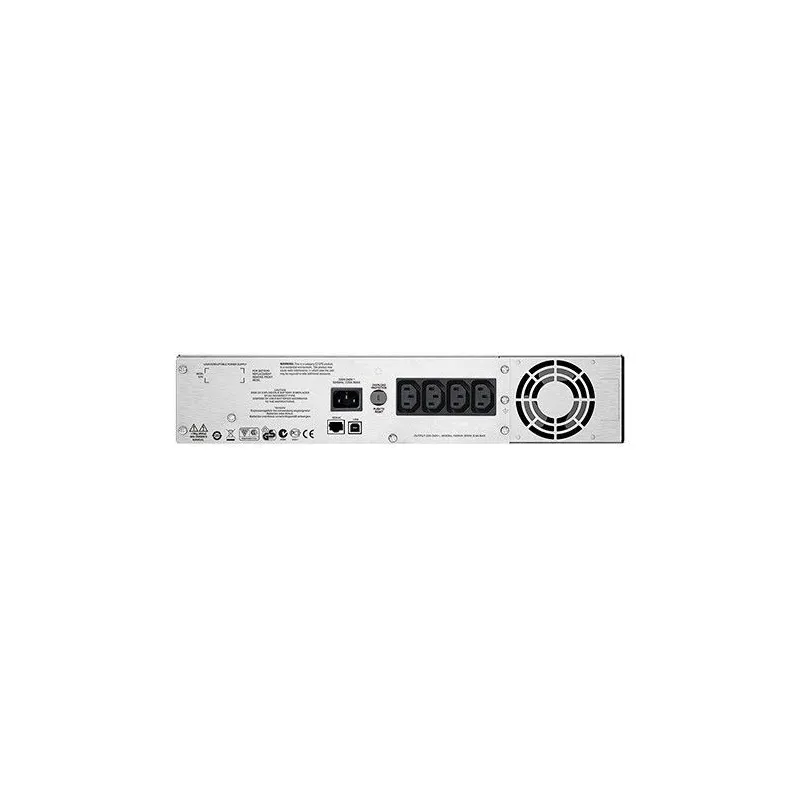

Output Connections |
(2) IEC Jumpers (Battery Backup) , (4) IEC 320 C13 (Battery Backup) |
Nominal Input Voltage |
230V |
Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections |
IEC-320 C14 |
Input voltage range for main operations |
180 - 287 V |
Input voltage adjustable range for mains operation |
170 - 300V |
Other Input Voltages |
220 , 240 |
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time |
3 hour(s) |
Replacement Battery |
APCRBC132 |
RBC Quantity |
1 |
Interface Port(s) |
RJ-45 Serial , USB |
Control panel |
Multi-function LCD status and control console |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge energy rating |
459 Joules |
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Maximum Height |
86.0 mm |
Maximum Width |
432.0 mm |
Maximum Depth |
477.0 mm |
Rack Height |
2 U |
Net Weight |
28.64 kg |
Shipping Weight |
31.91 kg |
Shipping Height |
251.0 mm |
Shipping Width |
594.0 mm |
Shipping Depth |
603.0 mm |
Color |
Black |
Units per Pallet |
16.0 |
Operating Environment |
0 - 40 °C |
Operating Relative Humidity |
0 - 95 % |
Operating Elevation |
0-3000 meters |
Storage Temperature |
-15 - 45 °C |
Storage Relative Humidity |
0 - 95 % |
Storage Elevation |
0-15000 meters |
Audible noise at 1 meter from surface of unit |
46.000 dB |
Online Thermal Dissipation |
90.000 BTU/hr |
Approvals |
C-tick , CE , CSA , GOST , UL 1778 , VDE |
RoHS |
Compliant |
REACH |
REACH: Contains SVHCs |
