APC SMC2000I UPS Product Datasheet
APC SMC2000I UPS Product User Guide
|
Product Description |

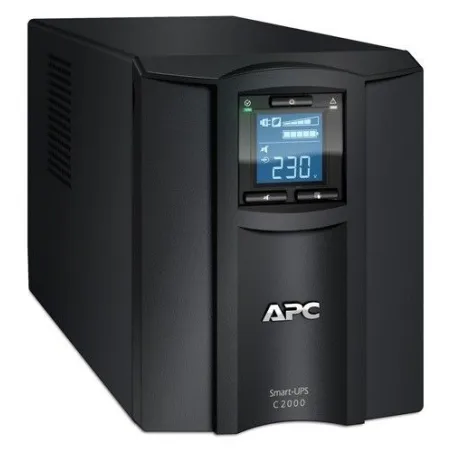

APC-SMC2000I เครื่องสำรองไฟ UPS APC Smart-UPS C 2000VA/1300W LCD 230V Line Interactive ประกัน 3 Yrs./Onsite Swap |
|---|---|
|
Model Name |
APC Smart-UPS C 2000VA LCD 230V |
|
Includes |
CD with software , Documentation CD , USB cable |
|
Output Power Capacity |
1300 Watts / 2000 VA |
|
Max Configurable Power (Watts) |
1300 Watts / 2000 VA |
|
Nominal Output Voltage |
230V |
|
Output Voltage Distortion |
Less than 5% at full load |
|
Output Frequency (sync to mains) |
50 Hz |
|
|
Line Interactive |
|
Waveform Type |
Sine wave |
|

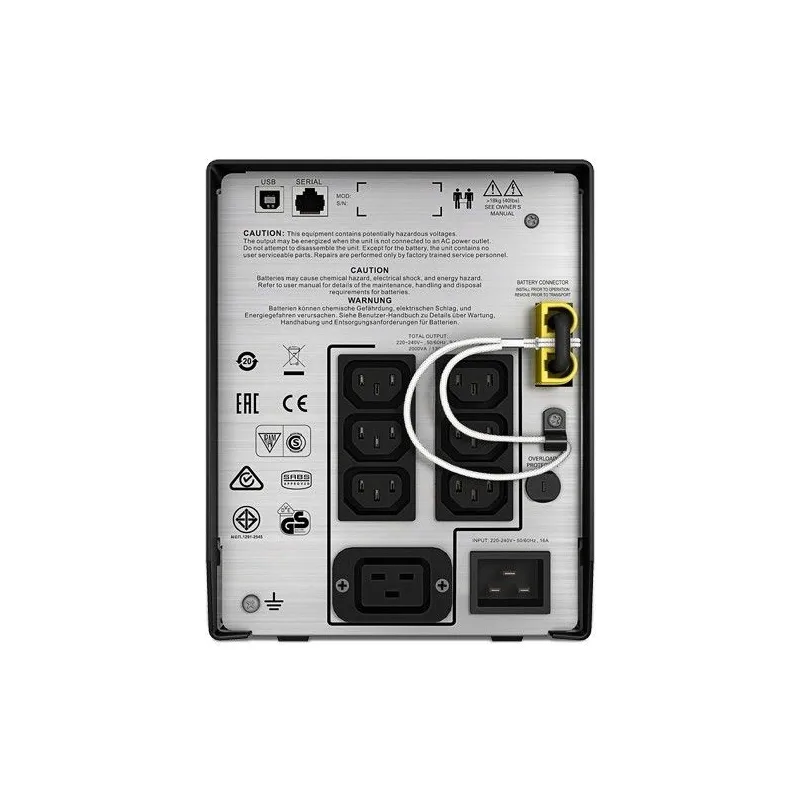

Output Connections |
(1) IEC 320 C19 (Battery Backup) , (6) IEC 320 C13 (Battery Backup) |
|
Nominal Input Voltage |
230V |
|
Input Frequency |
47 - 63 Hz |
|
Input Connections |
IEC-320 C20 |
|
Input voltage range for main operations |
180 - 287 V |
|
Input voltage adjustable range for mains operation |
170 - 300V |
|
Other Input Voltages |
220 , 240 |
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
3 hour(s) |
|
Replacement Battery |
APCRBC148 |
|
RBC Quantity |
1 |
|
Interface Port(s) |
USB |
|
Control panel |
Multi-function LCD status and control console |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
-- |
|
Surge energy rating |
300 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|
Maximum Height |
216.0 mm |
|
Maximum Width |
170.0 mm |
|
Maximum Depth |
440.0 mm |
|
Net Weight |
27.5 kg |
|
Shipping Weight |
30.0 kg |
|
Shipping Height |
330.0 mm |
|
Shipping Width |
370.0 mm |
|
Shipping Depth |
590.0 mm |
|
Color |
Black |
|
Units per Pallet |
24.0 |
|
Operating Environment |
0 - 40 °C |
|
Operating Relative Humidity |
0 - 95 % |
|
Operating Elevation |
0-3000 meters |
|
Storage Temperature |
-15 - 45 °C |
|
Storage Relative Humidity |
0 - 95 % |
|
Storage Elevation |
0-15000 meters |
|
Audible noise at 1 meter from surface of unit |
45.000 dB |
|
Online Thermal Dissipation |
135.000 BTU/hr |
|
Approvals |
C-tick , CE , GOST , SABS , VDE |
|
RoHS |
Compliant |
|
REACH |
REACH: Contains SVHCs |
