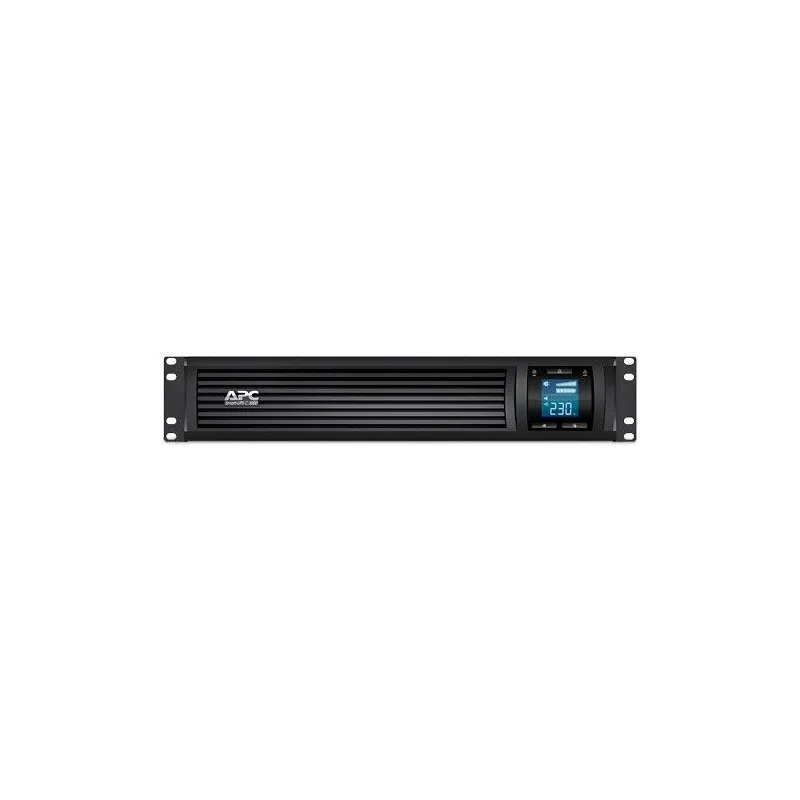

APC-SMC3000RMI2U เครื่องสำรองไฟ UPS APC Smart-UPS C 3000VA/2100W Rack mount LCD 230V Line Interactive, Sine wave ประกัน 3 Yrs./Onsite Swap
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
สเปกสินค้า (Quick Spec)
เอกสารอ้างอิงเฉพาะ
APC SMC3000RMI2U UPS Product Datasheet
APC SMC3000RMI2U UPS Product User Guide
Product Description | APC SMC3000RMI2U เครื่องสำรองไฟ UPS APC Smart-UPS C 3000VA/2100W Rack mount LCD 230V Line Interactive, Sine wave ประกัน 3 Yrs./Onsite Swap |
|---|---|
Model Name | APC Smart-UPS C 3000VA Rack mount LCD 230V |
Includes | CD with software , Documentation CD , Installation guide , Rack Mounting brackets , USB cable |
Output Power Capacity | 2100 Watts / 3000 VA |
Max Configurable Power (Watts) | 2100 Watts / 3000 VA |
Nominal Output Voltage | 230V |
Output Voltage Distortion | Less than 5% |
Output Frequency (sync to mains) | 50 Hz |
| Line Interactive |
Waveform Type | Sine wave |

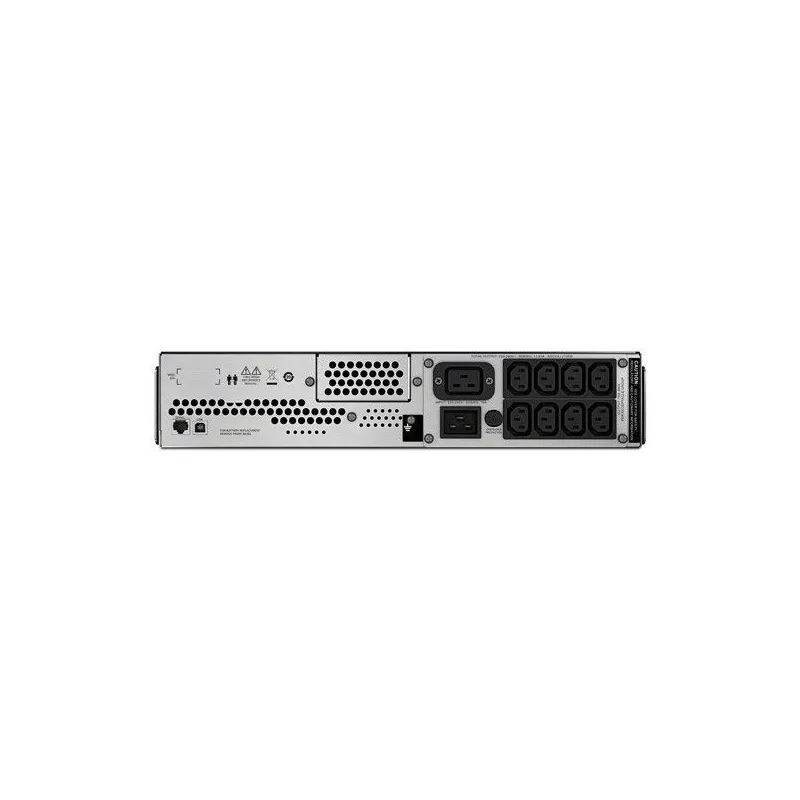

Output Connections | (1) IEC 320 C19 (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup) |
Nominal Input Voltage | 230V |
Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320 C20 |
Input voltage range for main operations | 180 - 287 V |
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 3 hour(s) |
Replacement Battery | APCRBC151 |
RBC Quantity | 1 |
Interface Port(s) | USB |
Control panel | Multi-function LCD status and control console |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) | -- |
Surge energy rating | 300 Joules |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Maximum Height | 89.0 mm |
Maximum Width | 480.0 mm |
Maximum Depth | 670.0 mm |
Rack Height | 2 U |
Net Weight | 41.0 kg |
Shipping Weight | 50.9 kg |
Shipping Height | 254.0 mm |
Shipping Width | 600.0 mm |
Shipping Depth | 980.0 mm |
Color | Black |
Units per Pallet | 16.0 |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95 % |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95 % |
Storage Elevation | 0-15000 meters |
Audible noise at 1 meter from surface of unit | 42.000 dB |
Online Thermal Dissipation | 81.000 BTU/hr |
Approvals | C-tick , CE , EAC , GOST , GS Mark , IRAM , SABS , VDE |
RoHS | Compliant |
REACH | REACH: Contains SVHCs |
