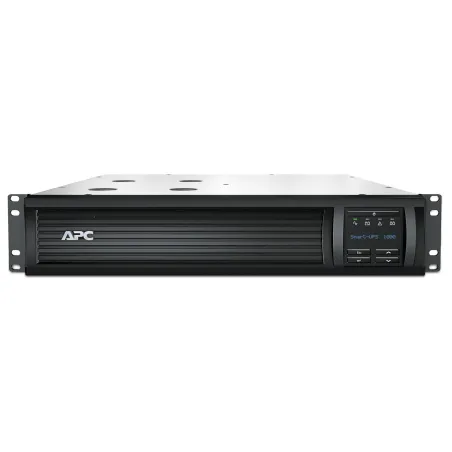

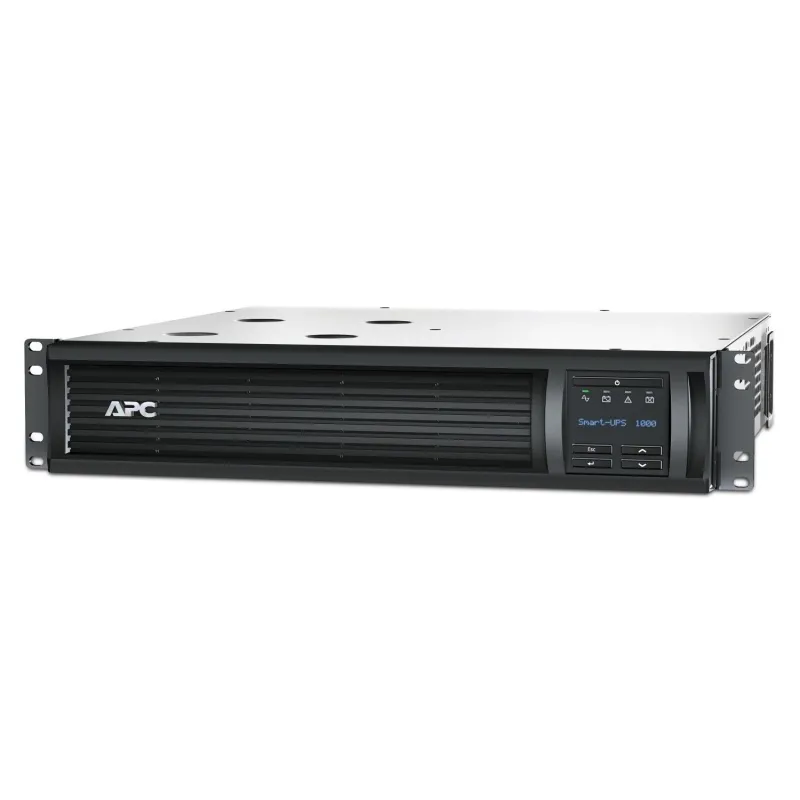

APC SMT1000RMI2UC เครื่องสำรองไฟ UPS APC Smart-UPS 1000VA/700W LCD RM 2U 230V with SmartConnect, Line Interactive, Sine wave ประกัน 3 Yrs./Onsite Swap
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
เอกสารอ้างอิงเฉพาะ
APC SMT1000RMI2UC UPS Product Datasheet
APC SMT1000RMI2UC UPS Product User Guide
Product Description | APC SMT1000RMI2UC เครื่องสำรองไฟ UPS APC Smart-UPS 1000VA/700W LCD RM 2U 230V with SmartConnect, Line Interactive, Sine wave ประกัน 3 Yrs./Onsite Swap |
|---|---|
Model Name | APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect |
Includes | CD with software , Documentation CD , Installation guide , Rack Mounting support rails , USB cable |
Output Power Capacity | 700 Watts / 1000 VA |
Max Configurable Power (Watts) | 700 Watts / 1000 VA |
Nominal Output Voltage | 230V |
Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
Output Voltage Distortion | Less than 5% |
Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
Other Output Voltages | 220, 240V |
Line Interactive | |
Waveform Type | Sine wave |

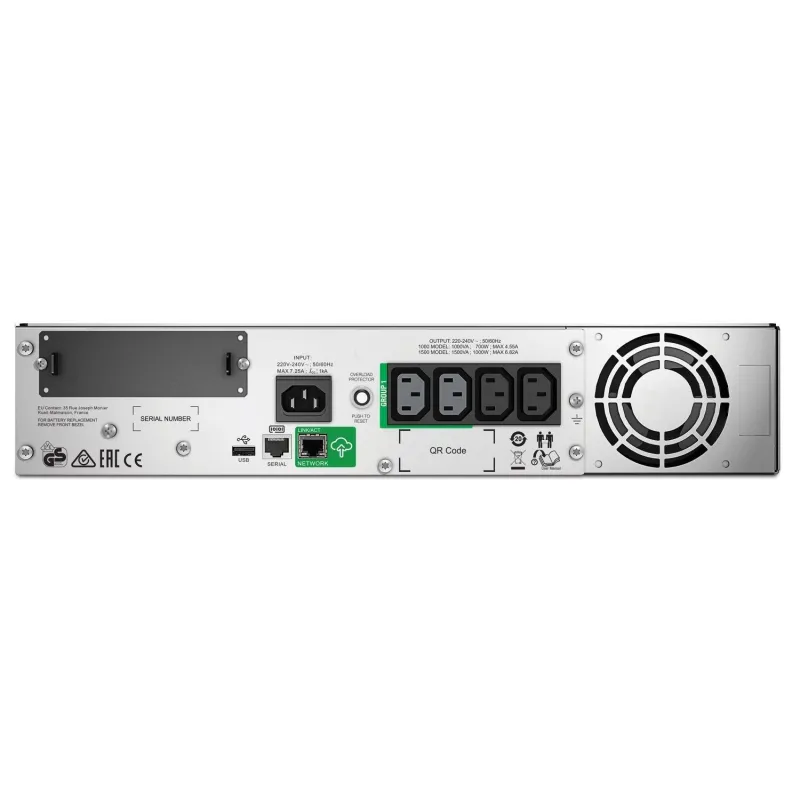

Output Connections | (2) IEC Jumpers (Battery Backup) , (4) IEC 320 C13 (Battery Backup) |
Nominal Input Voltage | 230V |
Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320 C14 |
Input voltage range for main operations | 160 - 286 V |
Input voltage adjustable range for mains operation | 151 - 302V |
Other Input Voltages | 220 , 240 |
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 3 hour(s) |
RBC Quantity | 1 |
Interface Port(s) | RJ-45 Serial , SmartSlot , USB |
Available SmartSlot™ Interface Quantity | 1 |
Control panel | Multi-function LCD status and control console |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) | Optional |
Surge energy rating | 459 Joules |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Maximum Height | 86.0 mm |
Maximum Width | 432.0 mm |
Maximum Depth | 477.0 mm |
Rack Height | 2 U |
Net Weight | 28.18 kg |
Shipping Weight | 31.45 kg |
Shipping Height | 251.0 mm |
Shipping Width | 594.0 mm |
Shipping Depth | 603.0 mm |
Color | Black |
Units per Pallet | 8.0 |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95 % |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95 % |
Storage Elevation | 0-15000 meters |
Audible noise at 1 meter from surface of unit | 45.000 dB |
Online Thermal Dissipation | 56.000 BTU/hr |
Approvals | CSA , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , RCM , UL 1778 , VDE |
RoHS | Compliant |
REACH | REACH: Contains SVHCs |
