APC SMT2200IC UPS Product Datasheet
APC SMT2200IC UPS Product User Guide
|
Product Description |

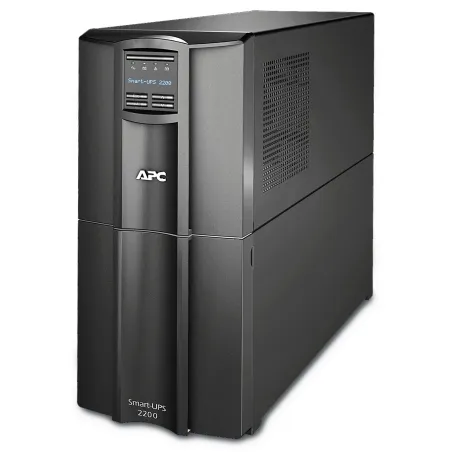

APC SMT2200IC เครื่องสำรองไฟ UPS APC Smart-UPS 2200VA/1980W LCD 230V with SmartConnect, Line Interactive, Sine wave ประกัน 3 Yrs./Onsite Swap |
|---|---|
|
Model Name |
APC Smart-UPS 2200VA LCD 230V with SmartConnect |
|
Includes |
CD with software , Documentation CD , USB cable |
|
Output Power Capacity |
1980 Watts / 2200 VA |
|
Max Configurable Power (Watts) |
1980 Watts / 2200 VA |
|
Nominal Output Voltage |
230V |
|
Output Voltage Note |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Output Voltage Distortion |
Less than 5% |
|
Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz |
|
Other Output Voltages |
220, 240V |
|
|
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Connections |
(1) IEC 320 C19 (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup) |
|
Nominal Input Voltage |
230V |
|
Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input Connections |
British BS1363A , IEC-320 C20 , Schuko CEE 7 / EU1-16P |
|
Input voltage range for main operations |
160 - 286 V |
|
Input voltage adjustable range for mains operation |
151 - 302V |
|
Other Input Voltages |
220 , 240 |
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
3 hour(s) |
|
Replacement Battery |
RBC55 |
|
RBC Quantity |
1 |
|
Interface Port(s) |
RJ-45 Serial , SmartSlot , USB |
|
Available SmartSlot™ Interface Quantity |
1 |
|
Control panel |
Multi-function LCD status and control console |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Yes |
|
Surge energy rating |
365 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|
Maximum Height |
435.0 mm |
|
Maximum Width |
197.0 mm |
|
Maximum Depth |
544.0 mm |
|
Net Weight |
48.8 kg |
|
Shipping Weight |
61.9 kg |
|
Shipping Height |
699.0 mm |
|
Shipping Width |
381.0 mm |
|
Shipping Depth |
762.0 mm |
|
Color |
Black |
|
Units per Pallet |
9.0 |
|
Operating Environment |
0 - 40 °C |
|
Operating Relative Humidity |
0 - 95 % |
|
Operating Elevation |
0-3000 meters |
|
Storage Temperature |
-15 - 45 °C |
|
Storage Relative Humidity |
0 - 95 % |
|
Storage Elevation |
0-15000 meters |
|
Audible noise at 1 meter from surface of unit |
45.000 dB |
|
Online Thermal Dissipation |
275.000 BTU/hr |
|
Approvals |
CE , CSA , EAC , EN/IEC 62040-1 , EN/IEC 62040-2 , RCM , VDE |
|
RoHS |
Compliant |
|
REACH |
REACH: Contains SVHCs |
