แบรนด์: APC
APC SRV1KI UPS Product Datasheet
APC SRV1KI UPS Product User Guide
Product Description |

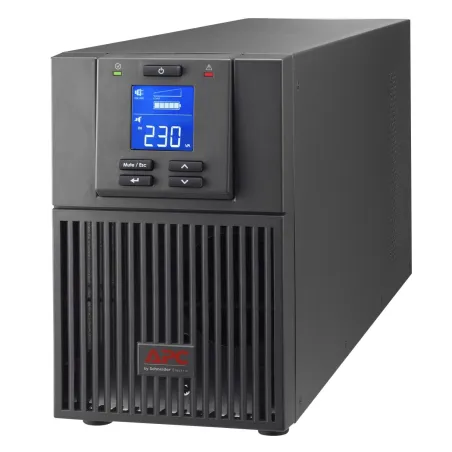

APC SRV1KI เครื่องสำรองไฟ UPS APC Easy UPS SRV 1000VA/800W 230V, Double Conversion Online, Sine wave ประกัน 2 Yrs./Onsite Swap |
---|---|
Model Name |
APC Easy UPS SRV 1000VA 230V |
Includes |
CD with software , USB cable , User Manual |
Output Power Capacity |
800 Watts / 1000 VA |
Max Configurable Power (Watts) |
800 Watts / 1000 VA |
Nominal Output Voltage |
230V |
Output Voltage Distortion |
3% |
Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz |
Other Output Voltages |
220, 240V |
|
Double Conversion Online |
Waveform Type |
Sine wave |
Output Connections |
(3) IEC 320 C13 (Battery Backup) |
Nominal Input Voltage |
230V |
Input Frequency |
40 - 70 Hz |
Input Connections |
IEC-320 C14 |
Input voltage range for main operations |
160 - 280 V |
Other Input Voltages |
220 , 240 |
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Included Battery Modules |
1 |
Typical recharge time |
4 hour(s) |
Interface Port(s) |
USB |
Control panel |
Multi-function LCD status and control console |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rating |
600 Joules |
Maximum Height |
223.0 mm |
Maximum Width |
145.0 mm |
Maximum Depth |
288.0 mm |
Net Weight |
9.31 kg |
Shipping Weight |
10.6 kg |
Shipping Height |
330.0 mm |
Shipping Width |
235.0 mm |
Shipping Depth |
365.0 mm |
Operating Environment |
0 - 40 °C |
Operating Relative Humidity |
0 - 95 (non-condensing) % |
Operating Elevation |
0-3000 meters |
Storage Temperature |
-20 - 50 °C |
Storage Relative Humidity |
0 - 95 (non-condensing) % |
Storage Elevation |
0-14763.6 meters |
Audible noise at 1 meter from surface of unit |
50.000 dB |
Online Thermal Dissipation |
372.000 BTU/hr |
Approvals |
CE , IEC 62040-1-1 , IEC 62040-1-2 |
RoHS |
Compliant |
REACH |
REACH: Contains SVHCs |
