Product Description |

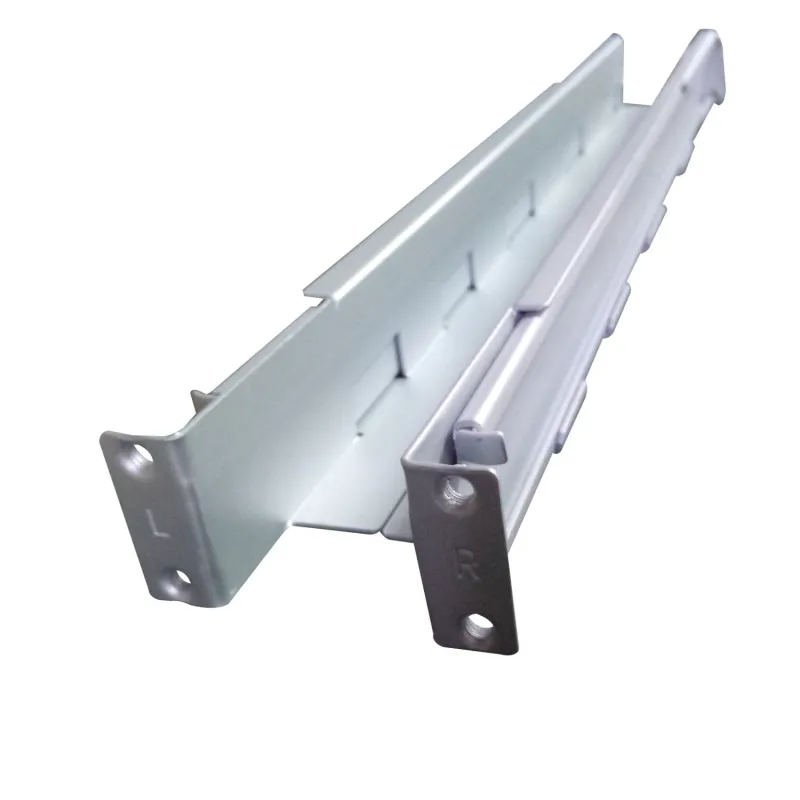

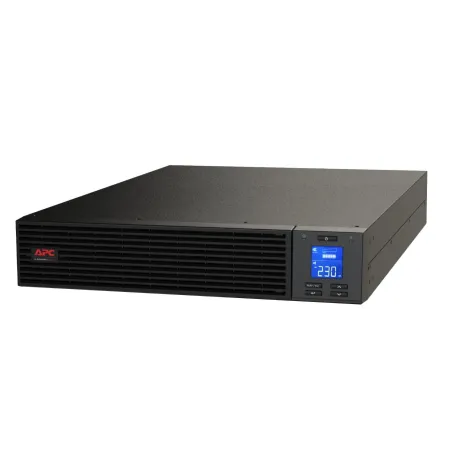

APC SRV1KRIRK เครื่องสำรองไฟ UPS APC Easy UPS On-Line SRV RM 1000VA/800W 230V with Rail Kit, Double Conversion Online, Sine wave ประกัน 2 Yrs./Onsite Swap |
|---|---|
|
Model Name |
APC Easy UPS On-Line SRV RM 1000VA 230V |
|
Includes |
CD with software , USB cable , User Manual |
|
Output Power Capacity |
800 Watts / 1000 VA |
|
Max Configurable Power (Watts) |
800 Watts / 1000 VA |
|
Nominal Output Voltage |
230V |
|
Output Voltage Distortion |
3% |
|
Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz |
|
Other Output Voltages |
220, 240V |
|
Crest Factor |
3 : 1 |
|
|
Double Conversion Online |
|
Waveform Type |
Sine wave |
|

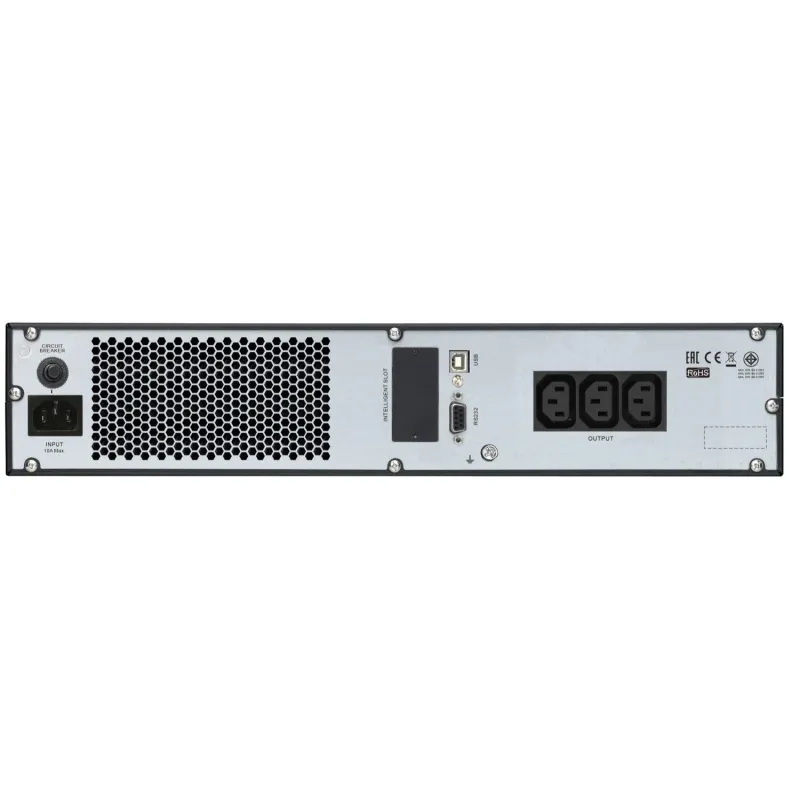

Output Connections |
(3) IEC 320 C13 (Battery Backup) |
|
Nominal Input Voltage |
230V |
|
Input Frequency |
40 - 70 Hz |
|
Input Connections |
IEC-320 C14 |
|
Input voltage range for main operations |
160 - 280 V |
|
Other Input Voltages |
220 , 240 |
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
4 hour(s) |
|

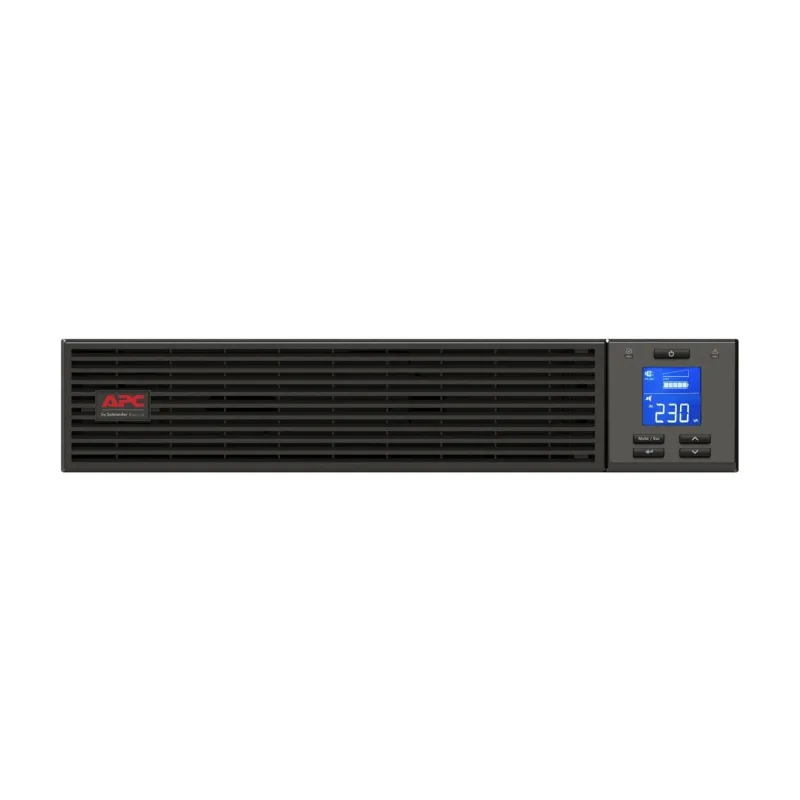

Control panel |
Multi-function LCD status and control console |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Surge energy rating |
600 Joules |
|
Maximum Height |
86.0 mm |
|
Maximum Width |
437.0 mm |
|
Maximum Depth |
312.0 mm |
|
Net Weight |
11.0 kg |
|
Shipping Weight |
13.1 kg |
|
Shipping Height |
218.0 mm |
|
Shipping Width |
455.0 mm |
|
Shipping Depth |
551.0 mm |
|
Operating Environment |
0 - 40 °C |
|
Operating Relative Humidity |
0 - 95 (non-condensing) % |
|
Operating Elevation |
0-3000 meters |
|
Storage Temperature |
-20 - 50 °C |
|
Storage Relative Humidity |
0 - 95 (non-condensing) % |
|
Storage Elevation |
0-14763.6 meters |
|
Audible noise at 1 meter from surface of unit |
0.000 dB |
|
Approvals |
CE , IEC 62040-1-1 , IEC 62040-1-2 |
|
RoHS |
Compliant |
|
REACH |
REACH: Contains No SVHCs |
