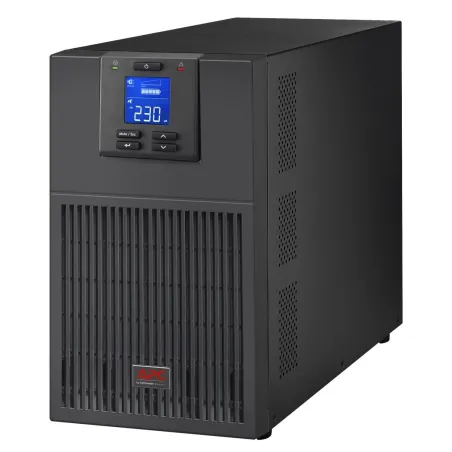

APC SRV1KI เครื่องสำรองไฟ UPS APC Easy UPS SRV 3000VA/2400W 230V, Double Conversion Online, Sine wave ประกัน 2 Yrs./Onsite Swap
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
APC SRV3KI UPS Product Datasheet
APC SRV3KI UPS Product User Guide
Product Description | APC SRV3KI เครื่องสำรองไฟ UPS APC Easy UPS SRV 3000VA/2400W 230V, Double Conversion Online, Sine wave ประกัน 2 Yrs./Onsite Swap |
|---|---|
Model Name | APC Easy UPS SRV 3000VA 230V |
Includes | CD with software , USB cable , User Manual |
Output Power Capacity | 2400 Watts / 3000 VA |
Max Configurable Power (Watts) | 2400 Watts / 3000 VA |
Nominal Output Voltage | 230V |
Output Frequency (sync to mains) | 50/60Hz +/- 3 Hz |
Other Output Voltages | 220, 240V |
Crest Factor | 3 : 1 |
| Double Conversion Online |
Waveform Type | Sine wave |

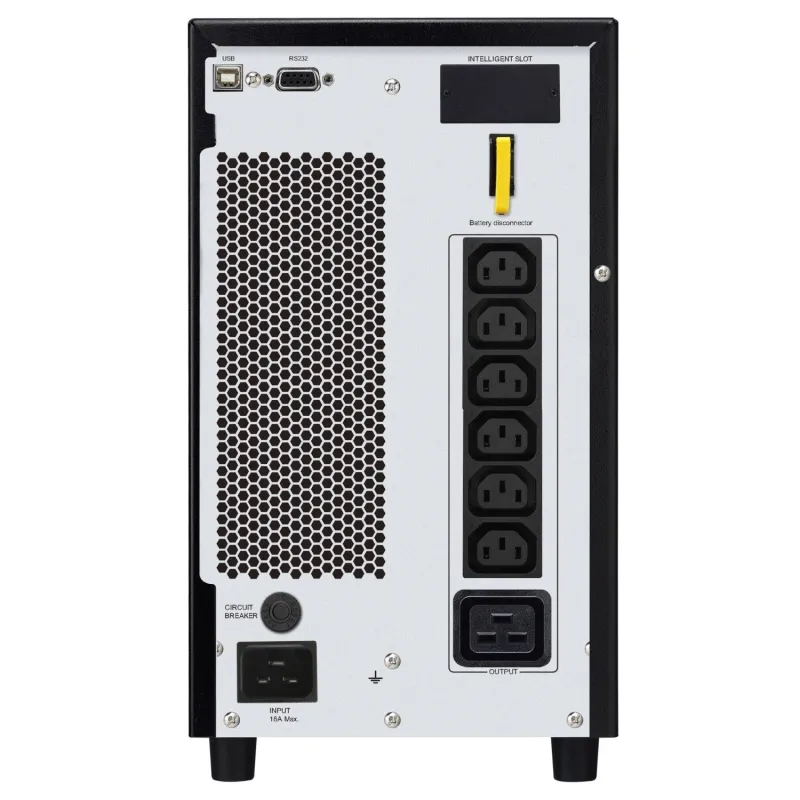

Output Connections | (1) IEC 320 C19 (Battery Backup) , (6) IEC 320 C13 (Battery Backup) |
Nominal Input Voltage | 230V |
Input Frequency | 40 - 70 Hz |
Input Connections | IEC-320 C14 |
Input voltage range for main operations | 160 - 280 V |
Other Input Voltages | 220 , 240 |
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 4 hour(s) |
Control panel | Multi-function LCD status and control console |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge energy rating | 600 Joules |
Maximum Height | 336.0 mm |
Maximum Width | 190.0 mm |
Maximum Depth | 425.0 mm |
Net Weight | 26.8 kg |
Shipping Weight | 29.0 kg |
Shipping Height | 465.0 mm |
Shipping Width | 325.0 mm |
Shipping Depth | 565.0 mm |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95 (non-condensing) % |
Operating Elevation | 0-3000 meters |
Storage Temperature | -20 - 50 °C |
Storage Relative Humidity | 0 - 95 (non-condensing) % |
Storage Elevation | 0-14763.6 meters |
Audible noise at 1 meter from surface of unit | 0.000 dB |
Approvals | CE , IEC 62040-1-1 , IEC 62040-1-2 |
RoHS | Compliant |
REACH | REACH: Contains No SVHCs |
