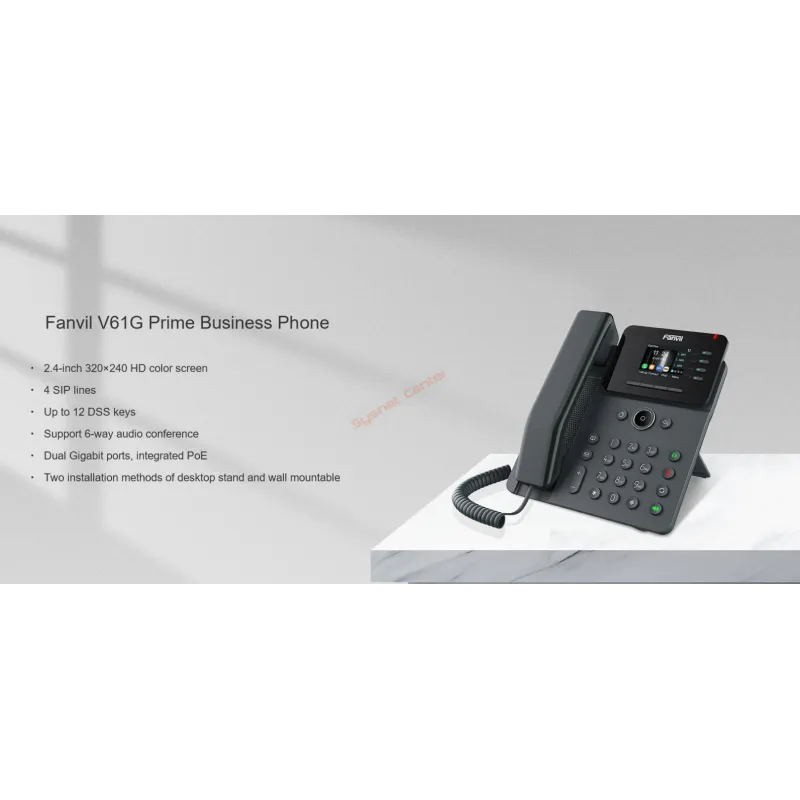

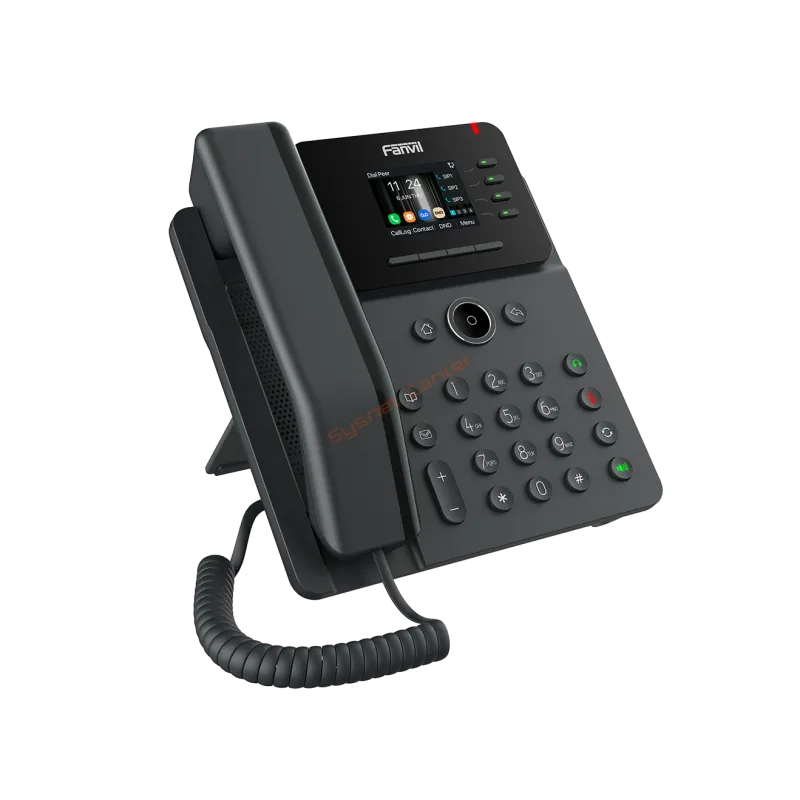

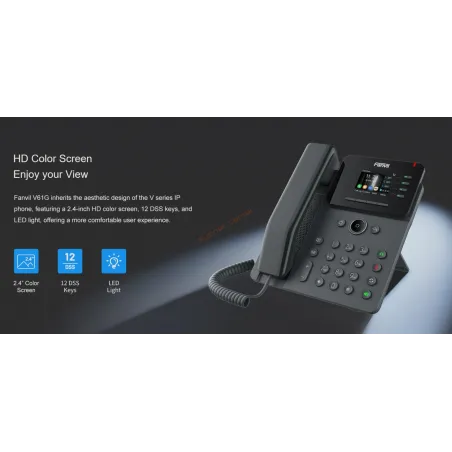

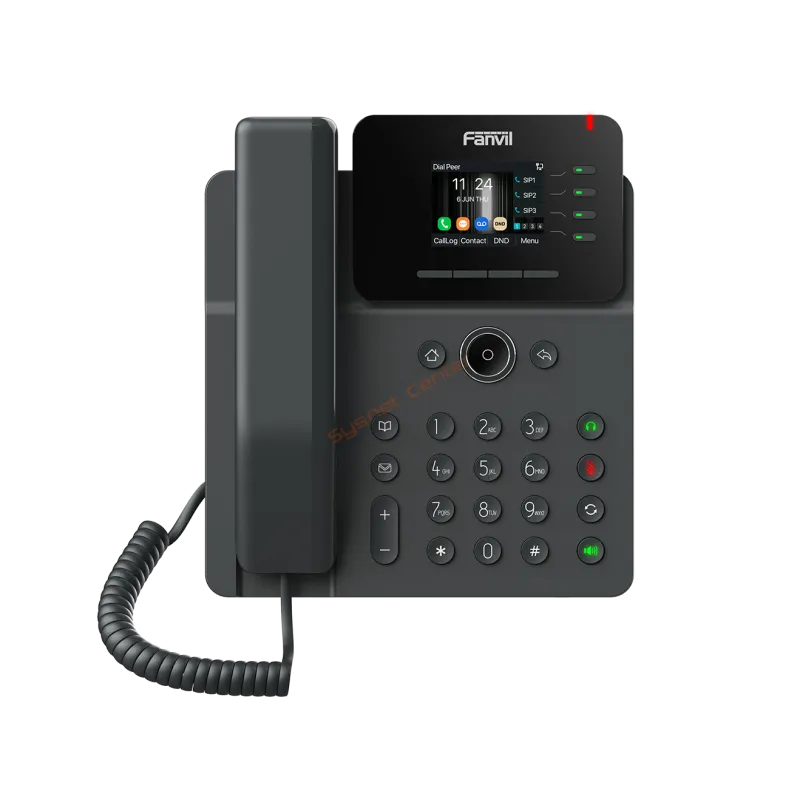

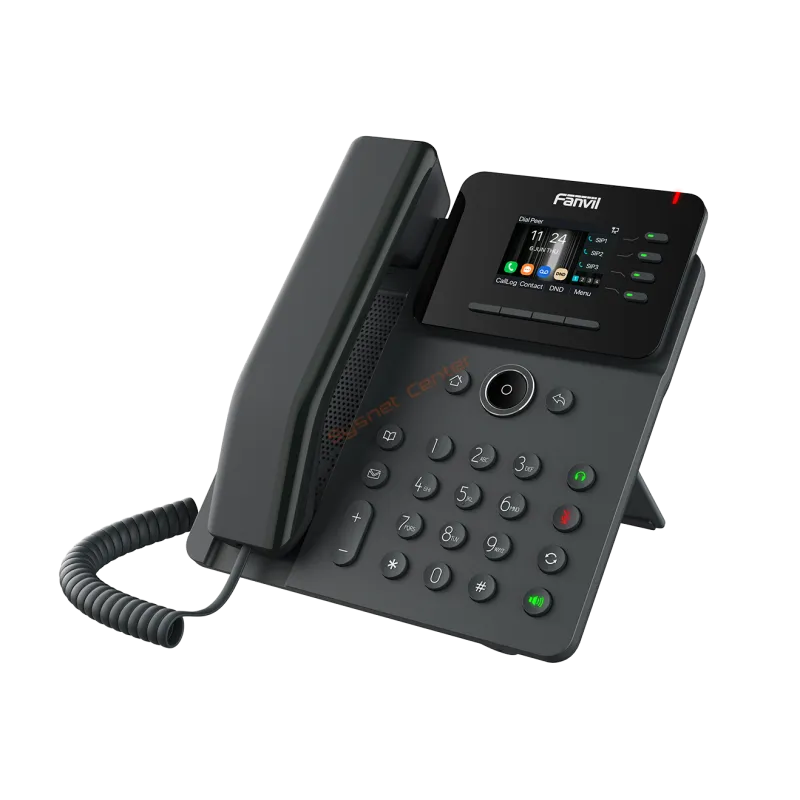

FANVIL V61G Prime Business Phone Datasheet
Product Specification |
Overview | Fanvil V61G Prime Business Phone IP-Phone 4 คู่สาย (4 SIP Account) HD Voice, หน้าจอสี LCD Color 2.4 นิ้ว (320x240), 2 Port Lan รองรับ PoE |
Generic | • 2.4-inch (320x240) color screen
• 4SIPlines
• HDvoice
• DualGigabit ports, PoE enabled
• Intelligent DSS keys
• Handset/hands-free / headset mode
• DesktopStand/ Wall-mounted
(optional)
• Optional external power supply
• HandsetwithHall-effect Sensor Switch |
Call Features | • Callout/ Answer/ Reject
• Mute/Unmute(Microphone)
• CallHold / Resume/Call Waiting
• Intercom
• Caller ID Display
• SpeedDial
• AnonymousCall(Hide Caller ID)/Ban
Anonymous call
• CallForward(Always/Busy/No Answer)
• CallTransfer (Attended/Unattended)
• CallParking/Pick-up (Depending on
server)
• Redial/Predial
• Call Back
• Do-Not-Disturb(DND)/Timed DND
• Auto-Answering
• SIPSMS
• VoiceMessage(On server)
• 6-wayAudioConference
• Hot Line • HotDesking
• DirectIP call without SIP proxy
• FuzzySearchCall
• ActionPlan
• DialPlan
• Intercom
• CallCompletion/Auto Redial
• PrimaryandBackupSIPServers
• DefaultExt Line
• Multicast |
Phone Features | • LocalPhonebook(1000 entries)
• RemotePhonebook(XML/LDAP)
• Calllogs (In/out/missed, 1000 entries)
• BlockedList/Allowed List
• Screensaver
• VoiceMessageWaiting Indication
(VMWI)
• Programmable DSS/Soft keys
• NetworkTimeSynchronization
• SupportPoly wireless headset (Through
Poly APD-80 EHS Cable)
• SupportJabrawireless headset
(Through Fanvil EHS20 EHS Cable)
• SupportRecording (Through Server)
• Action URL/Active URI
• XMLBrowser
• CustomizeBackground
• CustomizeBoot Logo
• uaCSTA
• CustomizeIncoming Call Ringtone
• timePlan(timed reboot/timed
forward/timed upgrade/timed config)
• HiddenDTMF
• RingFromHeadset
• CustomizeDSS icon
• CustomizeDSS LEDlights
• CustomizeBLF
• CustomizeUI Display |
Audio | - •HDVoice: HDhandset,HDspeaker
• HAChandset
• WidebandADC/DAC16KHzSampling
• NarrowbandCodec: G.711a/u, G.723.1,
G.726, G.729, G.729A, G.729B, G.729AB,
iLBC
• WidebandCodec:G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• VoiceActivity Detection (VAD) / Comfort
Noise Generation (CNG) / Background
Noise Estimation (BNE) / Noise Reduction
(NR) / Automatic Gain Control (AGC)
• PacketLoss Concealment (PLC)
• DynamicAdaptiveJitter Buffer
• DTMF:In-band,Out-of-Band (RFC2833/ SIP
INFO)
• VQMvoicequality monitorin
|
Networking | • Physical: 10/100/1000 Mbps Ethernet, dual
bridged port for PC bypass
• IPMode:IPv4/IPv6/IPv4&IPv6
• IPConfiguration: Static IP / DHCP / PPPoE
• NetworkAccessControl: 802.1x
• VPN:L2TP/OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)
• DNS-SRV(RFC3263)
• SupportRedundantServers
• Agent
• HttpsMutualAuthentication |
Protocols | • SIPv1(RFC2543)v2(RFC3261)
• UDP/TCP/TLS
• RTP/RTCP/SRTP（Optional/Compulsory）
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• 802.1p/Q
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069 • AES128&AES256 |
Deployment & Maintenance | • Auto-Provisioning via
FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
• Screenshot
• WebManagementPortal
• Web-basedPacketDump
• Configuration Export / Import
• PhonebookImport/Export
• FirmwareUpgrade
• Syslog
• NetworkFirewall |
Physical Specifications | • 4Soft-keys
• 4Navigation keys, 1 OK key
• 1Returnkey,1 Homekey
• 12StandardPhoneDigits keys
• 2VolumeControlkeys, Up/Down
• 1Hands-free key
• Handset(RJ9) x1
• StandardRJ9 Handset Wire x1
• 1.5MCAT.5EEthernet Cable x1
• DesktopStandx1
• StatusIndicator Light x1 (Red)
• RJ9Portx2:Handset x1, Headset x1
• RJ45Portx2: Networkx1,PCx1 (Bridged to
Network)
• Security Slot x1
• Power:DC5V/1Aor PoE
• POEcomplieswith the IEEE802.3af
standard
• Poweradapter:
Input:100-240VAC~50/60Hz
Output:5V/1A
• PowerConsumption (Adapter):
1.33~3.00W
• PowerConsumption (PoE): 1.90~4.60W
• WorkingTemperature:0~45℃
• WorkingHumidity: 10~95%
• Installation:
• DesktopStand
• Wallmountable (optional)
• Color: Dark Grey
• Qty/CTN:10PCS
• N.W/CTN:9.56kg
• G.W/CTN:10.26kg
• DeviceDimensions:
• DesktopStand (40°):
191.8 x 164.5 x 174.2 mm
• DesktopStand (45°):
191.8 x 154.5 x 181.9 mm
• Wallmountable:
191.8 x 91.6 x 215.6 mm
• GiftBoxDimensions: 295 x 222 x56 mm
• OuterCTNDimensions:
464 x 305x315mm(10PCS |
รับประกัน | 2 ปี |
|
