Product Overview
|

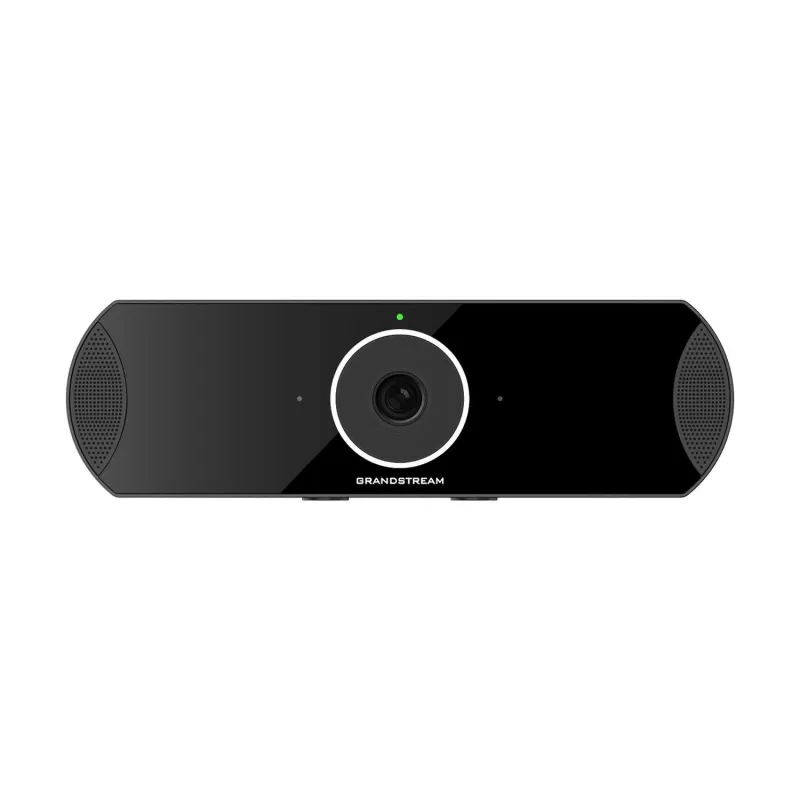

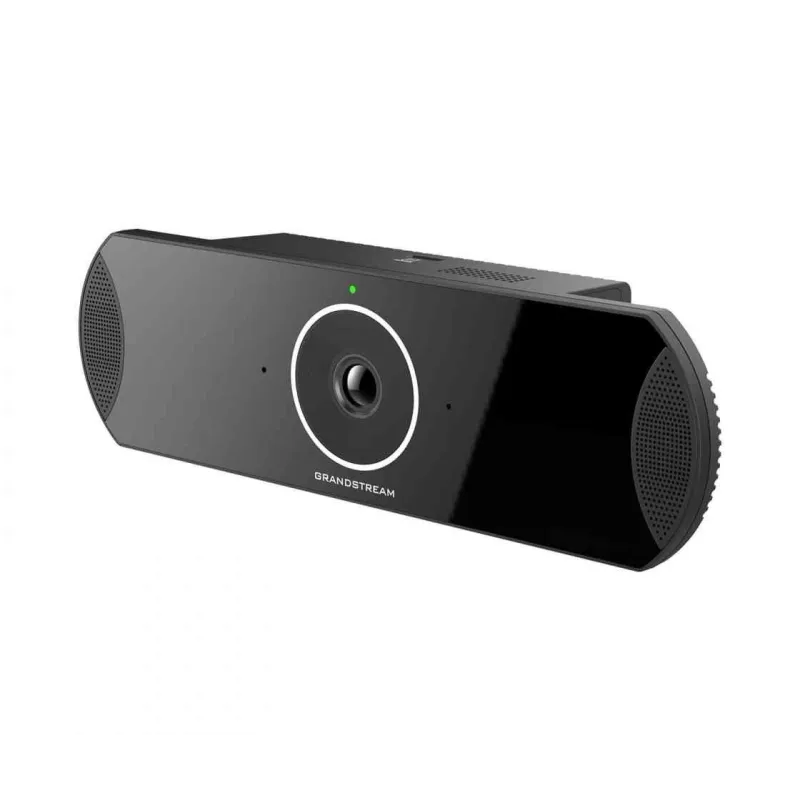

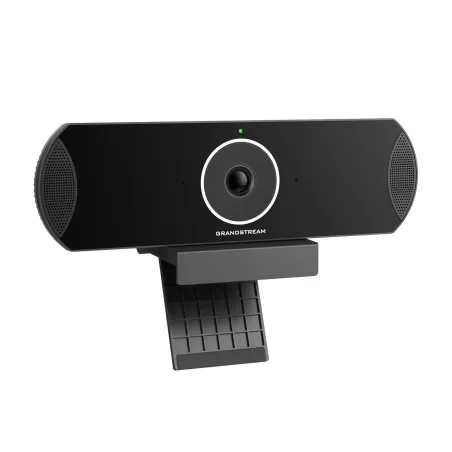

GrandStream GVC-3200 SIP/Android Video Conference 1080p Full-HD 9-Way video conferences, รองรับ Protocol SIPและ H.323, 3 Monitor outputs HDMI, PTZ camera 12x Zoom
|
|
Protocols / Standards
|
SIP RFC3261, BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069 (pending), 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, H.323
|
|
Camera
|
1/2.3“, 16 Megapixel CMOS, 4K (2160p) Output
|
|
Lens
|
90?field of view, ePTZ (3x digital zoom)
|
|
Network Interface
|
1? RJ4510/ 100/ 1000 Mbps
|
|
WiFi
|
Integrated dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
|
|
Bluetooth
|
Integrated Bluetooth 4.0 + EDR
|
|
Video Outputs
|
2x HDMI 1.4 up to 4K (2160p) with CEC
|
|
Video Input
|
1x HDMI 1.4 with resolution up to 1080p
|
|
MIC/Speaker
|
Built-in 4x MIC array
|
|
Remote Control
|
Bluetooth and infrared remote control with multi-touch touchpad
|
|
Auxiliary Ports
|
2x USB 2.0, micro-SD, Reset
|
|
Voice Codecs
|
Support for G.711?/a, G.722 (wide-band), iLBC, Opus , G.722.1, G.722.1c ,G729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
|
|
Video Codecs
|
H.264 BP/MP/HP, video resolution up to 4K (2160p), frame rate up to 30 fps, bitrate up to 16Mbps
|
|
Video Resolutions
|
4K (2160p@30fps) from 4096Kbps, 1080p@30fps from 1024Kbps, 720p@30fps from 512 Kbps, 4SIF/4CIF from
128 Kbps, SIF/CIF from 64 Kbps
|
|
4K Capability
|
Experience sharp video quality of up to 4K resolution*
1. When the GVC3210 is using 4K resolution during video call, EPTZ is not supported. The GVC3210 supports 90? field of view. Please install GVC3210 at the position that suits the best conference view if you plan to use 4K resolution.
2. When the GVC3210 is using 4K resolution, local recording is not supported.
3. When the GVC3210 is using 4K resolution, HDMI Out
Port 2 is not supported. Users can only use HDMI Out
Port 1 for one display.
|
|
Content Resolutions (screen sharing)
|
Input: VGA, SVGA, XGA, 1280?600, WXGA, WXGA, SXGA, 1440?900, XGA+, 720p, 1600?1200, 1080p (HDMI), up to 60fps
Encoding: 800?600, 1024?768, 1280?1024, 1280?720, 1920?1080
Output: 720p, 1080p
|
|
Dual-Stream
|
BFCP, video resolution (up to 4K 2160p@30fps) + content resolution (up to 1080p@15fps)
|
|
Audio Features
|
AEC, ANS, AGC, Noise Shield, PLC, CNG/VAD
|
|
Video Features
|
FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption
|
|
Telephony Features
|
Hold, forward (unconditional/no-answer/busy), downloadable phone book (XML, LDAP), call waiting, call history, flexible dial plan, personalized music ringtones, server redundancy & fail-over
|
|
Sample Applications
|
Skype, Google Hangouts, Microsoft Lync, Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development
|
|
Applications Deployment
|
Allow various Android operation system 6.0 compliant applications to be developed, downloaded and run in the embedded device with provisioning control
|
|
QoS
|
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
|
|
Security
|
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
|
|
Multi-Language
|
English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and more
|
|
Upgrade/Provisioning
|
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using AES encrypted XML configuration file
|
|
Power & Green Energy Efficiency
|
Input: 100~240Vac 50/60hz; output: 12V/2A 24W
|
|
Package Content
|
GVC3210 video conference endpoint, remote control, 4 AAA batteries, universal power supply, network cable (1.5 meters), 2 HDMI cables (1.5-meter and 5-meter), lens cleaning cloth, mounting kit, quick installation guide, GPL license
|
|
Dimensions and Weight
|
80mm (H) x 46.5mm (W) x 270mm (L)
|
|
Temperature and Humidity
|
Operation: 0?C to 40?C, Storage: -10?C to 60?C, Humidity: 10% to 90% Non-condensing
|
|
Compliance
|
FCC: FCC Part 15B; FCC Part 15C; FCC Part 15E; UL 60950 (power adapter)
CE: EN 55032; EN 55024; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301 489-1/17;EN 300 328; EN 301 893;
EN 62311; EN 62479; RoHS RCM: AS/NZS CISPR 32/24; AS/NZS 60950.1; AS/NZS 4268; ANATEL
|
|
รับประกัน
|
1 ปี
|
