Product Specification
|
|
Overview
|

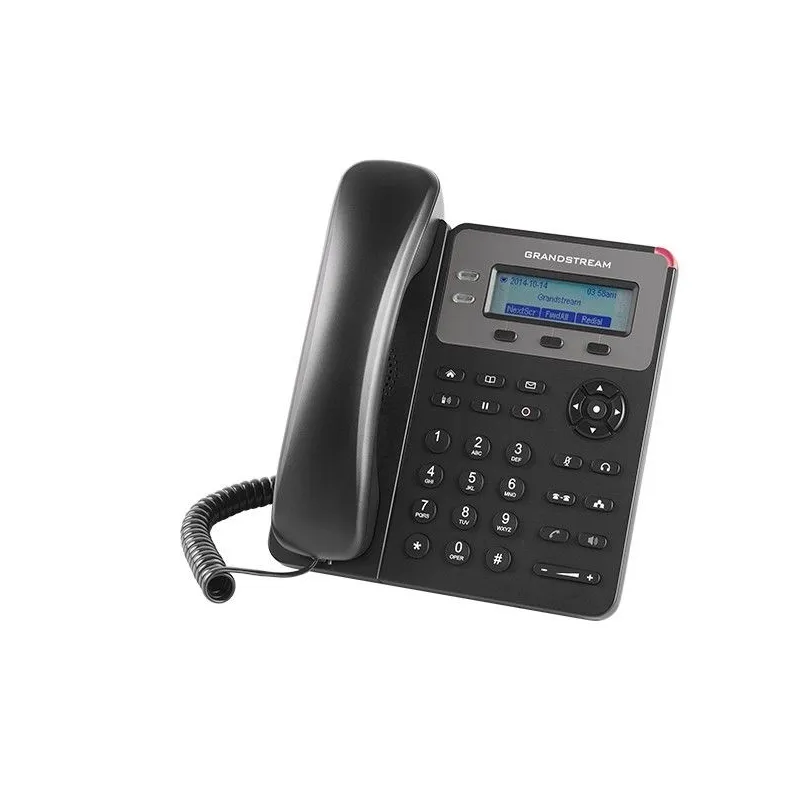

GrandStream GXP-1615 IP-Phone 1 คู่สาย (SIP Account), 2 Port Lan หน้าจอ LCD, HD Audio รองรับประชุม 3 สาย (รองรับ POE IEEE 802.3af)
|
|
Protocols/Standards
|
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
|
|
Network Interfaces
|
Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GXP1615 only)
|
|
Graphic Display
|
132 x 48 (2.95’’) LCD display
|
|
Feature Keys
|
2 line keys with dual-color LED and 1 SIP account, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 13 dedicated function keys for PAGE/INTERCOM, PHONEBOOK, MESSAGE, HOME, HOLD, RECORD, MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME
|
|
Voice Codecs
|
Support for G.711?/a, G.722 (wide-band), G.723,G.726-32, G.729 A/B, iLBC , in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
|
|
Telephony Features
|
Hold, transfer, forward (unconditional/no-answer/busy), 3-way conferencing, call park/pickup, downloadable phone book (XML, LDAP, up to 1000 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
|
|
Headset Jack
|
RJ9 headset jack (allowing EHS with Plantronics headsets)
|
|
Base Stand
|
Yes, 2 angled positions available, wall mountable
|
|
Wall Mountable
|
Yes
|
|
QoS
|
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
|
|
Security
|
User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
|
|
Multi-language
|
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
|
|
Upgrade/Provisioning
|
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
|
|
Power & Green Energy Efficiency
|
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
|
|
Physical
|
Dimension: 209mm (L) x 184.5mm (W) x 76.2mm (H) (with handset) Unit weight: 0.74kg; Package weight: 1.1kg
|
|
Temperature and Humidity
|
Operation: 0?C to 40?C, Storage: -10?C to 60?C , Humidity: 10% to 90%
Non-condensing
|
|
Package Content
|
GXP1610/1615 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, brochure, GPL License
|
|
Compliance
|
FCC: Part 15 (CFR 47) Class B CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1
|
|
รับประกัน
|
Limited Life time
|
