GrandStream GXP-1628 IP-Phone 2 คู่สาย 2 Port Lan, HD Audio, Backlit LCD display, 3-Way Conference
  • GrandStream GXP-1628 IP-Phone 2 คู่สาย 2 Port Lan, HD Audio, Backlit LCD display, 3-Way Conference
  • GrandStream GXP-1628 IP-Phone 2 คู่สาย 2 Port Lan, HD Audio, Backlit LCD display, 3-Way Conference
  • GrandStream GXP-1628 IP-Phone 2 คู่สาย 2 Port Lan, HD Audio, Backlit LCD display, 3-Way Conference
  • GrandStream GXP-1628 IP-Phone 2 คู่สาย 2 Port Lan, HD Audio, Backlit LCD display, 3-Way Conference

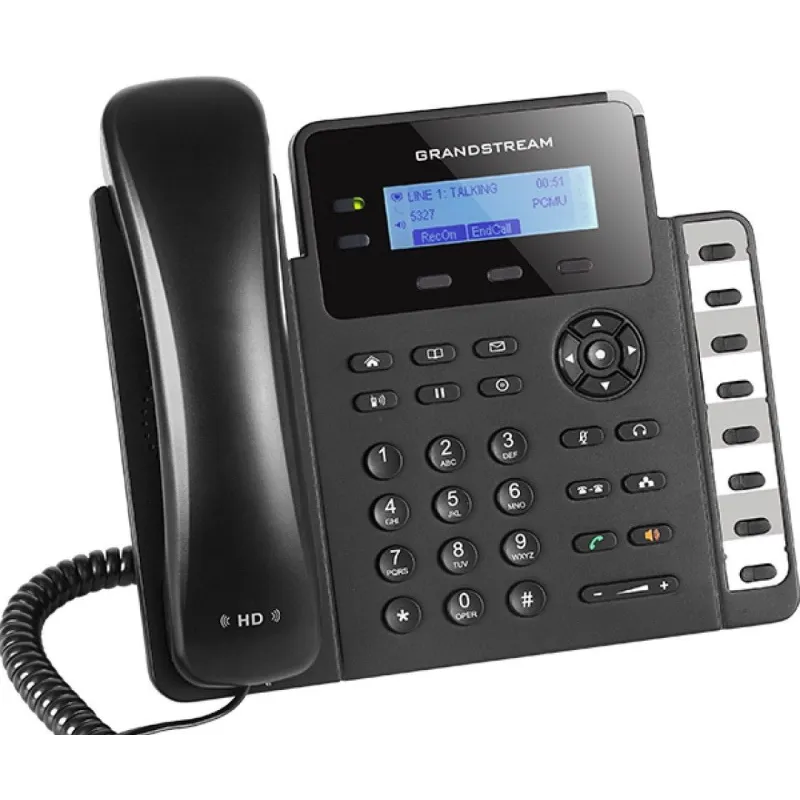

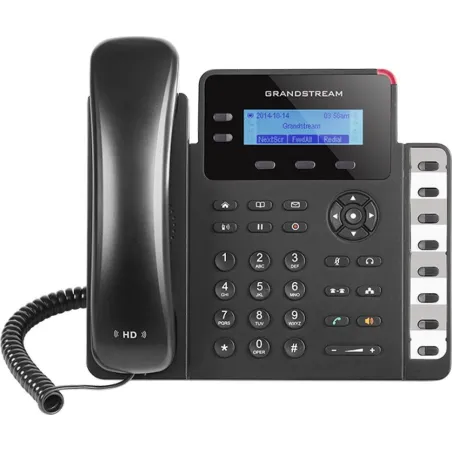

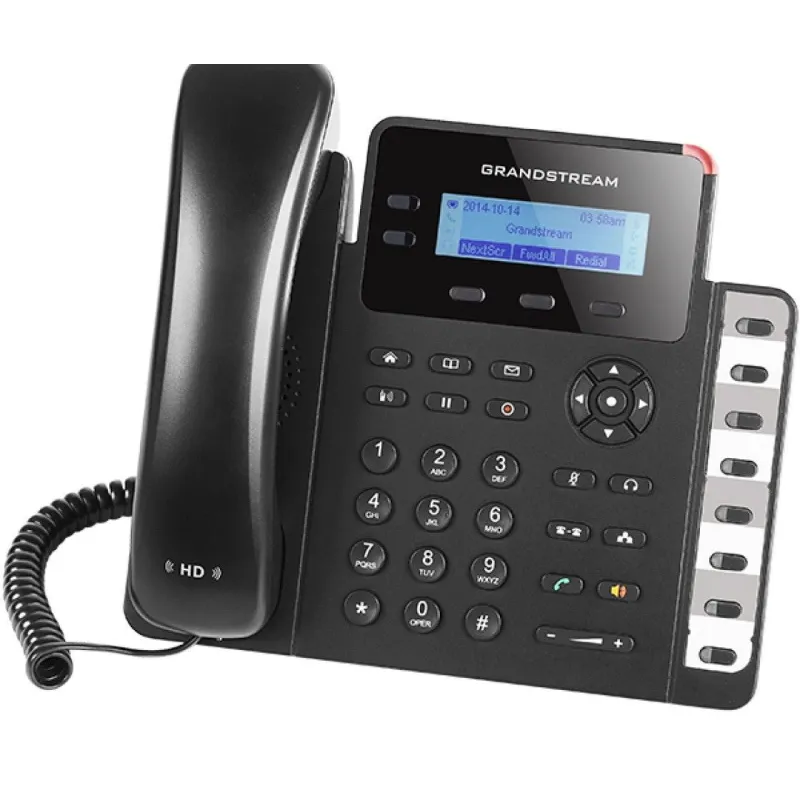

GrandStream GXP-1628 IP-Phone 2 คู่สาย 2 Port Lan, HD Audio, Backlit LCD display, 3-Way Conference

GrandStream GXP-1628 อุปกรณ์ IP-Phone รองรับ 2 คู่สาย (2 SIP Account), 2 Port Lan Gigabit, Backlit LCD display, HD Audio รองรับประชุม 3 สาย
฿2,350.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

รายละเอียด

Asterisk PBX Configuration for Grandstream Phones
GXP1628 Administration Guide

GXP1628 User Guide

GXP1628 Quick User Guide

GXP1628 Quick Install Guide

GXP Series Comparison Chart

IP Phone Use Case Scenarios

Product Specification

Overview

GrandStream GXP-1628 อุปกรณ์ IP-Phone รองรับ 2 คู่สาย (2 SIP Account), 2 Port Lan Gigabit, Backlit LCD display, HD Audio รองรับประชุม 3 สาย

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDPMED, LDAP, TR-069, 802.1x, TLS, SRTP

Network Interfaces

Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE

Graphic Display

132 x 48 backlit graphical LCD display

Feature Keys

2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME

Voice Codecs

Support for G.711?/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Telephony Features

Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 3-way conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-todial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over

Headset Jack

RJ9 headset jack (allowing EHS with Plantronics headsets)

HD Audio

Yes, HD Handset and speakerphone with support for wideband audio

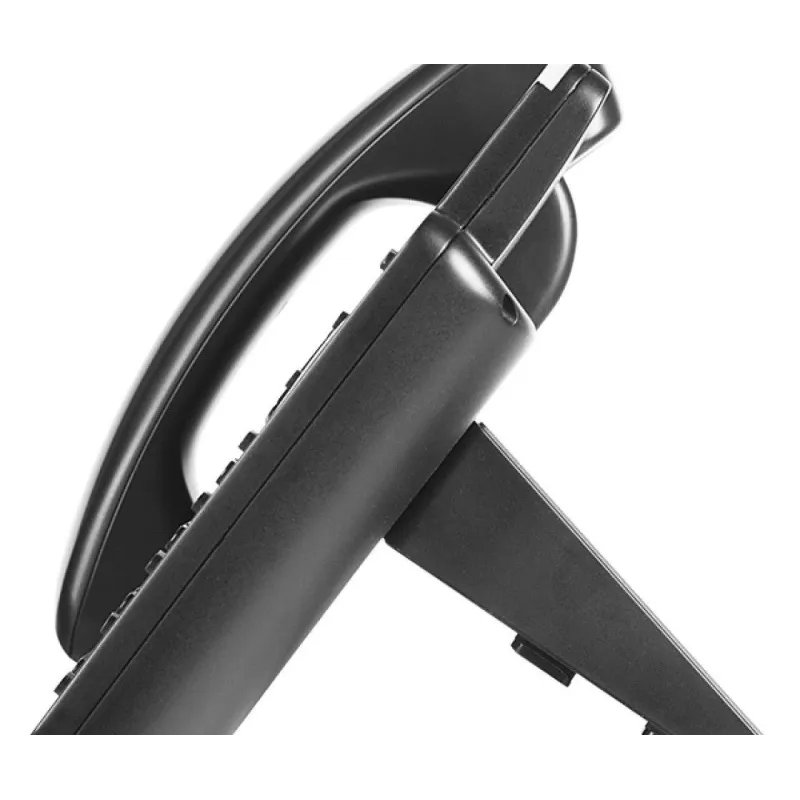

Base Stand

Yes, 2 angled positions available, wall mountable

Wall Mountable

Yes

QoS

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Multi-language

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more

Upgrade/Provisioning

Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES

Power & Green Energy Efficiency

Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE: IEEE802.3af Class 2, 3.84W-6.49W

Physical

Dimension: 220.5mm (L) x 192.5mm (W) x 76.0mm (H) (with handset)
Unit weight: 0.8kg; Package weight: 1.2kg

Temperature and Humidity

Operation: 0?C to 40?C, Storage: -10?C to 60?C , Humidity: 10% to 90% Non-condensing

Package Content

GXP1628 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, brochure, GPL License

Compliance

FCC: Part 15 (CFR 47) Class B CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1

รับประกัน

Limited Life Time
