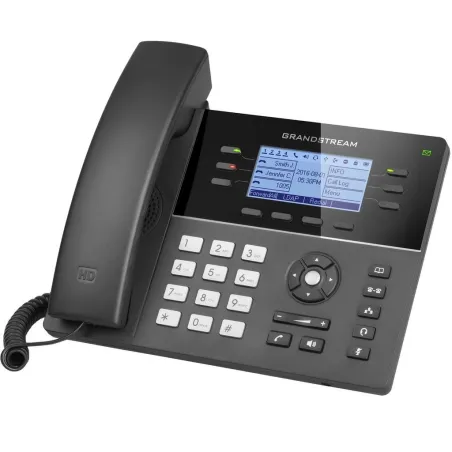

| Product Overview | GrandStream GXP-1760 IP-Phone 6 Lines, 3 SIP Accounts , HD Audio, LCD Color, 2 Port Lan หน้าจอ LCD, HD Audio, รองรับประชุม 5 สาย, รองรับ POE |
| | 6 lines, 6 dual-color line keys (with 3 SIP accounts), 4 XML programmable contextsensitive soft keys
24 digitally programmable & customizable BLF/fastdial keys
HD wideband audio, full-duplex hands-free speakerphone with advanced acoustic echo cancellation
5-way audio conferencing for easy conference calls
Dual 10/100 Mbps ports, built-in PoE
Built-in USB port for importing and exporting data only
Supports headset use with a RJ9 headset jack and EHS support for EHS-capable Plantronics headsets
TLS and SRTP security encryption technology to protect calls & accounts and Kensington Security Slot support
Large phonebook capacity with up to 2,000 contacts and call history with up to 500 records
Use with Grandstream’s UCM series IP PBX appliance for Zero- Config provisioning, also supports automated provisioning using TR-069 or AES encrypted XML configuration file |
Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
Network Interfaces | Dual switched auto-sensing 10/100Mbps ethernet ports with integrated POE |
Graphic Display | 200 x 80 pixel (3.3’’) backlit LCD display |
Bluetooth | No |
Feature Keys | 6 line keys with up to 3 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 8 dedicated function keys for: PHONEBOOK, TRANSFER, CONFERENCE, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOLUME |
Voice Codecs | Support for G.729A/B, G.711?/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, and a separate EHS port reserved for external EHS adapter in the future |
Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over |
HD audio | Yes, HD handset and speakerphone with support for wideband audio |
Base Stand | Yes, 2 angle positions available. Wall Mount stand sold separately |
QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support |
Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese |
Upgrade/Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file |
Power & Green Energy Efficiency | Universal power adapter included:Input:100-240V; Output: +5V, 1A;
Integrated Power-over-Ethernet (802.3af)
Max power consumption : 5W |
Physical | Dimension: 231mm(W) x 167mm(L) x 86mm(H); Unit weight:0.925kg ; Package weight:1.55kg |
Temperature and Humidity | Operation: 0?C to 40?C
Storage: -10?C to 60?C
Humidity: 10% to 90% Non-condensing |
Package Content | GXP1760 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license |
Compliance | FCC: Part 15 (CFR 47) Class B
CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1 |
รับประกัน | Limited Life Time |
