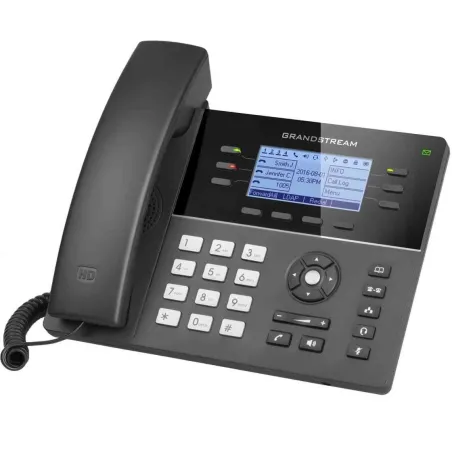

| Product Overview | GrandStream GXP-1760W IP-Phone รองรับ WIFI Dual-Band 2.4/5GHz มาตรฐาน 802.11a/b/g/n/ac 6 Lines, 3 SIP Accounts , HD Audio, LCD Color, 2 Port Lan หน้าจอ LCD, HD Audio, รองรับประชุม 5 สาย, รองรับ POE |
| | - 6 lines, 6 dual-color line keys (with 3 SIP accounts), 4 XML programmable context-sensitive soft keys
- 5-way audio conferencing for easy conference calls
- 24 digitally programmable & customizable BLF/fast-dial keys
- Built-in USB port for importing and exporting data only
- HD wideband audio, full-duplex hands-free speakerphone with advanced acoustic echo cancellation
- Built-in PoE to power the devices and give it a network connection
- Supports EHS compatible Plantronics’s headsets
- Automated provisioning using TR-069 or AES encrypted XML configuration file
- Large phonebook capacity with up to 2000 contacts and call history with up to 500 records
- TLS and SRTP security encryption technology to protect calls & accounts and Kensington Security Slot support
- Use with Grandstream’s UCM series IP PBX appliance for Zero-Config provisioning, 1-touch call recording & more
|
Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
Network Interfaces | Dual switched auto-sensing 10/100Mbps ethernet ports with integrated POE |
Graphic Display | 200 x 80 pixel (3.3’’) backlit LCD display |
WiFi | Yes, integrated dual-band WiFi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz) |
Bluetooth | No |
Feature Keys | 6 line keys with up to 3 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 8 dedicated function keys for: PHONEBOOK, TRANSFER, CONFERENCE, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOLUME |
Voice Codecs | Support for G.729A/B, G.711?/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, and a separate EHS port reserved for external EHS adapter in the future |
Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over |
HD audio | Yes, HD handset and speakerphone with support for wideband audio |
Base Stand | Yes, 2 angle positions available. Wall Mount stand sold separately |
QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support |
Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese |
Upgrade/Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file |
Power & Green Energy Efficiency | Universal power adapter included:Input:100-240V; Output: +5V, 2A;
Integrated Power-over-Ethernet (802.3af)
Max power consumption : 5W |
Physical | Dimension: 231mm(W) x 167mm(L) x 86mm(H); Unit weight:0.925kg ; Package weight:1.55kg |
Temperature and Humidity | Operation: 0?C to 40?C
Storage: -10?C to 60?C
Humidity: 10% to 90% Non-condensing |
Package Content | GXP1760W phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license |
Compliance | FCC: Part 15 (CFR 47) Class B
CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1 |
รับประกัน | Limited Life Time |
