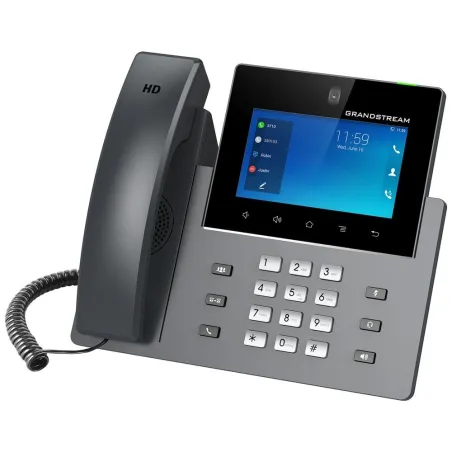

GrandStream GXV3350 IP Video Phone for Android, 5" Touch Screen, Video 720p, Wi-Fi, Bluetooth, POE
GrandStream GXV3350 IP Video Phone for Android, 5 inch Touch Screen, Video Conference 720p HD, 16 Sip Account, Wi-Fi, Bluetooth, POE
สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
GXV3350 Datasheet
GXV3350 Administration Guide
GXV3350 User Guide
GXV33350 Quick Install Guide
IP Phone Use Case Scenarios
Door Phone Guide
Product Specification |
|
Overview |
GrandStream GXV3350 อุปกรณ์ Video IP-Phone, ระบบปฏิบัติการ Android 7 ,16 คู่สาย (16 SIP Account), Build-In Camera, Bluetooth หน้าจอสี Touch Screen 6", HD Audio รองรับ Wifi, Bluetooth, POE 802.3af ทำ Video Conference ความละเอียดระดับ HD 720p 30fps |
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP |
Network Interface |
Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+ |
Graphic Display |
5.0 inch 1280×720 capacitive touch screen (5 points) HD TFT LCD |
Camera |
Built-in 1 mega-pixel CMOS tiltable camera with privacy wheel, 720p 30fps |
Bluetooth |
Yes, integrated. Bluetooth 4.2 + EDR |
Wi-Fi |
Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n |
Auxiliary Ports |
RJ9 headset jack (allowing EHS with Plantronics headsets), extension module port, USB port, HDMI-out (1.4 up to 720p30fps) |
Feature Keys |
11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKERPHONE, VOLUME -/+. 3 dedicated Android keys for HOME, MENU, and BACK |
Voice Codecs |
Wide-band Opus, wide-band G.722, G.711μ/a, G. 729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS |
Video Codecs and Capabilities |
H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, auto focus and auto exposure |
Telephony Features |
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 6-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), programmable key, downloadable contacts (XML, LDAP, up to 1000 items), call record(local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy & fail-over |
Extension Module |
Yes, can power up to 4 GBX20 EXT modules which feature a 272x480 color LCD, 20 quick-dial/ BLF keys with dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit |
Sample Applications |
Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Voicemail, Calculator, Clock, Recorder, GS Market, etc. Supports third-party Android apps API/SDK available for advanced custom application development |
Android |
Runs Android 7.0 |
Applications Deployment |
Supports Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control |
HD Audio |
Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio |
Base Stand |
Yes, base stand with three adjustable levels |
QoS |
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security |
User and administrator level passwords, MD5 and MD5-sess based authentication, 256bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
Multi-language |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean and Japanese and more |
Upgrade/Provisioning |
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file |
Power & Green Energy Efficiency |
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A |
Temperature and Humidity |
Operation: 0°C to 40°C, Storage: -10°C to 60°C, |
Package Content |
GXV3350 phone, handset with cord, base stand, universal power supply, network cable, quick installation guide, GPL license |
Compliance |
FCC: Part 15 Class B; Part 15 Subpart C(15.247); Part 15 Subpart E(15.407); Part 68 HAC IC: RSS-247; RSS-Gen; RSS-102; IECS-003; CS03 CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311 RCM: AS/NZS CISPR 32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004 |
รับประกัน |
Lifetime |
|
