Product Specification
|
|
Overview
|

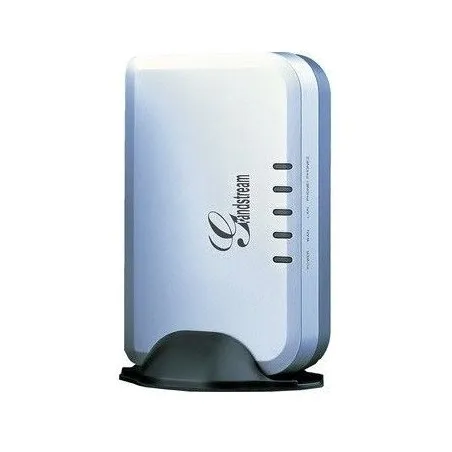

Grandstream HT-503 อุปกรณ์ IP Analog Telephone Adapter (ATA) 1 FXS, 1 FXO, Integrated NAT router, 2 Port Lan 10/100Mbps, รองรับ T.38, 2 SIP Account
|
|
Telephone Interfaces
|
1 FXS telephone port (RJ11), 1 FXO PSTN line port (RJ11) with lifeline support
|
|
Network Interfaces
|
Two (2) 10/100Mbps ports (RJ45) with integrated NAT router and auto-detection
and support for either straight through or crossover cables
|
|
LED Indicators
|
Power,WAN, LAN, PHONE and LINE
|
|
Factory Reset Button
|
Yes
|
|
Telephony Features
|
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
|
|
Voice Codecs
|
G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1A, G.729A/B/E, G.728, G.726-40/32/24/16, iLBC
|
|
Voice over Packet Capabilities
|
Voice Activity Detection (VAD) with comfort noise generation (CNG) and packet loss concealment (PLC), dyanmic jitter buffer, G.168 compliant line echo cancellation
|
|
Fax Over IP
|
T.38 compliant Group 3 fax relay up to 14.4kbps, Fax datapump V.17, V.19, V.27ter, V.29 for T.38 fax relay
|
|
Short/Long Haul Ring Load
|
REN 3: Up to 150 ft on 24 AWG lines
|
|
Caller ID
|
Bellcore type 1 & 2, ETSI, BT, NTT and DTMF-based CID
|
|
Disconnect Methods
|
Polarity Reversal/Wink
|
|
DHCP Serve/Client NAT Router
|
Yes, can operate in NAT router or switched mode
|
|
Network Protocols
|
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN
|
|
QoS
|
Layer 2 (802.1Q VLAN/802.1p) and Layer 3 (ToS, Diffserv, MPLS)
|
|
DTMF Method
|
RFC2833 and/or SIP INFO
|
|
Provisioning and Control
|
UPnP, HTTP, HTTPS, TELNET, TFTP, TR069, secure and automated provisioning using AES encryption, syslog
|
|
Media
|
SRTP
|
|
Control
|
TLS/SIPS/HTTPS
|
|
Management
|
Syslog support, telnet, remote management using web broswer
|
|
Universal Power Supply
|
Input: 100-240VAC, 50-60Hz
Output: 12V VDC, 0.5A
|
|
Environmental
|
Operational: 32? ~ 104?F or 0? ~ 40?C;
Storage: -10 ~ 130?F
Humidity: 10 - 90% non condensing
|
