Product Specification
|
|
Overview
|

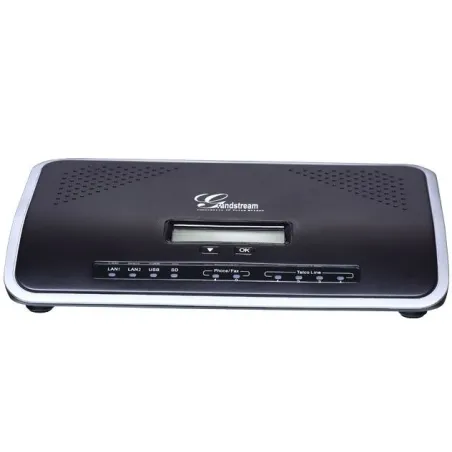

Granstream UCM6104 ตู้สาขา All-in-one IP-PBX ขนาดเล็ก รองรับ FXO 4 คู่สาย (คู่สายนอก) และ FXS 2 คู่สาย (คู่สายใน)
|
|
Web Based Management IP-PBX with 4FXO+2FXS ; 2 LAN 10/100/1000M ; 45 Concurrent call and 3 conference bridge 25 IP participates
The UCM6100 series IP PBX is a full-featured, easy-to-manage IP PBX Appliance designed to bring enterprise-grade features to small-and-medium sized businesses (SMBs) without the need for licensing fees, costs per feature, or any recurring costs.
Powered by an advanced hardware platform with robust system resources, the UCM6100 series offers a highly versatile, turnkey solution for converged voice, video, data, and mobility applications, including fax and video surveillance.
Incorporating industry-leading features and performance, the UCM6100 series offers quick and easy setup and deployment using the web-browser user interface – which features auto-discovery of IP endpoints and zero-configuration provisioning. The secure and reliable UCM 6100 series delivers enterprise-grade features to SMBs with unrivaled reliability - all at an unprecedented price point.
-
Integrated 4 PSTN trunk FXO ports, 2 analog telephone FXS ports, and up to 50 SIP trunk options
-
Gigabit network port with integrated PoE, USB, SD; integrated NAT router with advanced QoS support (UCM6102 only)
-
Supports up to 60 concurrent calls and up to 32 conference attendees
-
1GHz ARM Cortex A8 application processor, large memory (512MB DDR RAM, 4GB NAND Flash), and dedicated high performance multi-core DSP array for advanced voice processing
-
Gigabit network port with integrated PoE, USB, SD; integrated NAT router with advanced QoS support (UCM6102 only)
-
Supports a wide range of popular voice codecs (including G.711 A-law/U-law, G.722, G.723.1, G.726, G.729A/B, iLBC, GSM), video codec (including H.264, H.263, H263+), and Fax (T.38)
-
Hardware DSP based 128ms-tail-length carrier-grade line echo cancellation (LEC)
-
Supports up to 60 concurrent calls and up to 32 conference attendees
-
Flexible dial plan, call routing, site peering, call recording
-
Automated detection and provisioning of IP phones, video phones, ATA and other endpoints for easy deployment
-
Hardware encryption accelerator to ensure strongest security protection using SRTP, TLS, and HTTPSIntegrated 2/4/8/16 PSTN trunk FXO ports, 2 analog telephone FXS ports, and up to 50 SIP trunk options
|
|
Technical Specifications
|
UCM6104
|
|

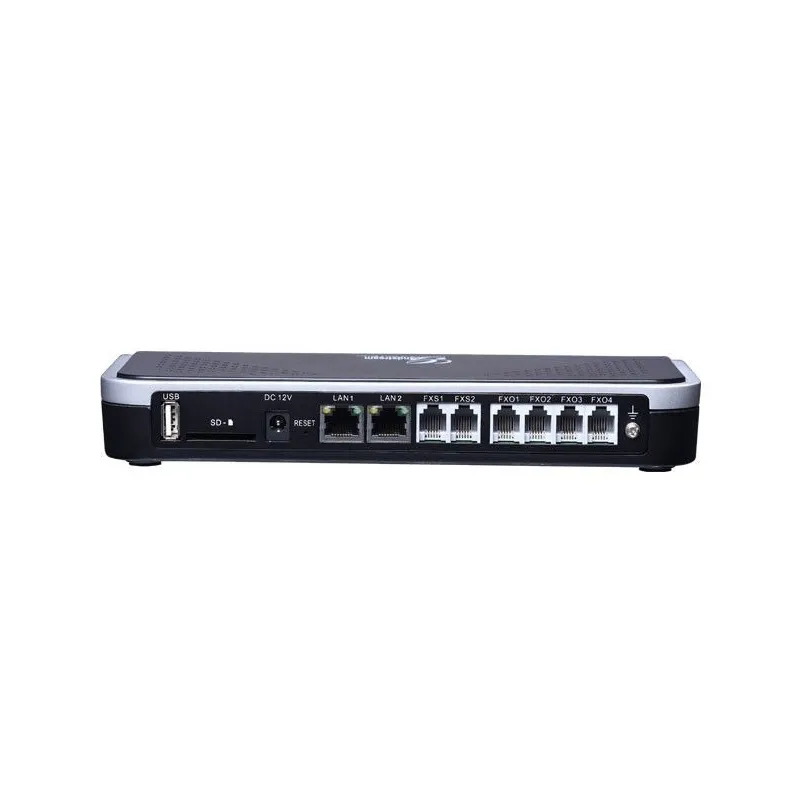

INTERFACES
|
|
PSTN Line FXO Ports
|
4 FXO
|
|
Analog Telephone FXS Ports
|
2 FXS
|
|
Network Interfaces
|
Single or Dual (UCM6102 only) 10M/100M/1000M RJ45 Ethernet port(s) with integrated PoE Plus (IEEE 802.3at-2009)
|
|
Data Router
|
No
|
|
Peripheral Ports
|
USB, SD
|
|
LED Indicators
|
Power/Ready, Network, PSTN Line, USB, SD
|
|
LCD Display
|
128x32 graphic LCD with DOWN & OK button
|
|
Reset Switch
|
YES
|
|
VOICE/VIDEO CAPABILITIES
|
|
Voice-over-Packet Capabilities
|
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation,
Dynamic Jitter Buffer, Modem detection & auto-switch to G.711
|
|
Voice Compression & Fax
|
G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM; T.38
|
|
Video Compression
|
H.264, H.263, H263+
|
|
QoS
|
Layer 3 QoS.
|
|
SIGNALING & CONTROL
|
|
DTMF Method
|
In Audio, RFC2833 and SIP INFO
|
|
Provisioning Protocol & Plug-and-Play
|
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints
|
|
Network Protocols
|
TCP/UDP/IP, RTP/RTCP, ICMP, ARP/RARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS/SIP
|
|
Disconnect Methods
|
Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone
|
|
SECURITY
|
|
Media
|
SRTP, TLS, HTTPS, SSH, Syslog
|
|
PHYSICAL
|
|
Universal Power Supply
|
Output: 12VDC, 1.5A; Input: 100 ~ 240VAC, 50 ~ 60Hz
|
|
Environmental
|
Operating: 32 ~ 104?F / 0 ~ 40?C, 10 ~ 90% (non-condensing); Storage: 14 ~ 140?F / -10 ~ 60?C
|
|
Dimensions (L*W*H)
|
226mm(L)x 155mm(W)x 34.5mm(H)
|
|
Mounting
|
Wall mount & Desktop (UCM6102/6104); Rack mount & Desktop (UCM6108/6116)
|
|
ADDITIONAL FEATURES
|
|
Caller ID
|
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (Pending)
|
|
Polarity Reversal/Wink
|
Yes, with enable/disable option upon call establishment and termination
|
|
Call Center
|
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement
|
|
Customizable Auto Attendant
|
Up to 5 layers of IVR (Interactive Voice Response)
|
|
Concurrent Calls
|
Up to 30 (UCM6102), 45 (UCM6104), or 60 (UCM6108/6116) simultaneous calls
|
|
Conference Bridges
|
Up to 3 (UCM6102/6104) or 6 (UCM6108/6116) password-protected conference bridges allowing up to 25 (UCM6102/6104) or 32 (UCM6108/6116) simultaneous PSTN or IP participants
|
|
Call Features
|
Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom, etc.
|
|
COMPLIANCE
|
|
EMC
|
FCC: Part 15 (CFR 47) Class B, Part 68
CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS
A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002
|
|
Safety
|
ITU-T K.21(Basic Level); UL(Power Supply)
|
