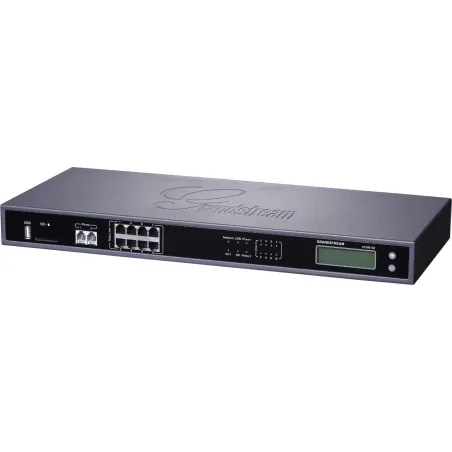

Grandstream UCM6108 ตู้สาขา All-in-one IP-PBX รองรับ 8คู่สายนอก และ 2คู่สายใน 2 Port Lan, 60 Concurrent call

Product Specification

Overview

Granstream UCM6108 ตู้สาขา All-in-one IP-PBX ขนาดเล็ก รองรับ FXO 8 คู่สาย (คู่สายนอก) FXS 2 คู่สาย (คู่สายใน)

IP PBX with 8FXO + 2FXS ; 1 Port LAN Gigabit 10/100/1000M ; 60 Concurrent call and 6 conference bridge 32 IP participates

The UCM6100 series IP PBX is a full-featured, easy-to-manage IP PBX Appliance designed to bring enterprise-grade features to small-and-medium sized businesses (SMBs) without the need for licensing fees, costs per feature, or any recurring costs.

Powered by an advanced hardware platform with robust system resources, the UCM6100 series offers a highly versatile, turnkey solution for converged voice, video, data, and mobility applications, including fax and video surveillance.

Incorporating industry-leading features and performance, the UCM6100 series offers quick and easy setup and deployment using the web-browser user interface – which features auto-discovery of IP endpoints and zero-configuration provisioning. The secure and reliable UCM 6100 series delivers enterprise-grade features to SMBs with unrivaled reliability - all at an unprecedented price point.

• Integrated 8 PSTN trunk FXO ports, 2 analog telephone FXS ports, and up to 50 SIP trunk options
• Gigabit network port with integrated PoE, USB, SD; integrated NAT router with advanced QoS support (UCM6102 only)
• Supports up to 60 concurrent calls and up to 32 conference attendees

Technical Specifications

UCM6108

INTERFACES

PSTN Line FXO Ports

8 FXO

Analog Telephone FXS Ports

2 FXS

Network Interfaces

Single or Dual (UCM6102 only) 10M/100M/1000M RJ45 Ethernet port(s) with integrated PoE Plus (IEEE 802.3at-2009)

Data Router

No

Peripheral Ports

USB, SD

LED Indicators

Power/Ready, Network, PSTN Line, USB, SD

LCD Display

128x32 graphic LCD with DOWN & OK button

Reset Switch

YES

VOICE/VIDEO CAPABILITIES

Voice-over-Packet Capabilities

LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation,

Dynamic Jitter Buffer, Modem detection & auto-switch to G.711

Voice Compression & Fax

G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM; T.38

Video Compression

H.264, H.263, H263+

QoS

Layer 3 QoS.

SIGNALING & CONTROL

DTMF Method

In Audio, RFC2833 and SIP INFO

Provisioning Protocol & Plug-and-Play

TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints

Network Protocols

TCP/UDP/IP, RTP/RTCP, ICMP, ARP/RARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS/SIP

Disconnect Methods

Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone

SECURITY

Media

SRTP, TLS, HTTPS, SSH, Syslog

PHYSICAL

Universal Power Supply

Output: 12VDC, 1.5A;  Input: 100 ~ 240VAC, 50 ~ 60Hz

Environmental

Operating: 32 ~ 104?F /  0 ~ 40?C, 10 ~ 90% (non-condensing);  Storage: 14 ~ 140?F /  -10 ~ 60?C

Dimensions (L*W*H)

226mm(L)x 155mm(W)x 34.5mm(H)

Mounting

Wall mount & Desktop (UCM6102/6104);   Rack mount  & Desktop (UCM6108/6116)

ADDITIONAL FEATURES

Caller ID

Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (Pending)

Polarity Reversal/Wink

Yes, with enable/disable option upon call establishment and termination

Call Center

Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement

Customizable Auto Attendant

Up to 5 layers of IVR (Interactive Voice Response)

Concurrent Calls

Up to 30 (UCM6102), 45 (UCM6104), or 60 (UCM6108/6116) simultaneous calls

Conference Bridges

Up to 3 (UCM6102/6104) or 6 (UCM6108/6116) password-protected conference bridges allowing up to 25 (UCM6102/6104) or 32 (UCM6108/6116) simultaneous PSTN or IP participants

Call Features

Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom, etc.

COMPLIANCE

EMC

FCC: Part 15 (CFR 47) Class B, Part 68

CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS

A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002

Safety

ITU-T K.21(Basic Level); UL(Power Supply)

รับประกัน

สินค้ารับประกัน 1 ปี
