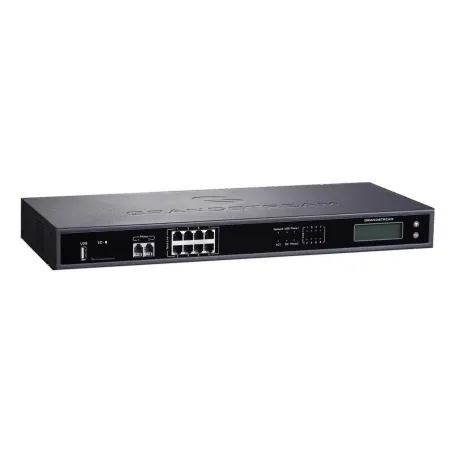

Grandstream UCM6208 ตู้สาขา IP-PBX Appliance 8FXO, 2FXS รองรับ 8 คู่สายนอก 2 Port Lan, 100 Concurrent call
  • Grandstream UCM6208 ตู้สาขา IP-PBX Appliance 8FXO, 2FXS รองรับ 8 คู่สายนอก 2 Port Lan, 100 Concurrent call

Grandstream UCM6208 ตู้สาขา IP-PBX Appliance 8FXO, 2FXS รองรับ 8 คู่สายนอก 2 Port Lan, 100 Concurrent call

Grandstream UCM6208 IP-PBX Appliance 8FXO, 2FXS รองรับ 8 คู่สายนอก (FXO) และ 2 คู่สายใน (FXS), 2 Port Lan Gigabit, 100 Concurrent Call
฿99,999.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock

รายละเอียด

UCM6200 series English Datasheet
Configuring UCM6100 and UCM6200 series with FreePBX

UCM6200 Series User Manual

UCM Security Manual

UCM6208 Quick Installation Guide

UCM Use Case Scenarios

UCM6200 series vs. UCM6100 series comparison

UCM6xxx SIP Trunk Guide

Product Specification

Overview

Grandstream UCM6208 อุปกรณ์ตู้สาขา IP-PBX Appliance 8FXO, 2FXS รองรับ 8 คู่สายนอก (8 FXO) และ 2 คู่สายใน (2 FXS), 2 Port Lan ความเร็ว Gigabit, รองรับ 100 Concurrent Call (Prefer 800 Extensions)

Telephone Interfaces

1 FXS telephone port (RJ11), 1 FXO PSTN line port (RJ11) with lifeline support

Analog Telephone FXS Ports

2 ports (both with lifeline capability in case of power outage)

PSTN Line FXO Ports

2 ports (UCM6202); 4 ports (UCM6204); 8 ports (UCM6208)

Network Interfaces

Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009)

NAT Router

Yes (supports router mode and switch mode)

Peripheral Ports

USB, SD

LED Indicators

Power/Ready, Network, PSTN Line, USB, SD

LCD Display

128x32 graphic LCD with DOWN & OK button

Reset Switch

Yes

Voice-over-Packet Capabilities

LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711

Voice and Fax Codecs

G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38

Video Codecs

H.264, H.263, H263+

QoS

Layer 3 QoS, Layer 2 QoS

DTMF Methods

In Audio, RFC2833, and SIP INFO

Provisioning Protocol & Plug-and-Play

TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk

Network Protocols

TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP

Disconnect Methods

Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone

Media Encryption

SRTP, TLS, HTTPS, SSH

Universal Power Supply

Output: 12VDC, 1.5A; Input: 100 ~ 240VAC, 50 ~ 60Hz

Dimensions

UCM6202/6204: 226mm L x 155mm W x 34.5mm H
UCM6208: 440mm L x 185mm W x 44mm H

Weight

UCM6202/6204: Unit weight 0.51kg, Package weight 0.94kg
UCM6208: Unit weight 2.23kg, Package weight 3.09kg

Environmental

Operating: 32 ~ 104?F / 0 ~ 40?C, 10 ~ 90% (non-condensing); Storage: 14 ~ 140?F / -10 ~ 60?C

Mounting

Wall mount & Desktop (UCM6202/6204); Rack mount & Desktop (UCM6208)

Caller ID

Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT

Polarity Reversal/Wink

Yes, with enable/disable option upon call establishment and termination

Call Center

Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement

Customizable Auto Attendant

Up to 5 layers of IVR (Interactive Voice Response)

Maximum Call Capacity

-Registered SIP devices: supports up to 800 registered SIP devices/users (for UCM6208) and 500 registered SIP devices/users (for UCM6202/6204)
-Concurrent SIP calls: Up to 30 (UCM6202), 45 (UCM6204), or 100 (UCM6208), or 66%performance if calls are SRTP encrypted

Conference Bridges

Up to 3 (UCM6202/6204) or 6 (UCM6208) password-protected conference bridges allowing up to 25 (UCM6202/6204) or 32 (UCM6208) simultaneous PSTN or IP participants

Call Features

Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc.

Compliance

FCC: Part 15 (CFR 47) Class B, Part 68
CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS
A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002
ITU-T K.21 (Basic Level); UL 60950 (power adapter)

รับประกัน

3 ปี
