Product Specification
|
|
Overview
|

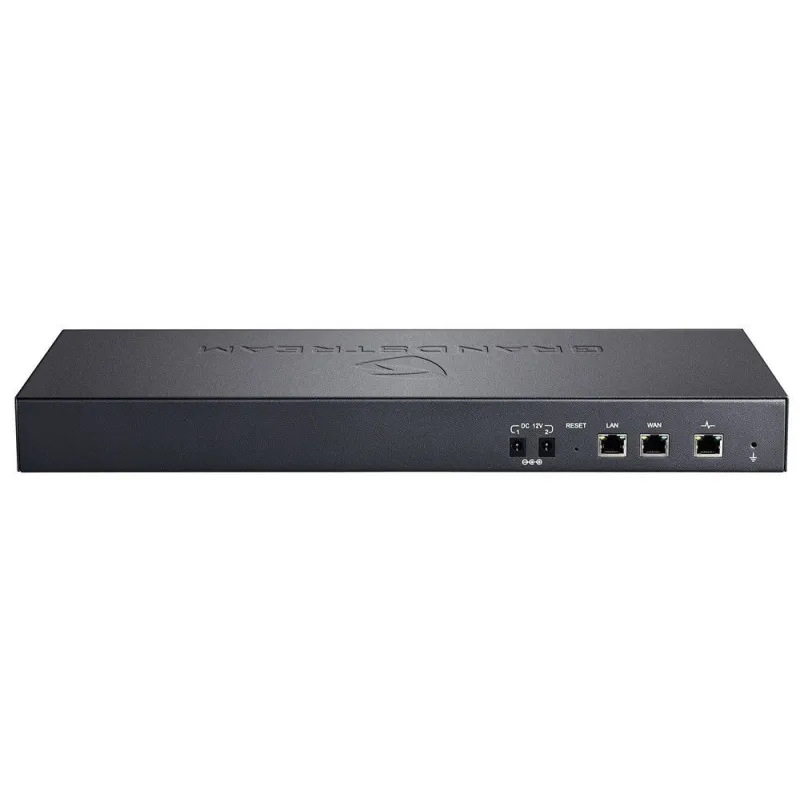

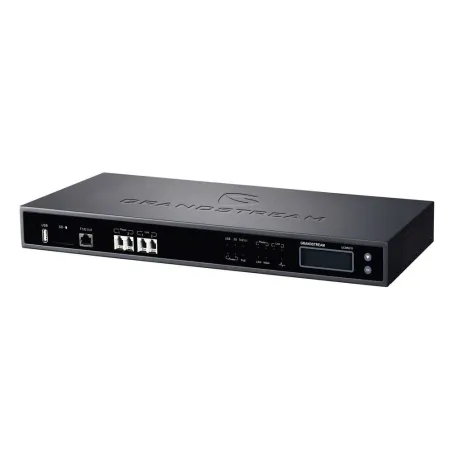

Grandstream UCM6510 ตู้สาขา IP-PBX Appliance พร้อม Port E1 สำหรับเชื่อมต่อระบบโทรศัพท์แบบ E1, 2 FXO รองรับ 2000 Extension
|
|
Analog Telephone FXS Ports
|
2 RJ11 ports (both with lifeline capability in case of power outage)
|
|
Analog Telephone FXS Ports
|
2 RJ11 ports (both with lifeline capability in case of power outage)
|
|
PSTN Line FXO Ports
|
2 RJ11 ports (both with lifeline capability in case of power outage)
|
|
T1/E1/J1 Interface
|
1 RJ45 port
|
|
Network Interfaces
|
Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009)
|
|
NAT Router
|
Yes (supports router mode and switch mode)
|
|
Peripheral Ports
|
USB, SD
|
|
LED Indicators
|
Power 1/2, PoE, USB, SD, T1/E1/J1, FXS 1/2, FXO 1/2, LAN, WAN
|
|
LCD Display
|
128x32 graphic LCD with DOWN & OK button
|
|
Reset Switch
|
Yes
|
|
Voice-over-Packet Capabilities
|
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711
|
|
Voice and Fax Codecs
|
G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38
|
|
Video Codecs
|
H.264, H.263, H263+
|
|
QoS
|
Layer 3 QoS, Layer 2 QoS
|
|
DTMF Methods
|
In Audio, RFC2833, and SIP INFO
|
|
Digital Signaling
|
TPRI, SS7, MFC/R2, RBS (pending)
|
|
Provisioning Protocol & Plug-and-Play
|
TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk
|
|
Network Protocols
|
TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending)
|
|
Disconnect Methods
|
Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone
|
|
Media Encryption
|
SRTP, TLS, HTTPS, SSH
|
|
Advanced Defense
|
Fail2ban, alert events, Whitelist, Blacklist, strong password based access control
|
|
Universal Power Supply
|
Input: 100 ~ 240VAC, 50/60Hz; Output: DC+12V, 1.5A
|
|
Dimensions
|
440mm(L) x 185mm(W) x 44mm(H)
|
|
Environmental
|
Operating: 32 - 113ºF / 0 ~ 45ºC, Humidity 10 - 90% (non-condensing)
Storage: 14 - 140ºF / -10 ~ 60ºC, Humidity 10 - 90% (non-condensing)
|
|
Mounting
|
Rack mount & Desktop
|
|
Caller ID
|
Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT
|
|
Polarity Reversal/Wink
|
Yes, with enable/disable option upon call establishment and termination
|
|
Call Center
|
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement
|
|
Customizable Auto Attendant
|
Up to 5 layers of IVR (Interactive Voice Response)
|
|
Maximum Call Capacity
|
-Registered SIP devices: supports up to 800 registered SIP devices/users (for UCM6208) and 500 registered SIP devices/users (for UCM6202/6204)
-Concurrent SIP calls: Up to 30 (UCM6202), 45 (UCM6204), or 100 (UCM6208), or 66%performance if calls are SRTP encrypted
|
|
Conference Bridges
|
Up to 3 (UCM6202/6204) or 6 (UCM6208) password-protected conference bridges allowing up to 25 (UCM6202/6204) or 32 (UCM6208) simultaneous PSTN or IP participants
|
|
Call Features
|
Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc.
|
|
Compliance
|
FCC: Part 15 (CFR 47) Class B, Part 68
CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS
A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002
ITU-T K.21 (Basic Level); UL 60950 (power adapter)
|
|
รับประกัน
|
3 ปี
|
