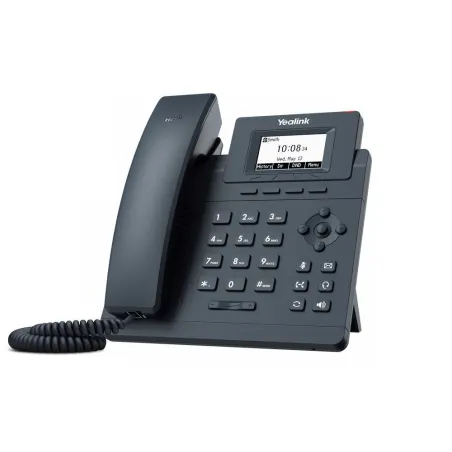

Yealink SIP-T30P IP-Phone, 1 SIP Account, Opus codec รองรับ POE

Product Specification

Overview

Yealink SIP-T30P IP-Phone รองรับ 1 SIP Account, Opus codec support 2.3" 132x64 LCD ราคาประหยัด รองรับ POE

Audio Features

• HD voice: HD handset, HD speaker
• Smart Noise Filtering
• Wideband codec: Opus, G.722
• Narrowband codec: G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• One VoIP account
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS, emergency call
• Redial, call return, auto answer
• Local 5-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan
• XML Browser, action URL/URI
• Integrated screenshots
• RTCP-XR, VQ-RTCPXR
• Enhanced DSS Key

Directory

• Loal phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Call park, call pickup
• Executive and Assistant
• Centralized call recording
• Visual voice mail
• Call recording

Display and Indicator

• 2.3” 132x64-pixel graphical LCD
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Power saving

Feature keys

• 6 features keys: transfer, message, headset, redial, mute, hands-free speakerphone
• 5 navigation keys
• Volume control keys

Interface

• 2 x RJ45 10/100M Ethernet ports
• Power over Ethernet (IEEE 802.3af), class 2
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Other Physical Features

• Color: Classic Grey
• Wall mountable
• External Yealink AC adapter
AC 100~240V input and DC 5V/600mA output
• Power consumption (PSU): 2-3W
• Power consumption (PoE): 3-4W
• Dimension (W*D*H*T) 185mm*189mm*162mm*50mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE

Package Features

• Package content:
- Yealink SIP-T30P IP phone
- Handset with handset cord
- Ethernet Cable (1.5m CAT5E UTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)
• Qty/CTN: 10 PCS
• N.W/CTN: 9.48 kg
• G.W/CTN: 10.45 kg
• Giftbox size: 213 mm*210 mm*103 mm
• Carton Meas: 535 mm*443 mm*227 mm

สินค้ารับประกัน 1 ปี
