Product Specification
|
|
Overview
|

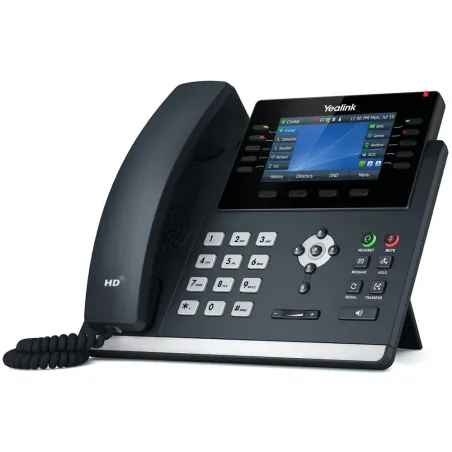

Yealink SIP-T46U IP-Phone รองรับ 16 SIP Account, Opus codec support, Port Gigabit, จอ LCD 4.3" รองรับ POE
|
|
Key Features and Benefits
|
Easy Customization and High Expansibility
HD Audio
Efficient Installation and Provisioning
Secure Transport and Interoperability
|
|
Specifications
|
4.3" 480 x 272-pixel color display with backlight
Opus codec support
Dual USB ports
T4U Auto-P template unified
T4U firmware unified
Up to 16 SIP accounts
Dual-port Gigabit Ethernet
PoE support
USB headset and EHS support
Wi-Fi via WF40/WF50
Bluetooth via BT40/BT41
USB recording
Supports expansion modules
Stand with two adjustable angles
Wall mountable
|
|
Audio Features
|
HD voice: HD handset, HD speaker
Hearing aid compatible (HAC) handset
Acoustic Shield
WCodecs: AMR-WB (optional), AMR-NB (optional), Opus*, G.722, G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
|
|
Phone Features
|
16 VoIP accounts
Call hold, mute, DND
One-touch speed dial, hotline
Call forward, call waiting, call transfer
Group listening, SMS, emergency call
Redial, call return, auto answer
3-way conferencing
Direct IP call without SIP proxy
Set date time manually or automatically
Dial plan, XML Browser, Action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
USB port (2.0 compliant)
Bluetooth earphone through BT40/BT41
Contact synchronization through BT40/BT41
Wi-Fi through WF40/WF50
USB call recording through USB flash drive
USB headset
Expansion Module EXP43
Wireless Headset Adapter EHS40
Enhanced DSS key
|
|
Directory
|
Local phonebook up to 1000 entries
Black list
XML/LDAP remote phonebook
Smart dialing
Phonebook search/import/export
Call history: dialed/received/missed/forwarded
|
|
IP-PBX Features
|
Busy Lamp Field (BLF), Bridged Line Apperance (BLA)
Anonymous call, anonymous call rejection
Hot-desking, voice mail
Flexible seating
Call park, call pickup
Centralized call recording, call recording
Visual voice mail
Executive and Assistant
Call recording
|
|
Display and Indicator
|
4.3" 480 x 272-pixel color display with backlight
16 bit depth color
LED for call and message waiting indication
Dual-color (red or green) illuminated LEDs for line status information
Wallpaper
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name and number
Screensaver
Power saving
|
|
Feature keys
|
10 line keys with LED
8 line keys can be programmed up to 27 paperless DSS keys (3-page view)
7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
4 context-sensitive “soft” keys
6 navigation keys
Volume control keys
Illuminated mute key
Illuminated headset key
Illuminated hands-free speakerphone key
|
|
Interface
|
Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), Class 3
2 x USB port (2.0 compliant)
1xRJ9 (4P4C) handset port
1xRJ9 (4P4C) headset port
|
|
Other Physical Features
|
Color: Classic Grey
Stand with 2 adjustable angles/li>
Wall mountable
External Yealink AC adapter (optional) AC 100~240V input and DC 5V/2A output
USB output currency: 5V 1A
Power consumption (PSU): 1.2-3.0W
Power consumption (PoE): 1.6-3.8W
Dimension (W*D*H*T): 24.4cm*21.3cm*18.5cm*5.4cm
Operating humidity: 10~95%
Operating temperature: 0~40°C (+32~104°F)
|
|
Management
|
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Auto-provision with PnP
BroadSoft device management
Zero-sp-touch TR-069
Phone lock for personal privacy protection
Reset to factory, Reboot
Package tracing export, System log
|
|
Network and Security
|
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
SRTP for voice
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication
OpenVPN, IEEE802.1X
IPv6, LLDP/CDP/DHCP VLAN, ICE
|
|
Package Content
|
Yealink SIP-T46U IP Phone
Handset with handset cord
Ethernet Cable (2m CAT5E UTP Cable)
Stand
Quick Start Guide
|
|
สินค้ารับประกัน 1 ปี
|
|
|
