Product Specification
|
|
Overview
|

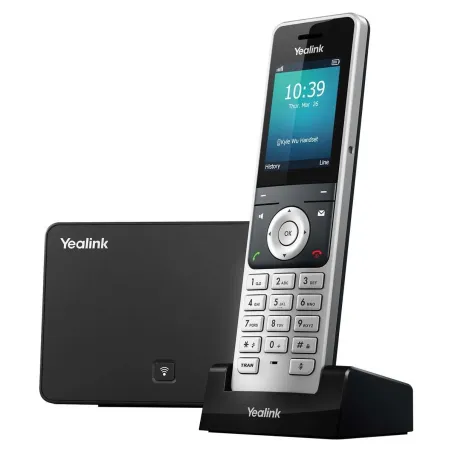

Yealink W56P/H Dect Phone โทรศัพท์แบบ IP (IP-Phone) จอ 2.4 นิ้ว 240x320-pixel รองรับ 5 คู่สาย, 5 SIP Account, 1 Port Lan รองรับ POE 802.3af
|
|
Phone Features
|
. Up to 4 simultaneous calls
. Up to 5 handsets
. Up to 5 VoIP accounts
. Handset select for receiving call
. Handset and Number select for making call
. Paging, intercom, auto answer
. Call hold, call transfer, 3-way conferencing
. Switching between calls
. Call waiting, mute, DND
. Caller ID display, redial
. Anonymous call
. Anonymous call rejection
. Call forward (always/busy/no answer)
. Speed dial, voicemail, silence
. Message Waiting Indication (MWI)
. Local phonebook for up to 500 entries(store in the base)
. Remote phonebook/LDAP
. Phonebook search/import/export
. Call history outgoing/missed/accepted)
. Direct IP call without SIP proxy
. Reset to factory, reboot
. Keypad lock
. Emergency call
. Dial Plan
. Music on hold
. Broadsoft directory
. BroadSoft Call Log
. Broadworks feature key synchronization
. Shared Call Appearance (SCA)
|
|
Personalization
|
. 9 ringer melodies
. Screen saver
. Multi-language support
|
|
Management
|
. Auto-provision via FTP/TFTP/HTTP/HTTPS
. Auto-provision with PnP
. Handset upgrade: OTA (Over-The-Air)
. Configuration:browser/phone/auto-provision
. Trace package and system log export
|
|
Voice and Codecs Features
|
. Full-duplex speakerphone
. Hearing Aid Compatibility (HAC)compliant
. Receiver volume control: 5 steps
. Ringer volume control: 5 steps+off
. Multiple advisory tones
. Acoustic warning for low battery status
. DTMF
. Wideband codec: G.722
. Narrowband codec: G.711?/A, G.723, G.726, G.729,
iLBC
. VAD, CNG, AEC, PLC, AJB
. Support VQ-RTCPXR (RFC6035)
|
|
Network Features
|
. SIP v1 (RFC2543), v2 (RFC3261)
. SNTP/NTP
. VLAN (802.1Q and 802.1P)
. 802.1x, LLDP, PPPoE
. STUN Client (NAT Traversal)
. UDP, TCP
. IP assignment: static/DHCP
. Support outbound proxy server backup
|
|
Security
|
. Open VPN
. Transport Layer Security (TLS)
. HTTPS (server/client)
. SRTP (RFC3711)
. Digest authentication using MD5
. Secure configuration file via AES encryption
. Support SHA256/SHA512/SHA384
. Admin/Var/User 3-level configuration mode
|
|
DECT
|
. Frequency bands:
1880 – 1900 MHz (Europe),
1920 – 1930 MHz (US),
1900 – 1906 MHz (Thailand)
. DECT Standards: CAT-iq2.0
|
|
Connectors
|
. 1 x RJ45 10/100M Ethernet port
. Power over Ethernet (IEEE 802.3af)
. Headset jack (3.5 mm)
|
|
Physical Features
|
Indoor Range: 20m~50m(The ideal distance is 50m)
. Outdoor Range: 300m (In ideal conditions)
. Standby Time: 400h (In ideal conditions)
. Talk Time: 30h
. 2.4’’ 240x320 pixels color display
. Desktop or wall mountable
. LCD backlit, key backlit
. Energy-saving ECO mode/ECO Mode+
. 12 key numerical keypad, 5 navigation keys,2 softkeys, 6 function keys, 6 shortcut keys
. 3 LEDs on Base:1 x power, 1 x Network, 1 x Call
. Base station: DC 5V/600mA Output
. Charger: DC 5V/600mA Output
. Maximum transmission power: 10 milliwatts
. Phone size: 175mm x 53mm x 20.3mm
. Base station size:53.5mm x 108.5mm x 45mm
. Operating humidity: 10 ~ 95%
. Operating temperature: -10 ~ +50?C
|
|
Configuration Management
|
Configuration via browser/display/auto-provisioning
Virtual remote control
Firmware upgrading, factory resetting
Export or import configuration
System log exporting
|
|
Package Features
|
. Package content:
- W56H Handset
- Base for W52P/W56P
- Belt Clip
- Rechargeable Lithium Battery
- USB Charger Cradle
- Two Power Adapters
- Ethernet Cable
- Quick Start Guide
. Qty/CNT: 10pcs
. Giftbox size: 205mm*196mm*95mm
. Carton meas: 512mm*414mm*213mm
. N.W: 8.1kg
. G.W: 9.0kg
|
|
Optional accessory
|
. Handset protective case
|
|
Special Features
|
. Increase range with up to 5 repeaters
|
|
|
|
|
สินค้ารับประกัน 1 ปี
|
|
|
