Product Specification
|
|
Overview
|

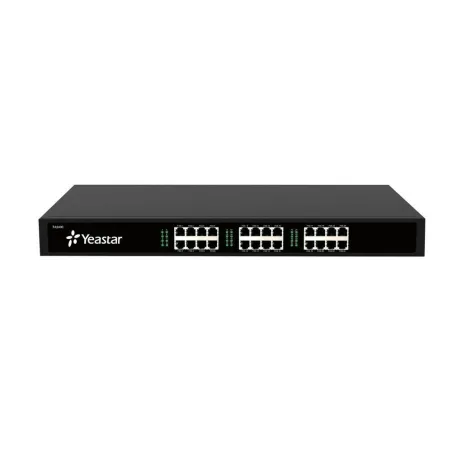

Yeastar TA2400 Analog Telephone Adapter (ATA) เชื่อมต่อโทรศัพท์ Analog เข้ากับ IP-PBX, 24 RJ11 FXS Port, 2 Port Lan รองรับ T.38 เชื่อมต่อกับ FAX
เหมาะสำหรับเชื่อมต่อกับระบบโทรศัพท์เดิมที่เดินสายโทรศัพท์ไว้แล้ว และไม่ต้องการเดินสาย Lan เพิ่ม
|
|
Features
|
3-way Conference
Attack Alert
Auto Provisioning with Yeastar IP-PBX
Blind Transfer
Caller ID Display
Call Waiting
Firewall
Hotline
IP Blacklist
Nat Traversal
Radius Accounting & Login
Speed Dial
TR-069
Web-based Management
API
Attended Transfer
Backup and Restore
Call Detail Records
Call Forward (Always, Busy, No Answer)
Do Not
Disturb
Firmware Upgrade by HTTP/TFTP
Hunting Groups
MWI (FSK, Neon, Polarity Reversal)
Packet Capture Tool
SNMP
System Logs
Voice Menu for Basic Configuration
Remote Management
|
|
RJ11 FXS Ports
|
24
|
|
RJ 21 Ports
|
1
|
|
LAN
|
1 Port 10/100 Mbps
|
|
WAN
|
1 Port 10/100 Mbps
|
|
Protocol
|
SIP (RFC3261), IAX2
|
|
Transport
|
UDP, TCP, TLS, SRTP
|
|
Codec
|
G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
|
|
Voice Capability
|
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
|
|
DTMF Mode
|
RFC2833, SIP Info, In-band
|
|
Fax
|
T.30, T.38, Pass-through
|
|
QoS
|
DiffServ, ToS, 802.1 P/Q VLAN tagging
|
|
Network
|
DHCP, OpenVPN, PPPoE, Static Route, VLAN
|
|
Network Protocol
|
FTP, TFTP, HTTP, HTTPS, SSH
|
|
Management Protocol
|
SNMP, RADIUS, TR-069
|
|
Remote Management
|
YES
|
|
Signaling
|
FXS Loop Start, FXS Kewl Start
|
|
Caller ID
|
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
|
|
Disconnect Methods
|
Busy Tone, Polarity Reversal
|
|
Power
|
AC 100-240V (12V 5A)
|
|
Dimensions (L ? W ? H) (mm)
|
440 ? 250 ? 44
|
|
Operation Range
|
0?C to 40?C, 32?F to 104?F;
|
|
Storage Range
|
-20?C to 65?C, -4?F to 149?F
|
|
Humidity
|
10-90% non-condensing
|
|
Mounting
|
Desktop, Rack-mount
|
|
Compatibility
|
Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
|
|
รับประกัน
|
1 ปี
|
|
|
|
