Product Specification |

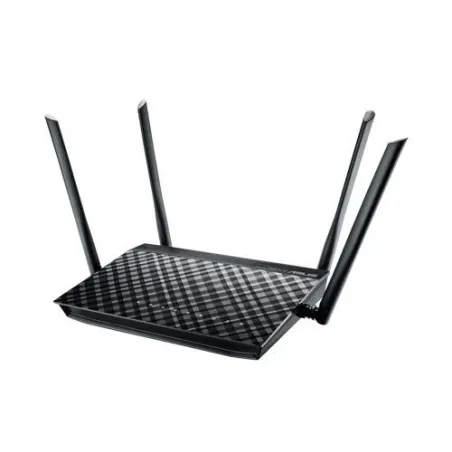

Overview | Asus RT-AC1200G+ Dual-band Wireless-AC1200 Gigabit Router Streaming 4K Videos เสา 5dBi x 4 USB 2.0 รองรับ Mode Roter และ Accesspoint
AC1200 Dual Band WiFi Router with four 5dBi antennas and Parental Controls, smooth streaming 4K videos from Youtube and Netflix |
Network Standard | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6 |
Product Segment | AC1200 enhanced AC performance : 300+867 Mbps |
Coverage | Medium homes |
Data Rate | 802.11n : up to 300 Mbps
802.11ac : up to 867 Mbps |
Antenna | External 5 dBi antenna x 4
*Antenna type will differ according to local regulations and requirement in each country |
Transmit/Receive | MIMO technology
2.4 GHz 2 x 2
5 GHz 2 x 2 |
Processor | BCM47189+ BCM43217 |
Memory | 16 MB Flash
128 MB RAM |
Operating Frequency | 2.4 GHz / 5 GHz |
Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
Firewall & Access Control | URL Blocking
MAC Filter
URL Filter
Enable LAN to WAN Filter
Parental Control Web filter |
Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log |
WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Multicast Proxy support
Multicast Rate Setting support |

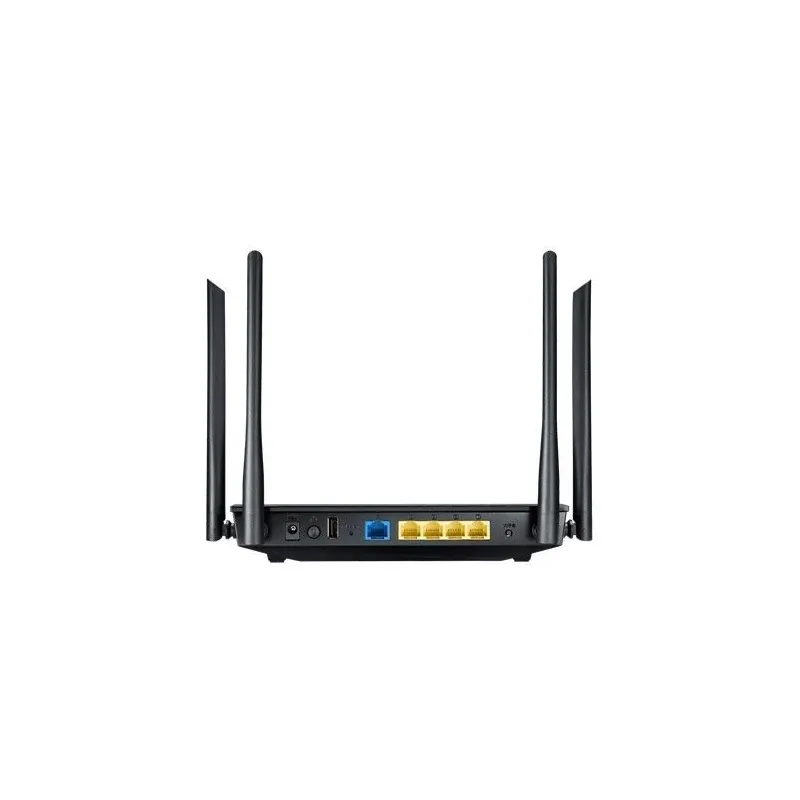

Ports | RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4
USB 2.0 x 1 |
Button | WPS Button, Reset Button, Power Button |
Features | SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN client : PPTP client, L2TP client
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
3G/4G data sharing |
LED Indicator | Power x 1
LAN x 4
Wi-Fi x 2
WAN x 1
USB x 1 |
Power Supply | AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current |
OS Support | Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® ME
Windows® XP
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux Kernel (Support Ubuntu only) |
Dimensions | 207 x 148 x 35 ~ mm (WxDxH) |
Weight | |

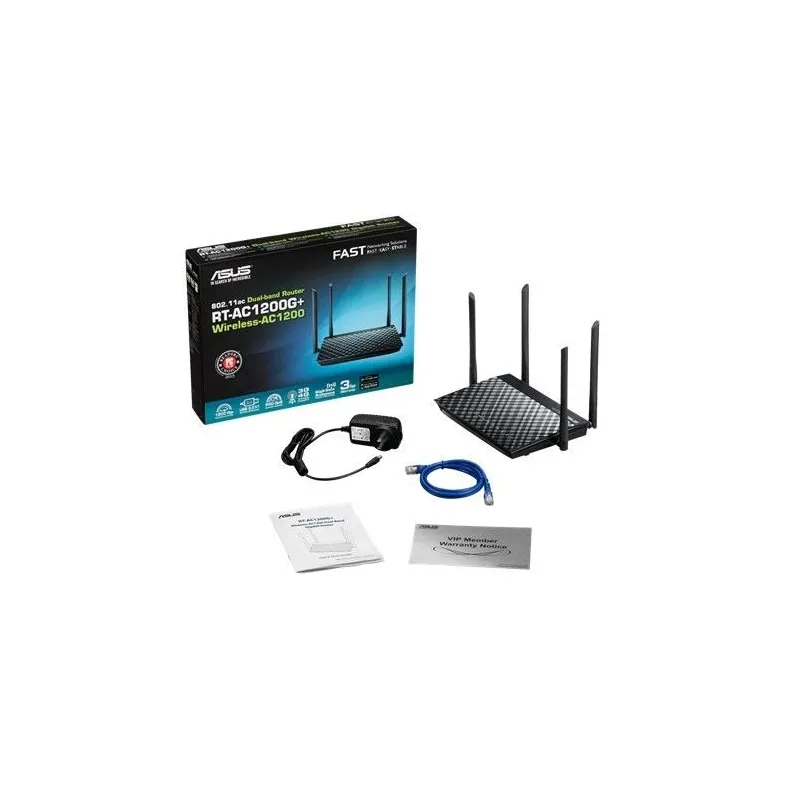

Package Content | RT-AC1200G Gigabit Router
RJ-45 Cable
Power adaptor
Quick Start Guide
Warranty Card |
Operation mode | Wireless router mode
Access point mode |
รับประกัน | 3 ปี |
