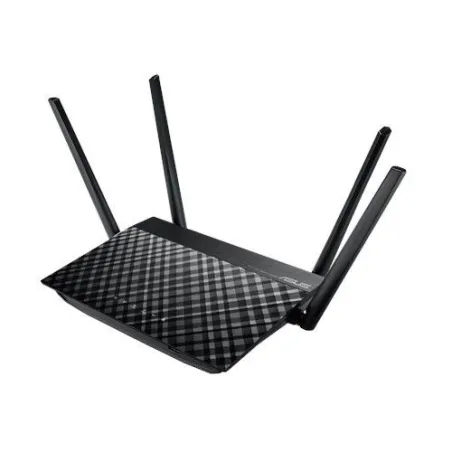

Asus RT-AC58U Dual-band Wireless-AC1300 Wifi Router MU-MIMO Wave2 Streaming 4K Videos

Product Specification

Overview

Asus RT-AC58U Dual-band Wireless-AC1300 Wifi Router MU-MIMO Wave2 Streaming 4K Videos เสา 5dBi x 4 USB 3.0 รองรับ Mode Roter และ Accesspoint

Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

Product Segment

AC1300 enhanced AC performance : 400+867 Mbps

Coverage

Large homes

Data Rate

802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n 256QAM : up to 400 Mbps
802.11ac : up to 867 Mbps

Antenna

External antenna x 4

Transmit/Receive

MIMO technology
2.4 GHz 2 x 2
5 GHz 2 x 2

Processor

BCM47189+ BCM43217

Memory

128 MB Flash
128 MB RAM

Operating Frequency

2.4 GHz / 5 GHz

Encryption

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

Firewall & Access Control

URL Blocking
MAC Filter
URL Filter
Enable LAN to WAN Filter
Parental Control Web filter

Management

UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ, System Event Log

WAN Connection Type

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Multicast Proxy support
Multicast Rate Setting support

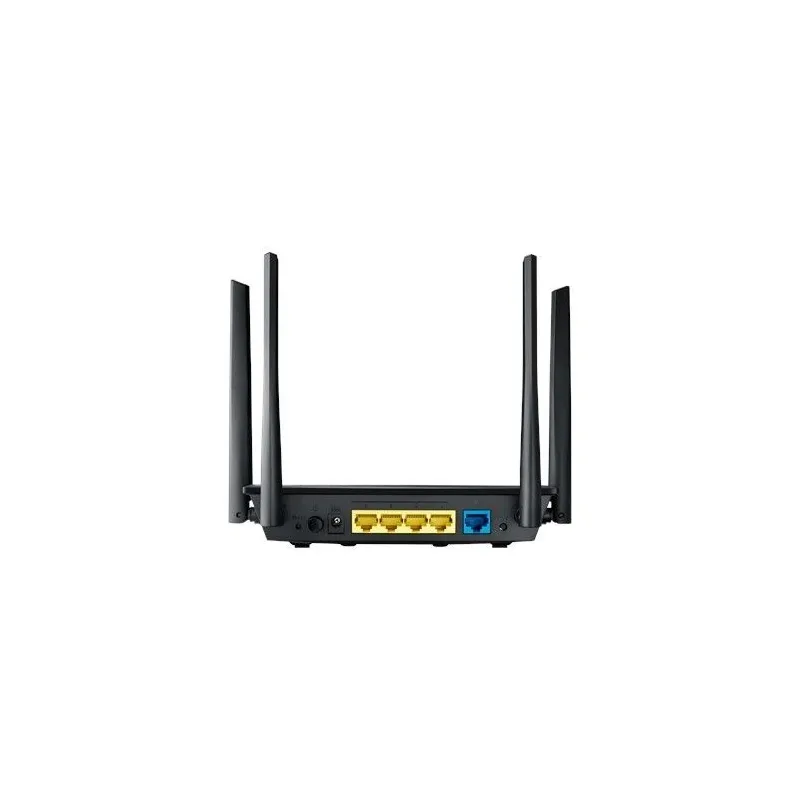

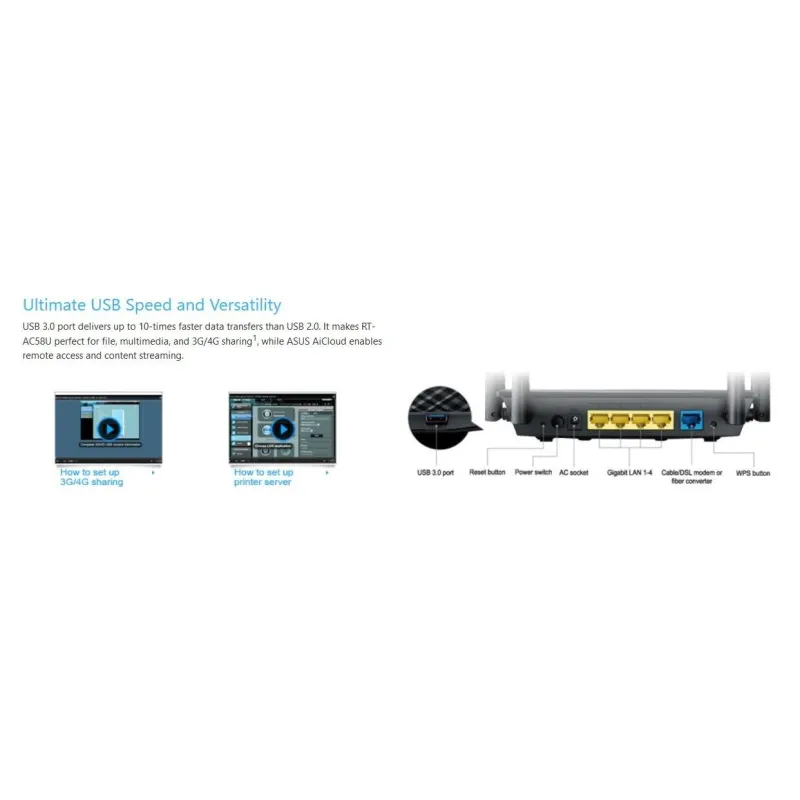

Ports

RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4
USB 3.0 x 1

Button

WPS Button, Reset Button, Power Button

Features

MU-MIMO
SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
Parental Control
Guest Network :
VPN server : L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
AiCloud personal cloud service
3G/4G data sharing
Printer Server

AiDisk file server
- Samba and FTP server with account management

LED Indicator

LAN x 1
WAN x 1
Wi-Fi x 2
USB x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current

OS Support

Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® ME
Windows® XP
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux Kernel (Support Ubuntu only)

Dimensions

207 x 148 x 35.5 ~ mm (WxDxH)

Weight

395g

Package Content

•Wireless Router
•AC adapter
•Network cable (RJ-45)
•Quick Start Guide
•Support CD (User Manual)

Operation mode

Wireless router mode
Access point mode

รับประกัน

5 ปี
