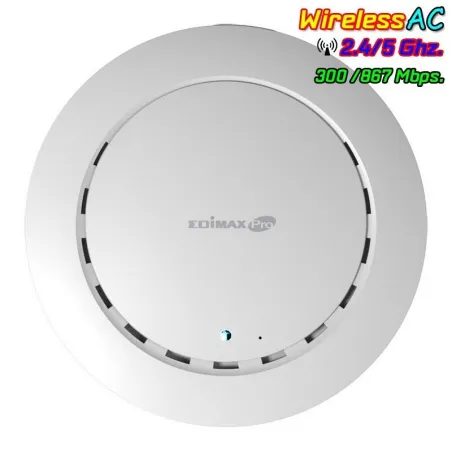

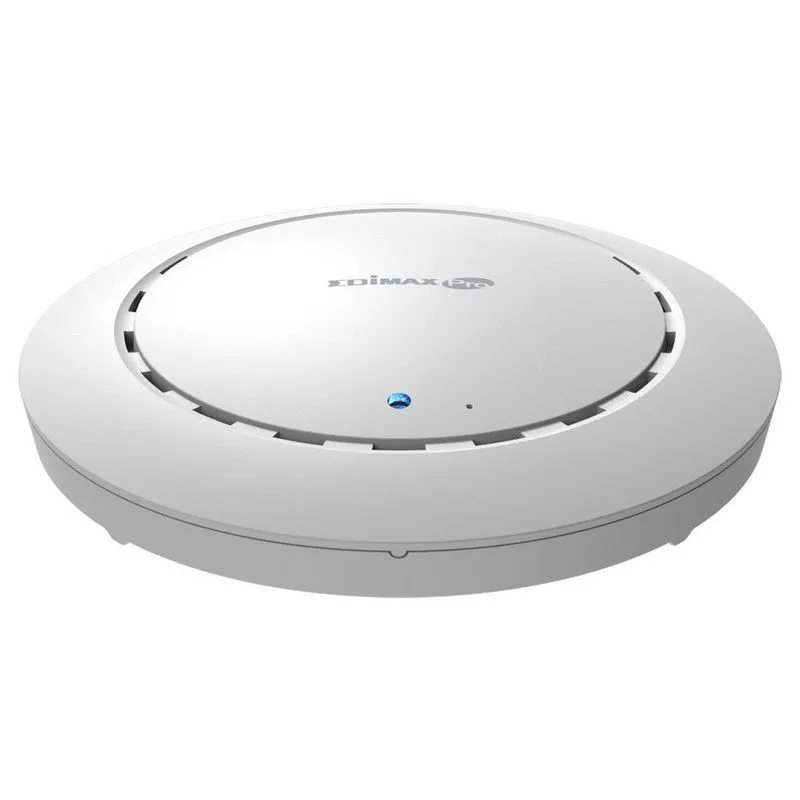

Overview | Edimax CAP1200 อุปกรณ์สื่อสารไร้สาย Access Point มาตรฐาน AC Dual-Band ความถี่ 2.4/5GHz ความเร็วสูงสุด 1200 Mbps มาตรฐาน IEEE802.11AC รองรับ POE มาตรฐาน 802.3af เหมาะสำหรับทำระบบ Hotspot ภายใน หอพัก รีสอร์ท โรงแรมขนาดเล็ก ราคาประหยัด |
HARDWARE |
LAN Interface | Gigabit x 1 Port |
PoE | 802.3af (Supports 802.3at) |
Antenna | Type: 4 x Built-In PIFA (2 x 2.4GHz, 2 x 5GHz)
Gain: 2.82dBi (2.4GHz), 4dBi (5GHz) Max. |
Power | DC: 12V / 1A
802.3af (PoE Injector Optional) |
Dimensions (L x W x H) | 17.6 (D) x 3.2 (H) cm |
Weight | 305.7g |
Power Consumption (Full Loading) | 11W |

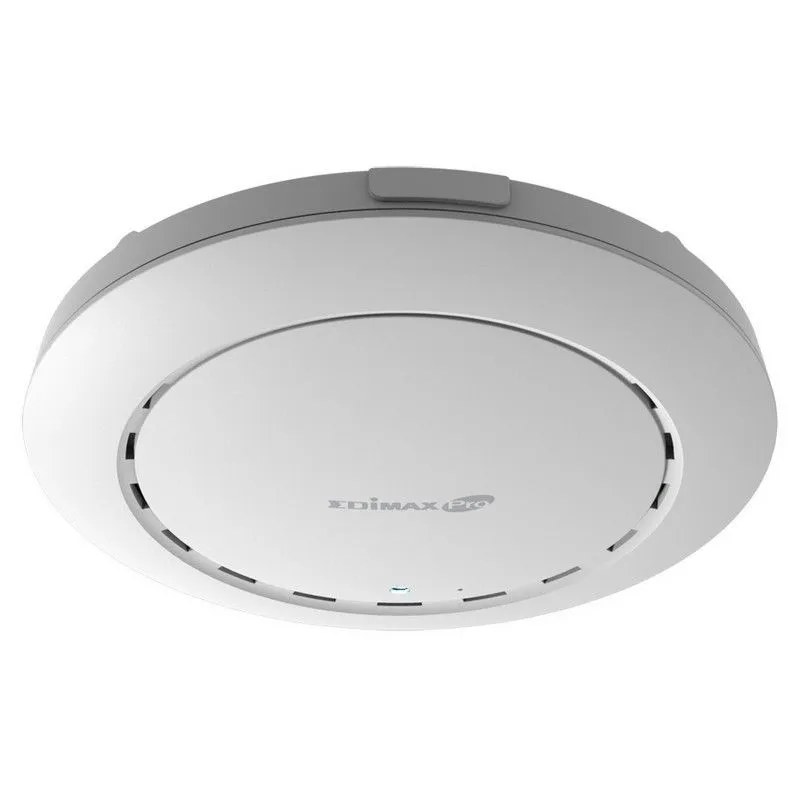

Mounting | Ceiling |
WPS/Reset | Y |
LED Indicator | 1. Power LED
2. Diag LED |
Environmental Conditions | Operating Temperature: 0?C (32?F) to 40?C (104?F)
Storage Temperature: -20?C (-4?F) to 60?C (140?F) |
Operating Humidity: 90% or Less
Storage Humidity: 90% or Less |
Power Saving | 802.3az |
Internal Buzzer | Y |
Housing | UL94-5VB Flammability Rating |
WIRELESS |
Standard | 802.11 a/b/g/n/ac Dual-Band |
No. of Radios | 2 |
Receiver Sensitivity | ? -95dBm |
Certification | CE / FCC |

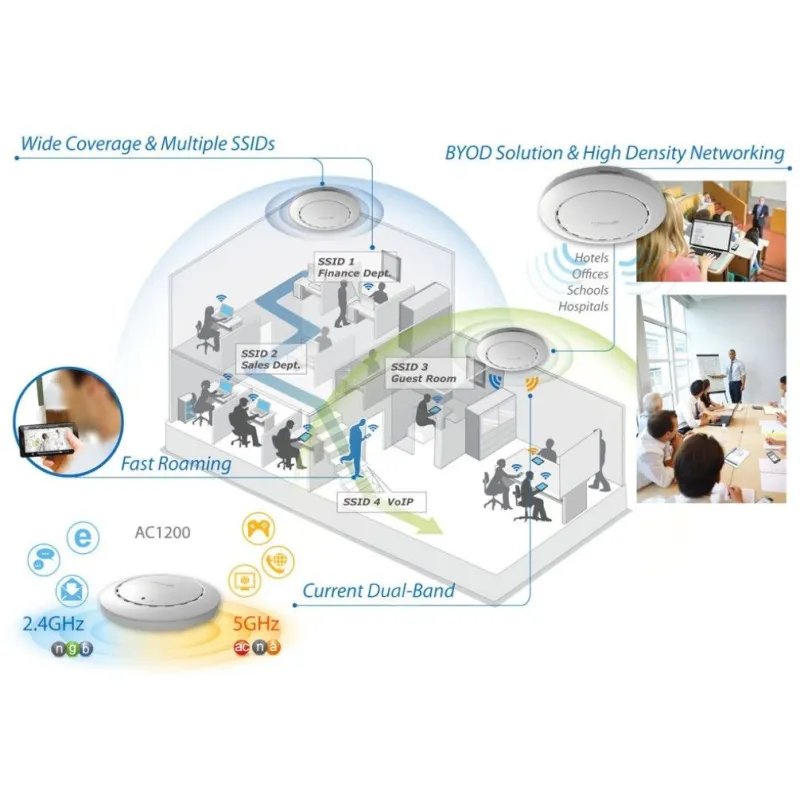

Fast Roaming | Y |
Number of SSIDs | 16 (2.4GHz) + 16 (5GHz) |
PERFORMANCE |
Maximum Data Speed | 300 + 867Mbps |
Concurrent Clients | Up to 50 |
RF SPECIFICATONS |
Frequency Band | •Radio ?: 802.11b/g/n 2.412~2.484(GHz)
•Radio ?: 802.11a/n/ac 5.18~5.24(GHz), 5.745~5.825(GHz)
(The supported frequency band is restricted by local regulations.) |
Operation Channels | •2.4GHz : US/Canada 1-11; 2.412~2.462GHz
Europe 1-13; 2.412~2.472GHz
Japan 1-14; 2.412~2.484GHz
•5GHz : Country dependent for the following ranges:
US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
Europe: Band 1:36, 40, 44, 48; 5.745~5.825(GHz) |
Transmit Power | •802.11b
23dBm@1Mbps
23dBm@2Mbps
[email protected]
23dBm@11Mbps
•802.11g
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
22dBm@36Mbps
20dBm@48Mbps
19dBm@54Mbps
•802.11gn (2.4G)
26dBm@MCS0/8
25dBm@MCS1/9
25dBm@MCS2/10
25dBm@MCS3/11
24dBm@MCS4/12
23dBm@MCS5/13
22dBm@MCS6/14
22dBm@MCS7/15 | •802.11a
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
22dBm@36Mbps
20dBm@48Mbps
19dBm@54Mbp
•802.11an(5G)
26dBm@MCS0/8
25dBm@MCS1/9
25dBm@MCS2/10
24dBm@MCS3/11
24dBm@MCS4/12
23dBm@MCS5/13
22dBm@MCS6/14
21dBm@MCS7/15
•802.11ac
26dBm@MCS0
25dBm@MCS1
25dBm@MCS2
24dBm@MCS3
24dBm@MCS4
23dBm@MCS5
22dBm@MCS6
21dBm@MCS7
19dBm@MCS8
18dBm@MCS9 |
|
Receiver Sensitivity | •802.11b
?-95dBm@1Mbps
?-90dBm@11Mbps
•802.11g
?-91dBm@6Mbps
?-75dBm@54Mbps
•802.11gn (2.4G)
?-93dBm@MCS0
?-73dBm@MCS7
?-90dBm@MCS8
?-70dBm@MCS15 | •802.11a
?-89dBm@6Mbp
?-72dBm@54Mbps
•802.11an(5G)
?-92dBm@MCS0
?-71dBm@MCS7
?-89dBm@MCS8
?-68dBm@MCS15
•802.11ac
? -86dBm@MCS0
? -61dBm@MCS9
? -83dBm@MCS10
? -58dBm@MCS19 |
|
SECURITY |
Encryption | WEP / WPA / WPA2 |
Wireless L2 Isolation | Y |
Station Isolation | Y |
IEEE 802.1x Authenticator | Y |
EAP Authentication | PEAP |
Hidden SSID | Y |
MAC Address Filter | Y |
Wireless STA | Y |
Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS)) | Y |
SOFTWARE |
Wireless Mode | AP / WDS AP / WDS Bridge |
802.1q VLAN | Y (VID = 1-4095) |
Spanning Tree | RSTP |
QoS | WMM (802.11e)
Max Associated Station No. |
Pass-Through | IPv6 and VPN (PPTP, L2TP/IPsec) |
DSCP (802.1p) | Y |
Multicast Rate up to 54Mbps | Y |
MANAGEMENT |

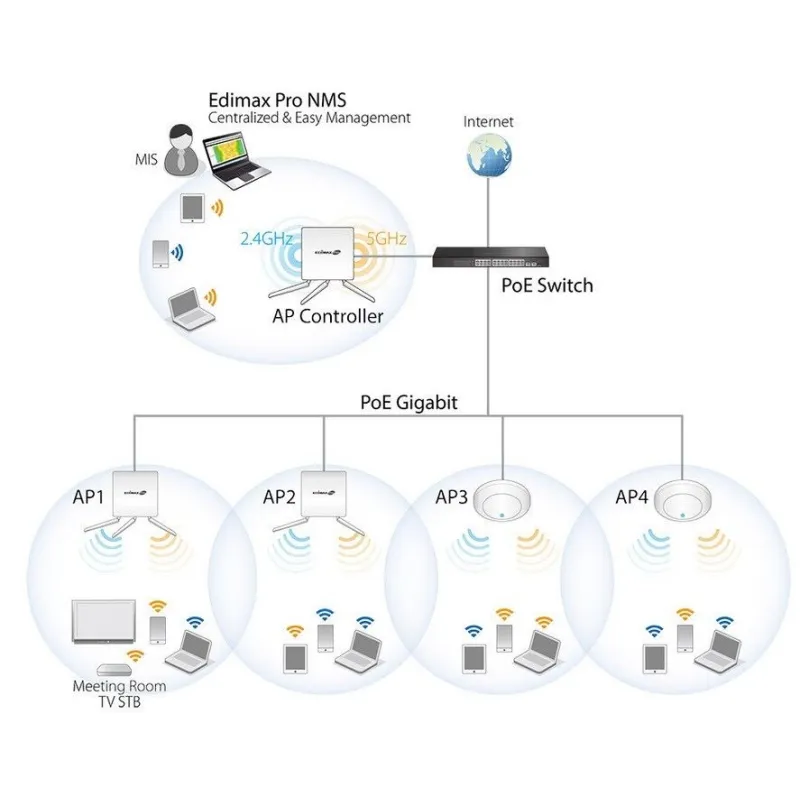

Deployment | Standalone
Managed by Edimax Pro NMS |
Configuration | HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH) |
RADIUS Server | Built-In |
Auto-Channel | Y |
Private MIB | Y |
