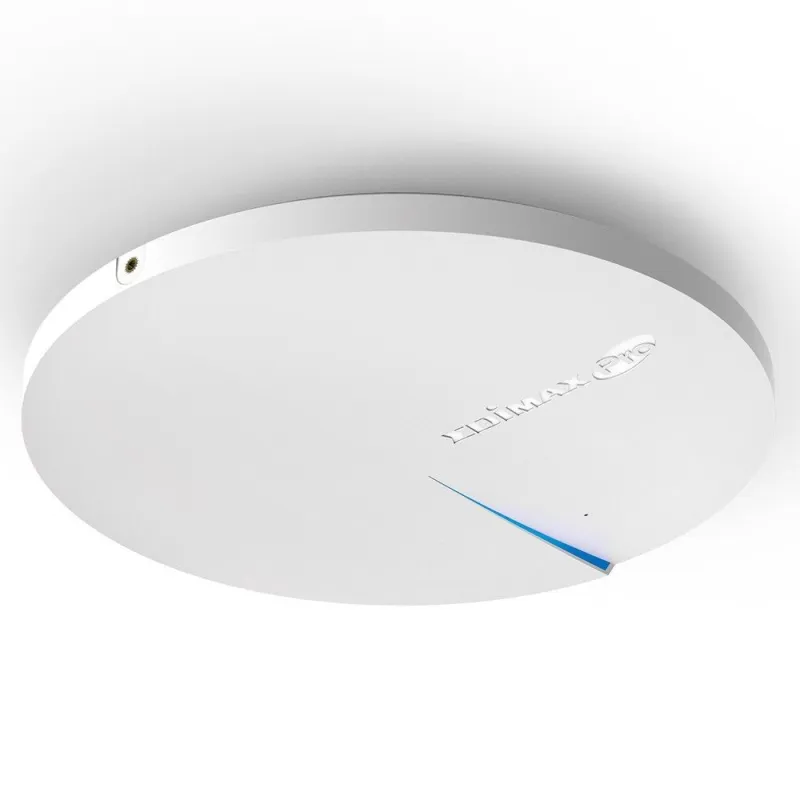

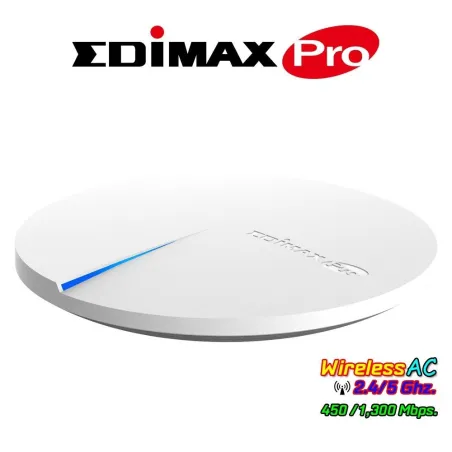

Edimax CAP1750 Ceiling-Mount PoE Access Point มาตรฐาน AC Dual-Band ความเร็ว 1750Mbps รองรับ POE

Overview

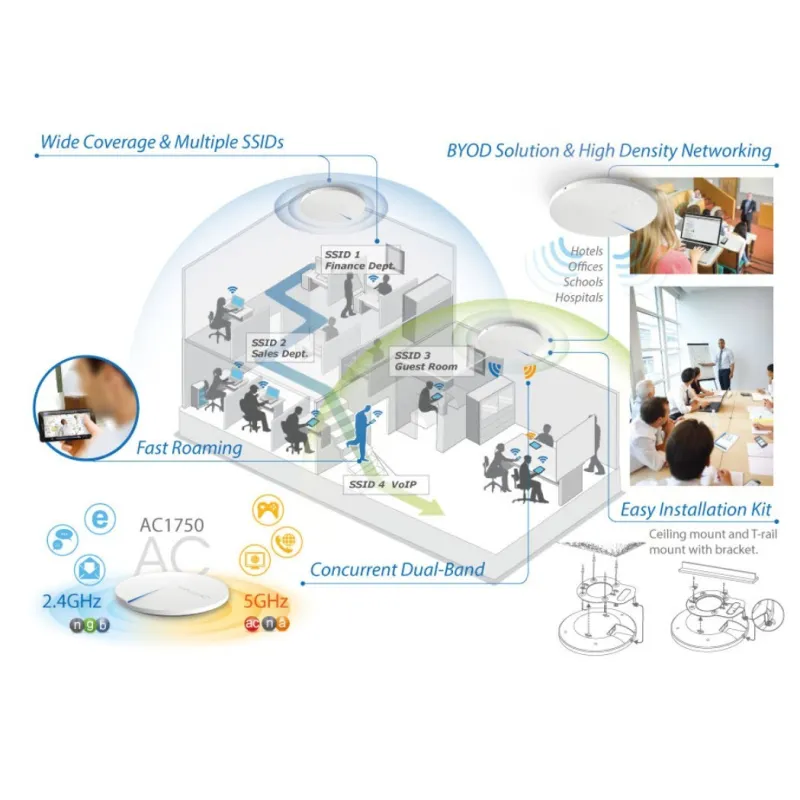

Edimax CAP1200 อุปกรณ์สื่อสารไร้สาย Access Point มาตรฐาน AC Dual-Band ความถี่ 2.4/5GHz ความเร็วสูงสุด 1200 Mbps มาตรฐาน IEEE802.11AC รองรับ POE มาตรฐาน 802.3af เหมาะสำหรับทำระบบ Hotspot ภายใน หอพัก รีสอร์ท โรงแรม

HARDWARE

LAN Interface

Gigaabit x 1

USB

USB 2.0 x 1 (Optional Ethernet Adapter for 2nd LAN)

PoE

802.3at

Antenna

Type: 6 x Built-In PIFA (3 x 2.4GHz, 3 x 5GHz)
Gain: 4.38dBi (2.4GHz), 5.34dBi (5GHz) Max.

Power

DC: 12V / 2A
802.3at (PoE Injector Optional)

Dimensions

20.8 (D) x 3.15 (H) cm

Weight

565g

Power Consumption (Full Loading)

15W; 19.2W (With USB)

Mounting

Ceiling

WPS/Reset

Y

LED Indicator

1. Power LED
2. Diag LED

Environmental Conditions

Operating Temperature: 0?C (32?F) to 50?C (122?F)
Operating Humidity: 90% or Less

Power Saving

802.3az

Internal Buzzer

Y

Housing

UL94-5VB Flammability Rating Plastic

WIRELESS

Standard

802.11 a/b/g/n/ac Concurrent Dual-Band

No. of Radios

2

Receiver Sensitivity

? -93dBm

Certification

CE / FCC

Fast Roaming

Y

Number of SSIDs

16 (2.4GHz) + 16 (5GHz)

PERFORMANCE

Maximum Data Speed

450 + 1300Mbps

Concurrent Clients

Up to 50 Per Radio

RF SPECIFICATONS

Frequency Band

•Radio ?: 802.11b/g/n 2.412~2.484(GHz)
•Radio ?: 802.11a/n/ac 5.18~5.24(GHz), 5.745~5.825(GHz)
(The supported frequency band is restricted by local regulations.)

Operation Channels

•2.4GHz : US/Canada 1-11; 2.412~2.462GHz
        Europe 1-13; 2.412~2.472GHz
        Japan 1-14; 2.412~2.484GHz
•5GHz : Country dependent for the following ranges:
        US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)
        Band 4:149, 153, 157, 161, 165; 5.745~5.825(GHz)
        Europe: Band 1:36, 40, 44, 48; 5.180~5.240(GHz)

Transmit Power

•802.11b
  23dBm@1Mbps
  23dBm@2Mbps
  [email protected]
  23dBm@11Mbps
•802.11g
  23dBm@6Mbps
  23dBm@9Mbps
  23dBm@12Mbps
  23dBm@18Mbps
  23dBm@24Mbps
  22dBm@36Mbps
  20dBm@48Mbps
  19dBm@54Mbps
•802.11gn (2.4G)
  23dBm@MCS0/8
  22dBm@MCS1/9
  22dBm@MCS2/10
  22dBm@MCS3/11
  21dBm@MCS4/12
  20dBm@MCS5/13
  19dBm@MCS6/14
  18dBm@MCS7/15

•802.11a
  22dBm@6Mbps
  22dBm@9Mbps
  22dBm@12Mbps
  22dBm@18Mbps
  22dBm@24Mbps
  21dBm@36Mbps
  19dBm@48Mbps
  18dBm@54Mbp
•802.11an(5G)
  23dBm@MCS0/8
  22dBm@MCS1/9
  22dBm@MCS2/10
  21dBm@MCS3/11
  21dBm@MCS4/12
  20dBm@MCS5/13
  19dBm@MCS6/14
  18dBm@MCS7/15
•802.11ac
  23dBm@MCS0
  22dBm@MCS1
  22dBm@MCS2
  21dBm@MCS3
  21dBm@MCS4
  20dBm@MCS5
  19dBm@MCS6
  18dBm@MCS7
  16dBm@MCS8
  15dBm@MCS9

Receiver Sensitivity

•802.11b
  ?-93dBm@1Mbps
  ?-85dBm@11Mbps
•802.11g
  ?-86dBm@6Mbps
  ?-72dBm@54Mbps
•802.11gn (2.4G)
  ?-83dBm@MCS0
  ?-69dBm@MCS7
  ?-81dBm@MCS8
  ?-66dBm@MCS15

•802.11a
  ?-90dBm@6Mbp
  ?-74dBm@54Mbps
•802.11an(5G)
  ?-87dBm@MCS0
  ?-69dBm@MCS7
  ?-84dBm@MCS8
  ?-68dBm@MCS15
•802.11ac
  ? -84dBm@MCS0
  ? -59dBm@MCS9
  ? -80dBm@MCS10
  ? -58dBm@MCS19

SECURITY

Encryption

WEP / WPA / WPA2

Wireless L2 Isolation

Y

Station Isolation

Y

IEEE 802.1x Authenticator

Y

EAP Authentication

PEAP

Hidden SSID

Y

MAC Address Filter

Y

Wireless STA

Y

Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS))

Y

SOFTWARE

Wireless Mode

AP / WDS AP / WDS Bridge / Repeter

802.1q VLAN

Y (VID = 1-4095)

Spanning Tree

RSTP

QoS

WMM (802.11e)
Max Associated Station No.

Pass-Through

IPv6 and VPN (PPTP, L2TP/IPsec)

DSCP (802.1p)

Y

Multicast Rate up to 54Mbps

Y

MANAGEMENT

Deployment

Standalone: AP mode
Master AP mode: Can manage 16 Edimax Pro APs
Managed AP mode: Be managed by Edimax Pro AP Controller (APC500) or Edimax Pro Master AP

Configuration

HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)

RADIUS Server

Built-In

Auto-Channel

Y

Private MIB

Y

ACCESSORY

Mounting Bracket

Ceiling-Mount Bracket Kit

Power Adapter

12V / 2A Power Adapter

Optional Accessories

EU-4306   USB 3.0 Gigabit Ethernet Adapter
GP-101IT   IEEE802.3at PoE Injector
