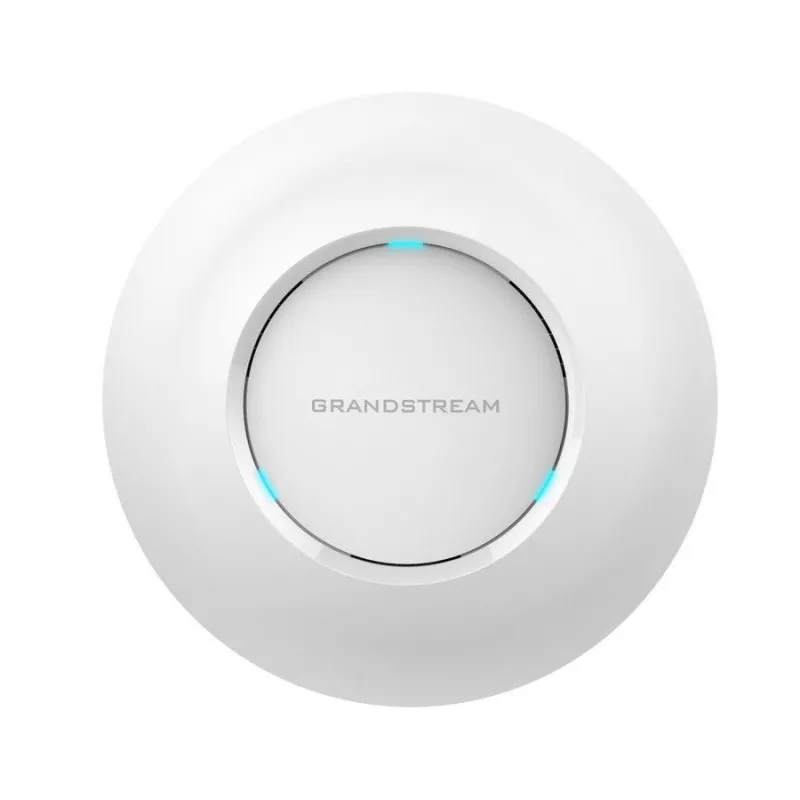

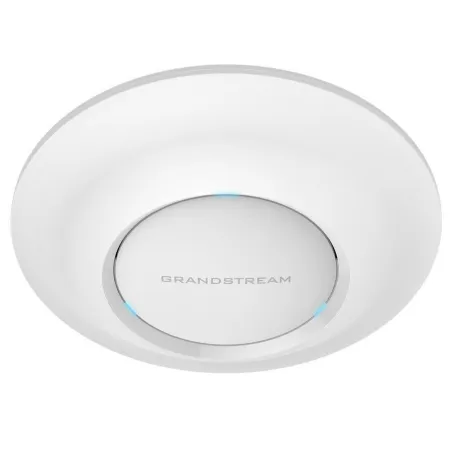

GradStream GWN7610 Enterprise 802.11ac WiFi Access Point Dual-Band 3x3 MIMO รองรับมากกว่า 250 Client

Product Specification

Overview

GradStream GWN7610 Enterprise 802.11ac WiFi Access Point Dual-Band 3x3:3 MIMO ความเร็วสูงสุด 1.75Gbps Port Gigabit รองรับ Device ได้สูงถึงา 250 Client

WiFi Standards

IEEE 802.11 a/b/g/n/ac

Antennas

3x 2.4 GHz, gain 3 dBi, internal antenna
3x 5 GHz, gain 3 dBi, internal antenna

WiFi Data Rates

IEEE 802.11ac: 6.5 Mbps to 1300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5 Mbps to 450 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

2.4GHz radio : 2.400 - 2.4835 GHz
5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz

Channel Bandwidth

2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz

WiFi and System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device

MIMO

3x3:3 2.4GHz, 3x3:3 5GHz

Coverage Range

Up to 575 ft. (175 meters)
*coverage range can vary based on environment

Maximum TX Power

5G: 26dBm (FCC) / 20dBm (CE)
2.4G: 26dBm (FCC) / 17dBm (CE)
*Maximum power varies by country, frequency band and MCS rate

Reciever Sensitivity

2.4G
802.11b:-92dBm@11Mbps;
802.11g:-76dBm@54Mbps;
802.11n 20MHz: -73dBm@MCS7;
802.11n 40MHz:-70dBm@MCS7

5G
802.11a:-94dBm@6Mbps;
801.11a:-77dBm@54Mbps;
802.11ac 20MHz: -69dBm@MCS8;
802.11ac HT40:-65dBm@MCS9;
802.11ac 80MHz:-61dBm@MCS9
* Receiver sensitivity varies by frequency band, channel width and MCS rate

SSIDs

16 SSIDs per radio

Concurrent Clients

250+

Network Interfaces

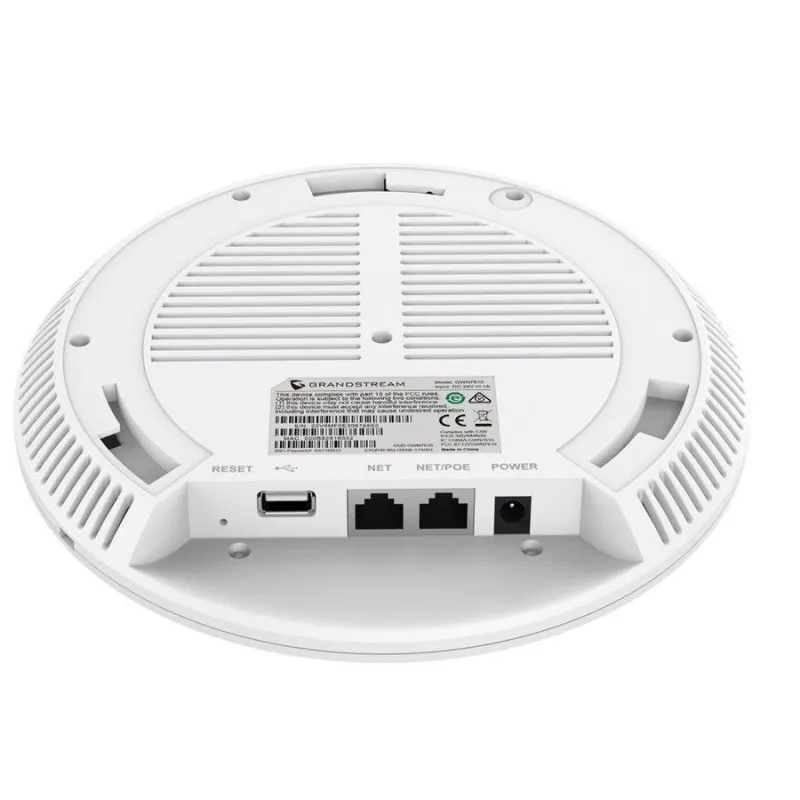

2x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock

Mounting

Indoor wall mount or ceiling mount, kits included

LEDs

3 tri-color LEDs for device tracking and status indication

Network Protocols

IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller in GWN7610 allows it to auto-discover, auto-provision and manage up to 50 GWN7610s in a network

Auto Power Saving

Self power adaptation upon auto detection of PoE or PoE+

Power and Green Energy Efficiency

DC Input: 24VDC/1A
Power over Ethernet 802.3af/802.3at compliant
Maximum Power Consumption:13.8W

Environmental

Operation: 0?C to 50?C
Storage: -10?C to 60?C
Humidity: 10% to 90% Non-condensing

Physical

Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g
Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 600g
Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g

Package Content

GWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide

รับประกัน

สินค้ารับประกัน 2 ปี
