Product Specification
|
|
Overview
|

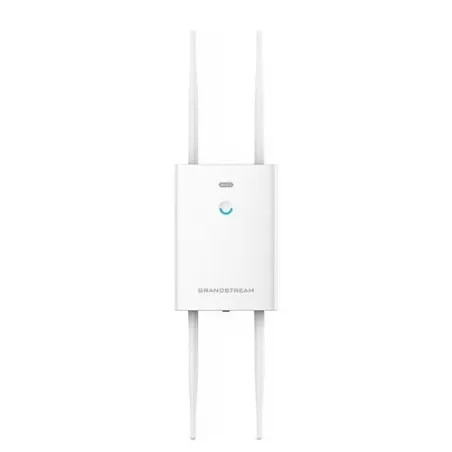

Grandstream GWN7664LR Access Point แบบ Outdoor รองรับติดตั้งภายนอกอาคาร AX Dual-band 4x4:4 กระจายสัญญาณรอบทิศทาง ระยะทางสูงสุด 175 เมตร ความเร็วสูงสุด 3.55Gbps, 1 Port Lan 1Gbps และ 1 Port Lan 2.5Gbps, รองรับ 750 Concurrents
รองรับ GWN Cloud Controller
|
|
Wi-Fi Standards
|
IEEE 802.11 a/b/g/n/ac/ax
|
|
Antennas
|
4 dual band external antennas
2.4GHz, gain 3.5dBi
5 GHz, gain 3.5dBi
|
|
Wi-Fi Data Rates
|
5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
802.11ac: 6.5 Mbps to 1733 Mbps IEEE
802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 8 Mbps to 1147 Mbps IEEE
802.11n: 6.5Mbps to 600Mbps IEEE
802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
|
|
Frequency Bands
|
2.4GHz Radio: 2412 - 2484 MHz
5GHz Radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions
|
|
Channel Bandwidth
|
2.4G: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)
|
|
Wi-Fi and System Security
|
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
|
|
MIMO
|
4×4:4 2.4GHz
4×4:4 5GHz
|
|
Coverage Range
|
Up to 300 meters
*coverage range can vary based on environment
|
|
Maximum TX Power
|
5G: 25dBm
2.4G: 26dBm
*Maximum power varies by country, frequency band and MCS rate
|
|
Receiver Sensitivity
|
2.4G
802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11
|
|
SSIDs
|
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
|
|
Concurrent Clients
|
750+
|
|
Network Interfaces
|
1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput
|
|
Auxiliary Ports
|
1x Reset Pinhole
|
|

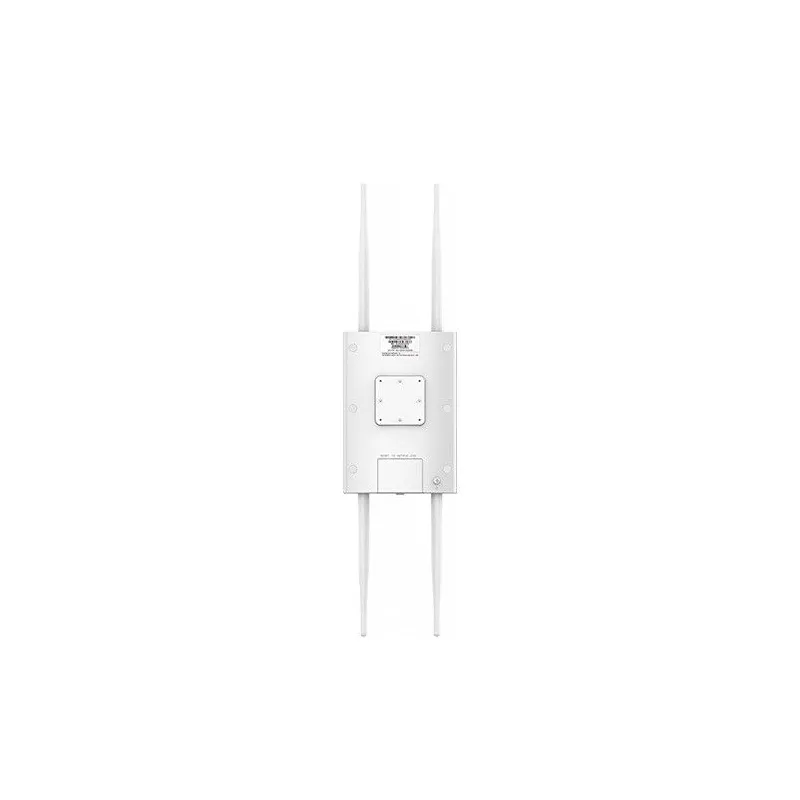

Mounting
|
Wall mount or pole mount, kits included
|
|
LEDs
|
1 tri-color LEDs for device tracking and status indication
|
|
Network Protocols
|
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
|
|
QoS
|
802.11e/WMM, VLAN, TOS
|
|
Network Management
|
Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
|
|
Power and Green Energy Efficiency
|
PoE 802.3af/ 802.3at;
Maximum Power Consumption: 18W
|
|
Environmental
|
Operation: 0°Cto 60°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
|
|
Physical
|
Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);
Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H);
Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H);
|
|
Package Content
|
GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
|
|
Weatherproof Grade
|
IP66-level weatherproof capability when installed vertically
|
|
Compliance
|
FCC, CE, RCM, IC
|
|
รับประกัน
|
2 ปี
|
