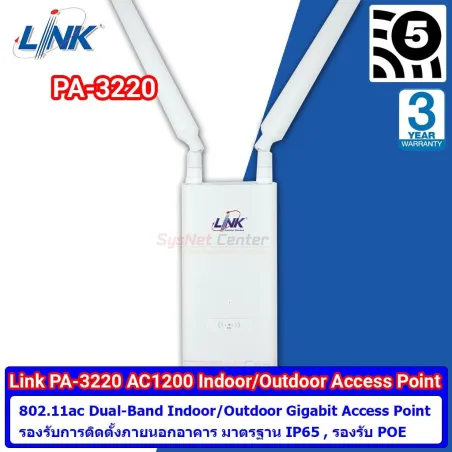

PA-3220 Link Access Point AC1200 Dual Band Indoor/Outdoor

Product Specification

Overview

Link PA-3220 Access Point AC1200 Dual Band Indoor/Outdoor 2x2 MU-MIMO 1.167Gbps กันน้ำกันฝุ่นมาตรฐาน IP65 , เสา 5dBi x 2 รองรับ POE 802.3af (POE not Include)
Access Point สำหรับงานภายนอกอาคาร ราคาประหยัด

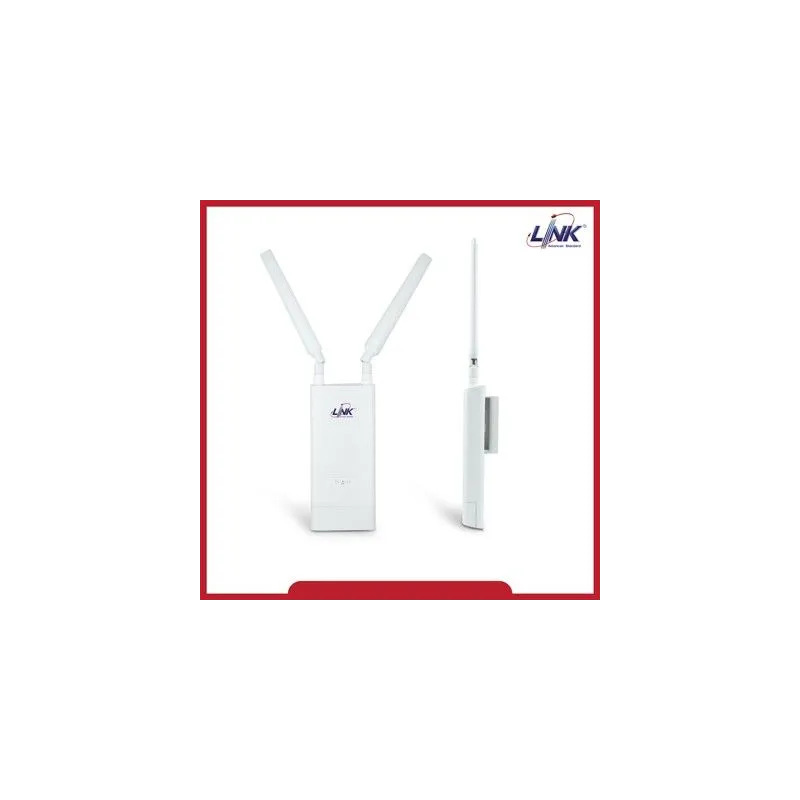

Appearance

Pole Mounting and Wall Mounting

Dimensions

194.7 mm * 83 mm * 42.1 mm

Standard Compliance

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

IEEE 802.11a/b/g/n/ac

Ethernet Port

1 x 10/100/1000Base-T, RJ45 (support PoE, Auto MDI/MDI-X and Auto-Negotiation)

Frequency band

2.4 GHz, 5 GHz

2.4 GHz Data Rate

Up to 300Mbps

5 GHz Data Rate

Up to 867Mbps

Button

1 x Reset

LED indicator

1 x System

Max. Power Consumption

Full-load 11.5W

Waterproof Level

IP65

Lightning Protection

6KV

Antenna

2 x 5dBi, RP-SMA Connector

Operating mode

AP

Hide SSID

Supported

Max. of SSID

2.4 GHz: 8, 5 GHz: 4

Max. connected clients

2.4 GHz: 128, 5 GHz: 256

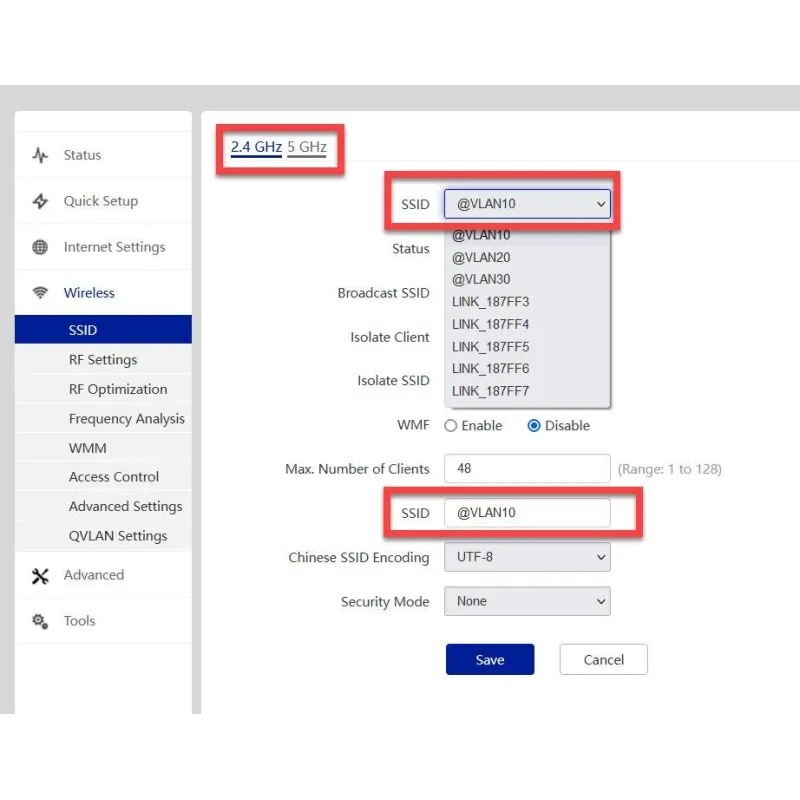

VLAN tagging for SSID

Supported (IEEE802.1q)

2.4 GHz max. output power

23 dBm

5 GHz max. output power

23 dBm

Operating temperature

-10°C to 45°C

Operating humidity

(10% - 90%) RH, non-condensing

Storage temperature

-30°C to 70°C

Storage humidity

(10% - 90%) RH, non-condensing

Certificates

CE, FCC and RoHS

รับประกัน

3 ปี
