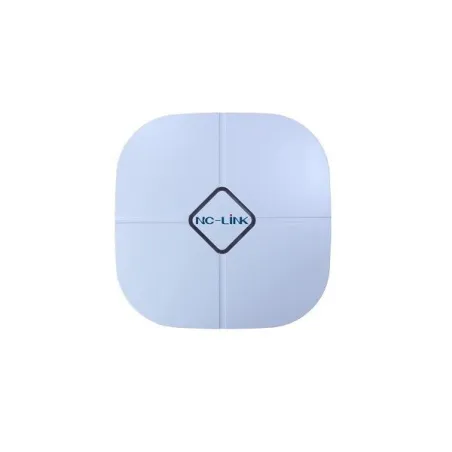

NC-Link NC-AP224P-TH Wireless Access Point 2.4GHz มาตรฐาน N ความเร็ว 300Mbps รองรับ POE

Wireless

Standards

2.4GHz:IEEE802.11n? IEEE802.11g?IEEE 802.11b

Signal Rate

ความถี่ 2.4GHz ความเร็วสูงสุด 300Mbps;

Frequency Range

2.4-2.4835GHz  5.15GHz-5.825GHz

Transmit Power

27dBm (MAX)

Data Transfer Rates

802.11n:
40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes

Repeater, Gateway, AP,WISP

Wireless Security

64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)

Hardware

Interfaces

2 * 10/100M Auto MDI/MDIX RJ45 LAN port
DC Jack

LED Indicators

Power, Wi-Fi

Buttons

Reset

Antenna

Intenna

Power Supply

รองรับ POE มาตรฐาน 802.3af, POE แบบ Passive

Dimensions (L x W x H )

168*45CM mm

Weight

200 g

Others

Certification

CE

Environment

Operating Temperature: 0?C~40?C
Storage Temperature: -40?C~70?C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package

1 * 300M High-Power ceiling mount AP
1 * Quick Installation Guide
1 * Wall mount accessory
1* LAN Cable
 ไม่มี Adapter ในชุดอุปกรณ์
