รายละเอียด
Totolink CP300 Quick Install Guide
Totolink CP300 Datasheet
HARDWARE FEATURES |
|---|

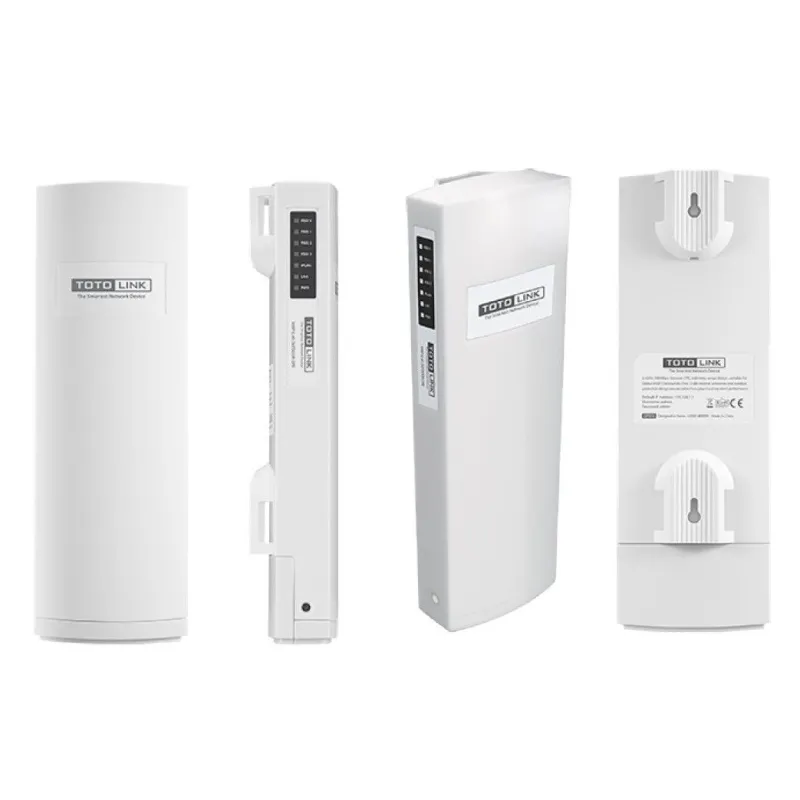

Overview | TOTOLINK CP300 WISP CPE 2.4GHz 300Mbps กันน้ำกันฝุ่นมาตรฐาน IP65 พร้อม POE สำหรับเชื่อมต่อเครือข่ายระยะไกล รองรับการทำ Repeater , Wireless Bridge |
HARDWARE FEATURES |
Chipset | RTL8196E+RTL8192ER |
Flash | Default 4MB SPI Nor Flash |
SDRAM | Default 32MB SDRAM |
Interface | 1 *100BaseTX (Auto MDI/MDIX) LAN Port (Passive PoE Supported) |
Power Supply | 12V DC /1A (PoE) |
Button | 1 *Reset Button |
Antenna | 2 *12dBi internal antennas |
LED Indicators | 1 *Power, 1 *LAN, 1 *WLAN, 4 *Signal Strength
|
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3 |
RF Frequency | 2.4~2.4835GHz |
Data Rate | 802.11n: up to 300Mbps
802.11g: up to 54Mbps (dynamic)
802.11b: up to 11Mbps (dynamic) |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-Mixed |
Channel | 1-11 (North America), 1-13 (General Europe), 1-14 (Japan) |
Modulation Type | DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM) |
Reception Sensiticity | 11M: -81 dBm@10% PER
54M: -68 dBm@10% PER
HT20 MCS7: -65 dBm@10% PER
HT40 MCS7: -62 dBm@10% PER |
System Status | A summary of wireless status |
Operation Mode | AP Mode
Repeater Mode
Client Mode
WISP Mode |
Network | LAN Setting
Static DHCP Setup |
Wireless | Basic Setting
Advanced Setting
WDS Setting
Access Control
WPS Setting |
Management | Basic Setting
Upgrade Firmware
Save/ Reload Setting
Time Zone Setting
Password Setting
Reboot Schedule
Reboot Router |

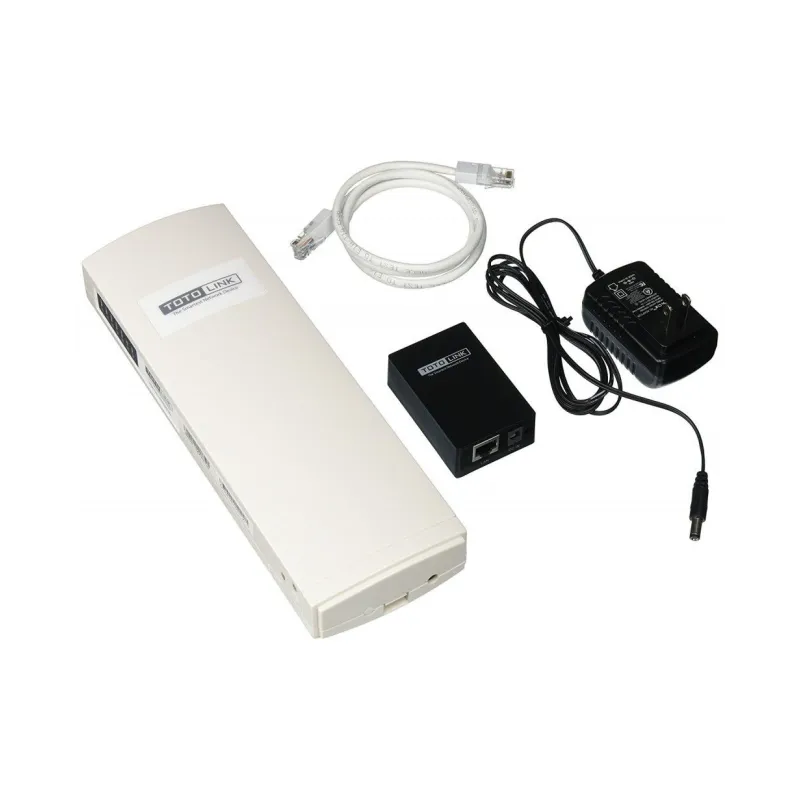

Package Contents | CP300 2.4GHz CPE *1
PoE Box *1
Power Adapter *1
Ethernet Cable *1
Strips *2
Quick Installation Guide *1 |
Environment | Operating Temperature:0℃~40℃(32℉~104℉)
Storage Temperature: -40℃~70℃(-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity:5%~90% non-condensing |
รับประกัน | 5 ปี ประกัน  |
