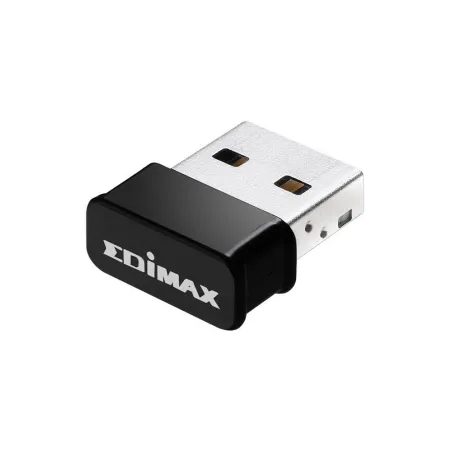

Edimax EW-7822ULC ตัวรับ Wireless AC1200 Dual-Band MU-MIMO USB Adapter

1 x USB 2.0 Type A
1 x Link/Activity LED

Internal Antennas x 2 (2T2R)

7.1 (H) x 14.9 (W) x 20 (D) mm

2g

2.4GHz: IEEE 802.11b, 802.11g, 802.11n
5GHz: IEEE 802.11ac, 802.11a, 802.11n

2.4000 - 2.4835GHz*
5.150 - 5.825GHz*
FCC: Band 1:  5.150~5.250(GHz) ; Band 4:  5.745~5.850(GHz)
CE:   Band 1: 5.150~5.250(GHz)
*Subject to local regulations

2.4GHz:
11b(11M): 8?1.5dBm
11g(54M): 7?1.5dBm
11n(20MHz, MCS7): 6?1.5dBm
11n(40MHz, MCS7): 6?1.5dBm

5GHz:
11a(54M): 7?1.5 dBm
11n(20MHz, MCS7): 6?1.5 dBm
11n(40MHz, MCS7): 6?1.5dBm
11ac(80MHz, VHTMCS9): 4?1.5dBm

11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps; 11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 144Mbps
11n (40MHz): MCS0-07, up to 300Mbps
11ac (80MHz): VHTMCS0-9, up to 867Mbps

WEP 64/128-bit, WPA, WPA2
Software WPS Configuration

Package Content

Quick Installation Guide
CD (Multi-Language Quick Installation Guide & Setup Wizard)

System Requirements

Windows 7/8/8.1 or above
Mac OS 10.9 or above

Environment

Operating Temperature: 32~104?F (0~40?C)
Storage Temperature: -4~140?F (-20~60?C)
Operating Humidity: 0~90% (NonCondensing)
Storage Humidity: Max. 95% (NonCondensing)

รับประกัน

Lifetime ประกัน
