Product Specification
|
|
Overview
|

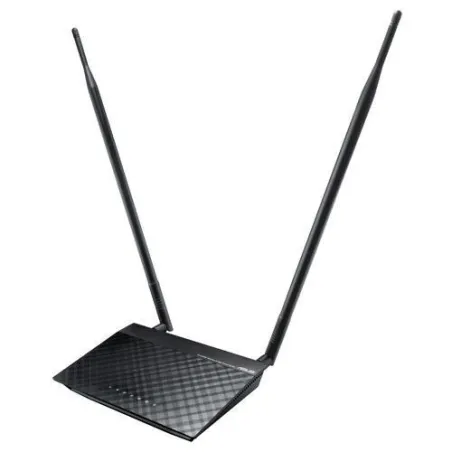

Asus RT-N12HP Wireless N300 High Power 2.4GHz 300Mbps รองรับ Mode Router/Access Point/ Repeater เสา 9dBi x 2 ส่งสัญญาณ WIFI ได้ไกล
|
|
Network Standard
|
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4, IPv6
|
|
Coverage
|
Medium homes
|
|
Data Rate
|
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
|
|
Antenna
|
Detachable 9 dBi antenna x 2
*Antenna type will differ according to local regulations and requirement in each country
|
|
Transmit/Receive
|
MIMO technology
2.4 GHz 2 x 2
|
|
Memory
|
8 MB Flash
32 MB RAM
|
|
Operating Frequency
|
2.4 GHz
|
|
Encryption
|
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
|
|
Firewall & Access Control
|
-
|
|
Management
|
UPnP, IGMP v1/v2/v3, DNS Proxy, NTP Client, DDNS, Port Trigger, Virtual Server, DMZ
|
|
Ports
|
RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4
|
|
Button
|
WPS Button, Reset Button, Power Button
|
|
Features
|
SmartQoS
WMM
User definable rules for IP/MAC/Port
Upload and download bandwidth management
ACK/SYN/FIN/RST/ICMP with highest priority
Guest Network : 2.4 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server
IPTV support
|
|
LED Indicator
|
Power x 1
Wireless x 1
WAN x 1
LAN x 4
|
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1 A current
|
|
OS Support
|
Windows® 10
Windows® 8.1
Windows® 8 , 32bit/64bit
Windows® 7 , 32bit/64bit
Windows® Vista , 32bit/64bit
Windows® XP , 32bit/64bit
Mac OS X
Linux
|
|
Dimensions
|
179 x 128 x 28 ~ mm (WxDxH)
|
|
Weight
|
320g
|
|
Package Content
|
RT-N12HP x 1
RJ45 Cable x 1
9dbi Antenna x 2
Warranty Card x 1
Power Supply x 1
|
|
Operation mode
|
Wireless router mode
Range extender mode
Access point mode
|
|
รับประกัน
|
5 ปี
|
