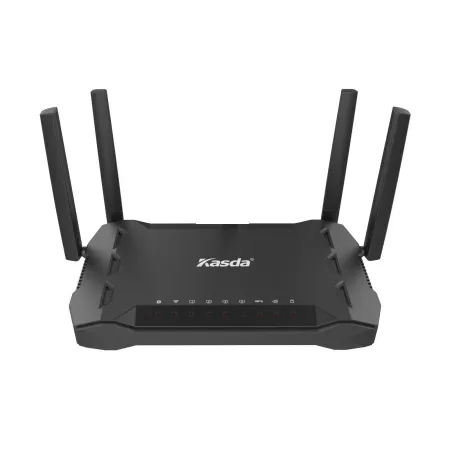

Overview | KASDA KW6515 11ac 1200M Wireless Router มาตรฐาน AC ความเร็วสูงสุด 1200Mbps 4 Port Lan 100Mbps,1 Port WAN เสาอากาศ 3dBi x 4 |
Wireless | Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
Frequency: 2.4GHz, 5GHz
|
Wireless Speed: Up to 300Mbps for 2.4GHz and up to 900Mbps for 5GHz, totals up to 1200Mbps |
Transmit Power: <(20dBm) |
Wireless Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK/TKIP/AES |
Wireless Features: Enable/Disable Wireless Radio, Multi-SSID, WDS, Access Control List, Wireless Statistics |
Guest Network: 2.4GHz guest network x1, 5GHz guest network x1
|
Hardware | Physical Interface: 4*10/100 Mbps LAN port & 1*10/100 Mbps WAN port
|
Buttons: ON/OFF, Reset, WPS
|
LED Indicators: Power, WAN, LAN1/2/3/4, 5G WiFi, 2.4G WiFi, WPS
|
Antenna: 4 External 3dBi Antennas
|
Power: Input: 100-240V AC, 50Hz; Output: 12V/2A |
Software | WAN Connection Types: DHCP Client/Static IP/PPPoE, PPTP/ L2TP/ Bridge |
PPP Auto Reconnect and Configurable Timeouts, PPP Auto Reconnect on WAN Access/PPP on Demand, Static Route, Dynamic RIPv1, RIPv2 support |
MTU Adjustment |
DNS Relay Agent/DDNS Support |
Network Address Translation (NAT) |
Port Forwarding, DMZ Support, UPnP(Universal Plug and Play) |
NAT Application Level Gateway for popular applications |
IGMP Snooping v1/2 and IGMP Multicast |
DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
|
Parental Control
|
PAP/CHAP for PPP mode
|
NAT for Firewall
|
SPI Firewall
|
2 Level (User/Admin) Authentication to Router
|
IP and MAC Filtering
|
Quality of Service: Priority Queuing /Classification Rules /802.1p, WMM |
VPN Pass-through: IPSec/PPTP/L2TP Pass-through |
Dynamic DNS: DynDns, NO-IP
|
Management Support: Web Based GUI,FTP /HTTP /Telnet, Command Line Interface, Diagnostic Test, Firmware Upgrade-able, Supports Remote Access Control |
Operating System | Windows 8/7/vista/XP, Mac OS, Android, iOS |
Environment
| Operating Temperature:-10?C~55?C(14~131?) Storage Temperature: -30?C~60?C(-22~140?) Operating Humidity: 5%~95% non-condensing Storage Humidity: 5%~90% non-condensing |
Package Content
| AC1200 Wireless Dual Band Router KW6515; Power Adapter; RJ45 Cable; Quick Setup Guide |
รับประกัน | Lifetime ประกัน  |
| |
