Product Specification
|
|
Overview
|

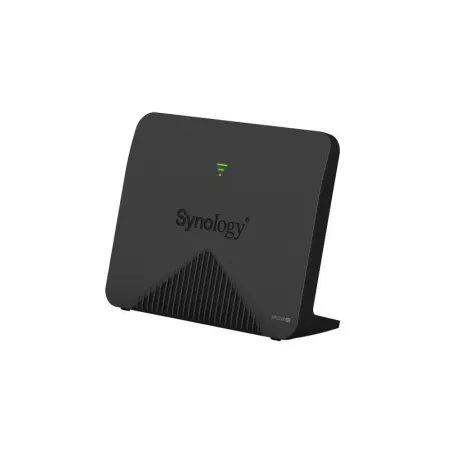

Sysnology MR2200ac Wireless Access Point MESH AC MU-MIMO Wave2 Tri-Band 867Mbps ระบบ Safe Access ควบคุมการใช้งาน Internet ภายในบ้าน รองรับ VPN, File Sharing & Backup, จัดการ Bandwidth ด้วย Granular Quality of Service (QoS)
|
|
Hardware Specifications
|
|
CPU
|
Quad core 717 MHz
|
|
Memory
|
256 MB DDR3
|
|
Antenna type
|
2x2 MIMO high-performance internal antenna (2.4 GHz / 5 GHz)
|
|
LAN port
|
Gigabit (RJ-45) x 1
|
|
WAN port
|
Gigabit (RJ-45) x 1
|
|
External Ports
|
USB 3.0 x 1 (5V, 0.9A power output)
|
|

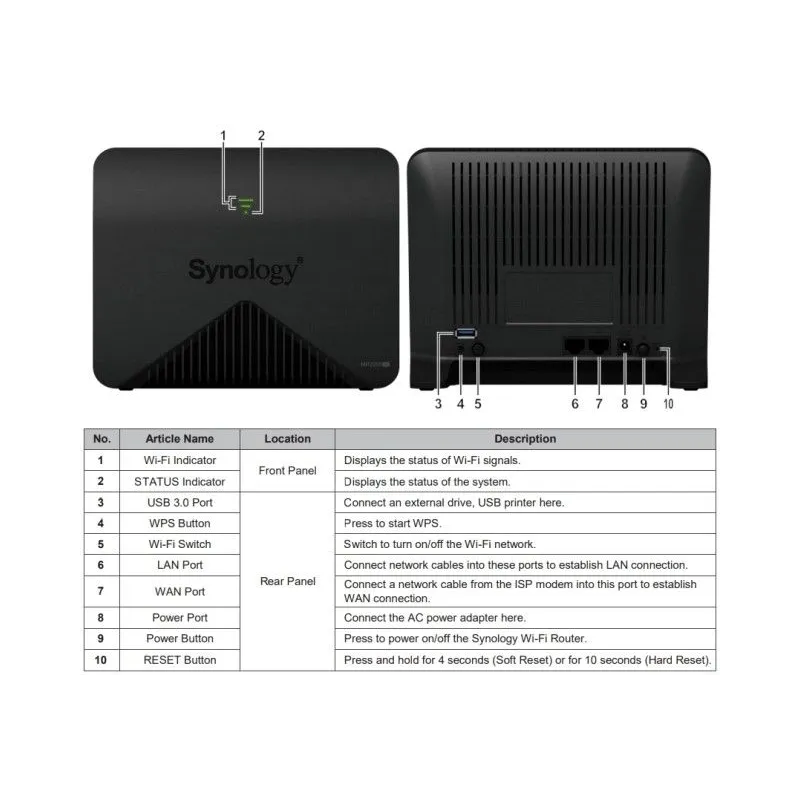

Button and switch
|
WPS, Power, Reset, Wi-Fi On/Off
|
|
Appearance
|
|
Size (Height x Width x Depth)
|
154 mm x 199 mm x 65 mm
|
|
Weight
|
0.45 kg
|
|
Temperature
|
|
Operating Temperature
|
5?C to 40?C (40?F to 104?F)
|
|
Storage Temperature
|
-20?C to 60?C (-5?F to 140?F)
|
|
Relative Humidity
|
5% to 95% RH
|
|
Certification
|
FCC
CE
BSMI
VCCI Class B
RCM
KC
iDA
TELEC
JATE
IC
|
|
Wi-Fi Certification
|
CE
FCC
NCC
RCM
iDA
TELEC
KC
IC
|
|
Warranty
|
2 Years
|
|
Notes
|
The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
|
|
Others
|
|
AC Input Power Voltage
|
100V to 240V AC
|
|
Power Frequency
|
50/ 60Hz, Single Phase
|
|
Power Consumption*
|
12.95 W (Access)
5.21 W (Idle)
|
|
Wireless
|
|
IEEE 802.11ac
|
IEEE 802.11a/b/g/n/ac
Simultaneous tri-band Wi-Fi
5GHz-1: 867Mbps
5GHz-2: 867Mbps
2.4GHz: 400Mbps
|
|
IEEE 802.11ac wave 2
|
MU-MIMO
|
|
Wi-Fi encryption
|
WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)
|
|
Wi-Fi MAC address filter
|
Yes
|
|
Maximum MAC filters
|
64
|
|
Seamless roaming
|
802.11k/v/r standard support
|
|
Beamforming
|
Yes
|
|
DFS
|
Yes
|
|
Schedulable Wi-Fi
|
Yes
|
|
Guest Network
|
Yes
|
|
Guest Portal
|
Yes
|
|
Customized page style
|
Yes
|
|
Connection time limit
|
Yes
|
|
Password Rotation
|
Yes
|
|
WPS 2.0 (Wi-Fi Protected Setup 2.0)
|
Yes
|
|
3G/4G Dongle & Tethering (Learn more)
|
Yes
|
|
Maximum connected devices
|
90
|
|

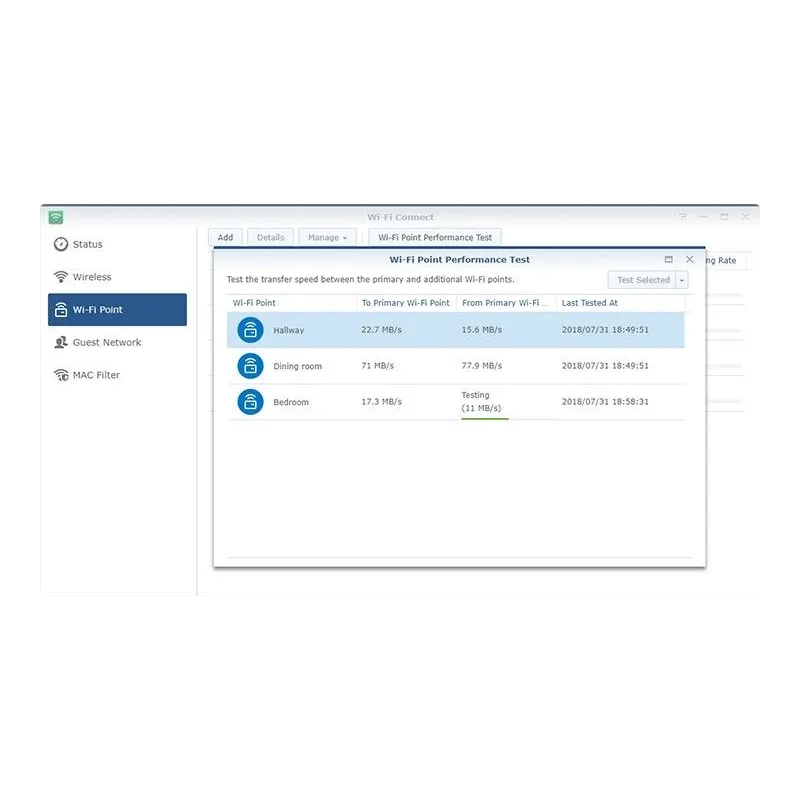

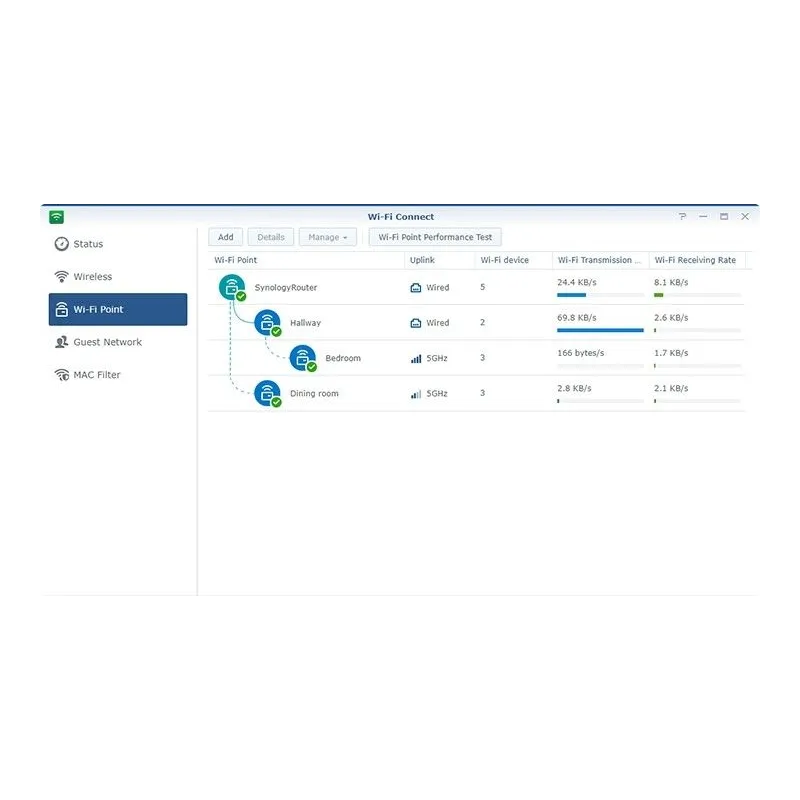

Wi-Fi Point
|
Yes
|
|
Primary Wi-Fi Point
|
Yes
|
|
Recommended maximum number of Wi-Fi points
|
1 Primary + 6 Wi-Fi points (in all wireless uplink connection environment)
1 Primary + 12 Wi-Fi points (in all wired uplink connection environment. Learn more)
|
|
Network
|
|
Internet connection
|
Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
|
|
3G/4G LTE dongle
|
Yes
|
|
Android tethering
|
Yes
|
|
iPhone tethering
|
Yes
|
|
Operating mode
|
Wireless Router
Wireless AP
|
|
Port forwarding
|
Setup via manual management or UPnP
|
|
Maximum port forwarding rules
|
64
|
|
Maximum UPnP rules
|
64
|
|
Port triggering
|
Yes
|
|
Maximum port triggering rules
|
32
|
|
Minimum port triggering timeout
|
30s
|
|
Maximum port triggering timeout
|
3600s
|
|
DMZ
|
Yes
|
|
IPv6
|
IPv6 DHCP server / client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6
|
|
DHCP
|
Server/client mode, client list, MAC address reservation
|
|
Maximum DHCP reservations
|
500
|
|
LAN/WLAN IGMP snooping
|
Yes
|
|
VPN
|
VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
VPN client (PPTP, OpenVPN, L2TP/IPSec)
VPN Pass-through (PPTP, IPSec, L2TP)
|
|
Policy route, Static route, Network Address Translation (NAT), PPPoE relay
|
Yes
|
|
Maximum IPv4 static routes
|
100
|
|
Maximum IPv6 static routes
|
100
|
|
Diagnosis tools
|
Ping
Traceroute
|
|
NAT loopback (Hairpinning)
|
Yes
|
|

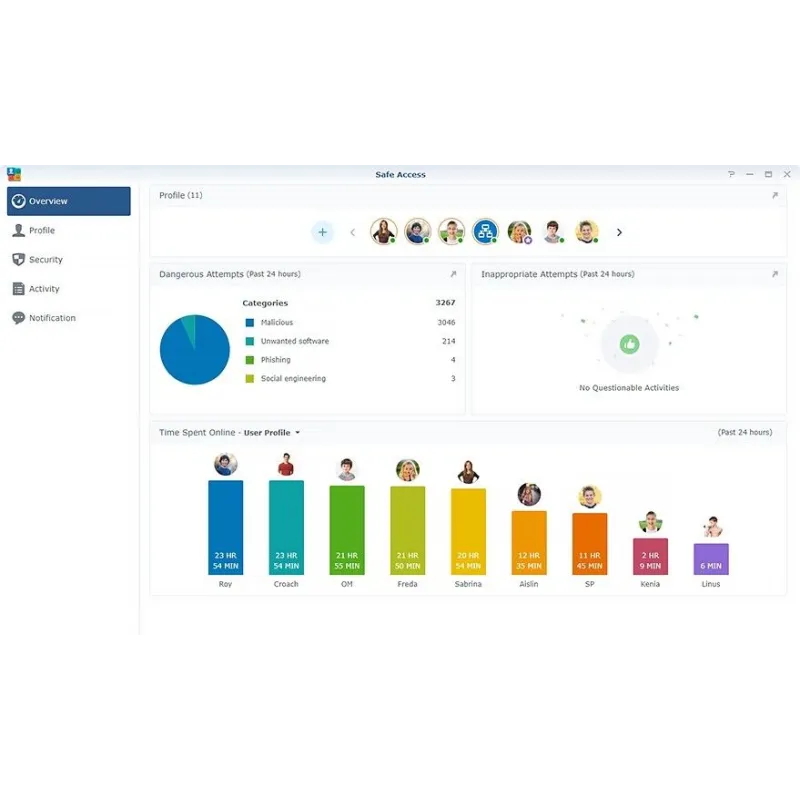

Safe Access
|
|

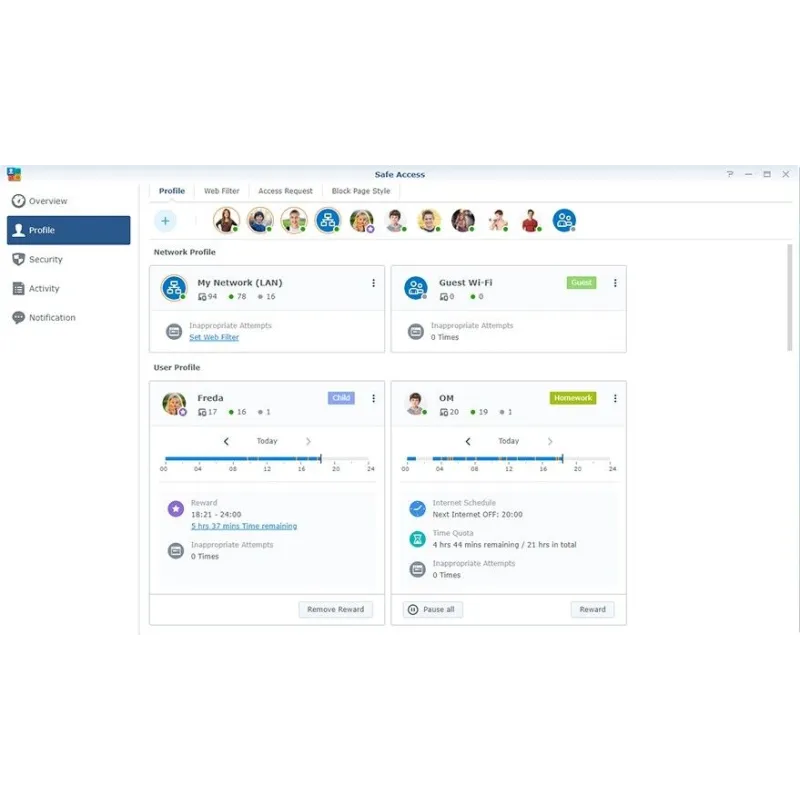

Parental Control
|
|
User Profile
|
15
|
|
Network Profile
|
2
|
|
Customized Internet schedule
|
Yes
|
|

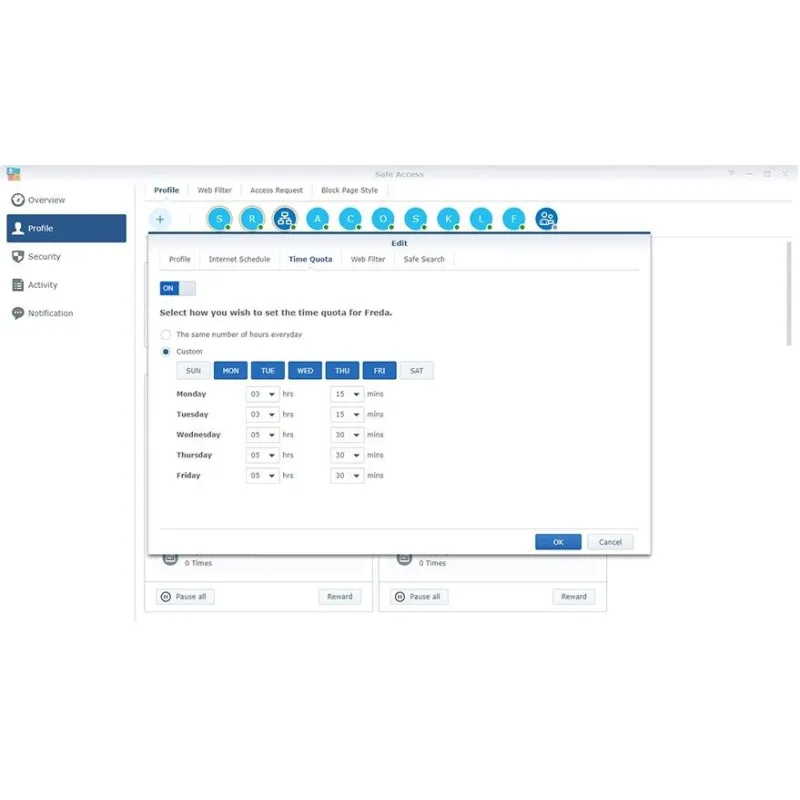

Time Quota
|
Yes
|
|

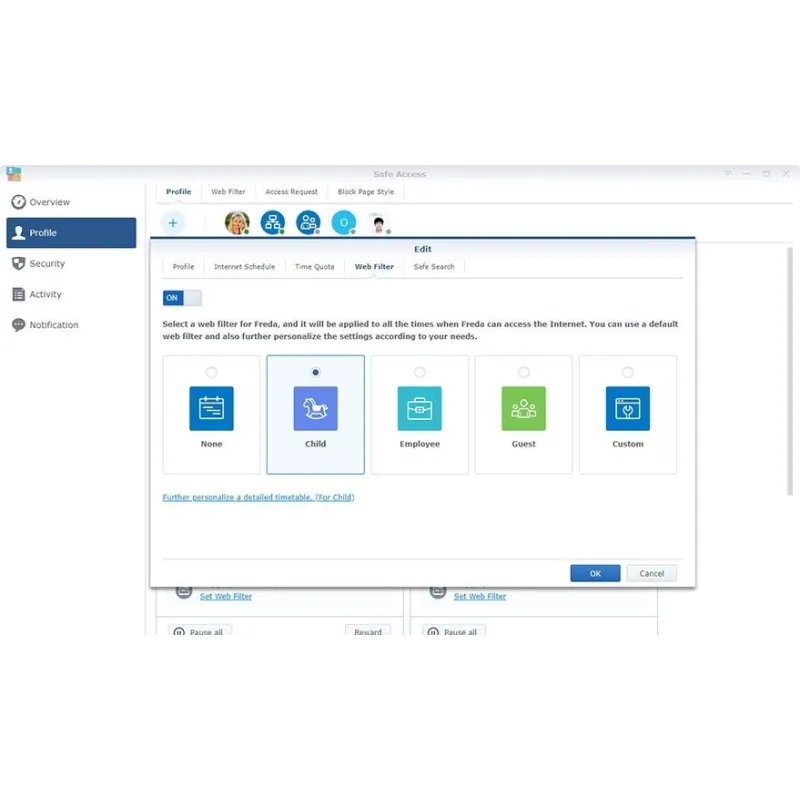

IPv4/IPv6 DNS-based web filter
|
Schedule
Database
Request to unblock
|
|
Customized allow/block list
|
Maximum blocked URLs: 100
Maximum allowed URLs: 100
|
|
Pause Internet
|
Yes
|
|
Reward
|
Yes
|
|
Log
|
Yes
|
|
Report
|
Yes
|
|
Security
|
|
Safe Search
|
Bing, Google, YouTube
|
|
Threat Intelligence Database
|
support in IPv4 & IPv6
|
|
Google Safe Browsing
|
support in IPv4 & IPv6
|
|
Database auto update
|
Threat Intelligence Database, Google Safe Browsing, DNS-based web filter
|
|
Traffic Control
|
|
Internet ban, device speed & priority
|
Yes
|
|
Application layer (L7) quality of service (QoS)
|
Yes
|
|
Maximum device rules
|
64
|
|
Maximum application rules per device
|
32
|
|
Traffic Monitor
|
Yes
|
|
Live view
|
Yes
|
|
Historical statistics
|
Daily, Weekly, Monthly, Annual
|
|
Website history
|
Yes
|
|
Application Detection
|
Yes
|
|
Traffic Report
|
Yes
|
|
Country auto update
|
Yes
|
|
Schedulable
|
Yes
|
|
Traffic analysis period
|
Daily, Weekly, Monthly, Annual
|
|
Export formats
|
.CSV, .HTML
|
|
VPN Plus Server
|
|
VPN Plus Server
|
Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — Site-to-Site VPN, WebVPN, SSL VPN, Remote Desktop, SSTP, OpenVPN, L2TP over IPSec, and PPTP
|
|
Maximum Client VPN Access License
|
10
|
|
Site-to-Site VPN
|
Yes
|
|
Maximum Site-to-Site VPN Tunnels
|
4
|
|
Remote Desktop (RDP + VNC)
|
3
|
|
Connection List
|
Yes
|
|
Log
|
Yes
|
|
Report
|
Yes
|
|
Package Center
|
|
Cloud Station Server
|
Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files
|
|
Maximum Concurrent File Transfers
|
64
|
|
Notes
|
Cloud Station ShareSync is not supported
|
|
DNS Server
|
Helps users find and translate domain names into IP addresses
|
|
Download Station
|
Supported download protocols: BT/HTTP/FTP/NZB/eMule
|
|
Maximum Concurrent Download Tasks
|
50
|
|
Maximum concurrent BT download tasks
|
20
|
|
Media Server
|
Media indexing
DLNA Compliance
PS3/PS4/Xbox 360/Xbox One supported
|
|
RADIUS Server
|
Provides centralized authentication, authorization, and accounting for wireless network access
|
|
Mobile Apps
|
|
DS router (Android/iOS)
|
First Time Installation
Network overview
Wi-Fi management
Wi-Fi system topology
Safe Access
Traffic Control
Network security (firewall, port forwarding, Internet ban)
Wake on LAN
System Update
|
|
VPN Plus (Android/iOS)
|
Yes
|
|
DS cloud (Android/iOS)
|
Yes
|
|
DS get (Android)
|
Yes
|
|
DS file (Android/iOS)
|
Yes
|
|
Management
|
|
Operating system
|
Synology Router Manager (SRM)
|
|
Free OS upgrade
|
Yes
|
|
Anywhere access to SRM
|
Synology QuickConnect & Dynamic DNS (DDNS)
|
|
Security
|
Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication
|
|
Wake on LAN (WOL)
|
Yes
|
|
WOL over QuickConnect
|
Yes
|
|
Maximum connected devices
|
100
|
|
Notification
|
Email, SMS, push service (via DS router)
|
|
SSH
|
Yes
|
|
SNMP
|
Yes
|
|
Configuration backup & restore
|
Yes
|
|
User account management
|
Yes
|
|
Printer server
|
Maximum printer: 1
|
|
USB/SD Card File Service
|
|
File System
|
EXT4, FAT, NTFS, HFS+
|
|
Access support
|
File explorer (via LAN only)
Web browsers: Chrome?, Firefox?, Internet Explorer?: 11 onwards, Safari? 11 onwards
Mobile device: DS file
|
|
Protocol support
|
Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV
|
|
Apple Time Machine
|
Yes
|
|
Shared Folder privileges
|
Yes
|
|
Storage hibernation
|
Yes
|
|
Environment & Packaging
|
|
Environment
|
RoHS Compliant
|
|
Packaging Content
|
Main Unit X 1
AC Power Adapter X 1
RJ-45 LAN Cable X 1
Quick Installation Guide X 1
|
|
Warranty
|
2 ปี, Adapter 3 เดือน
|
