รายละเอียด
Tenda AC23 User Guide
Tenda AC23 Datasheet
Tenda AC23 Installation Guide
|
Product Specification
|
|
Overview
|

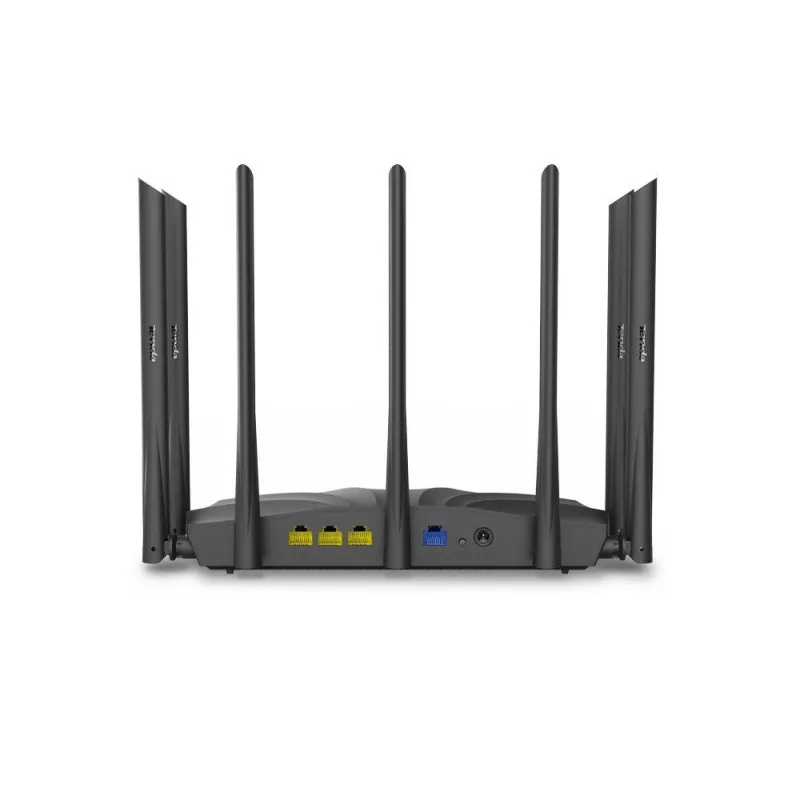

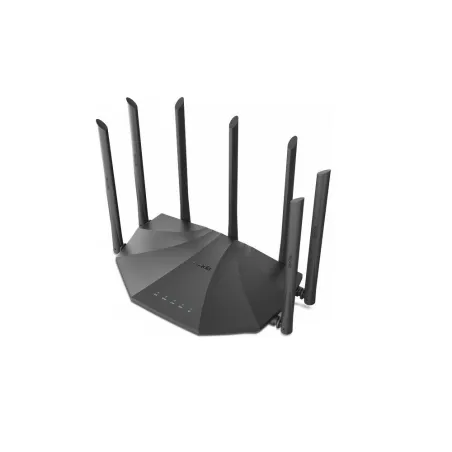

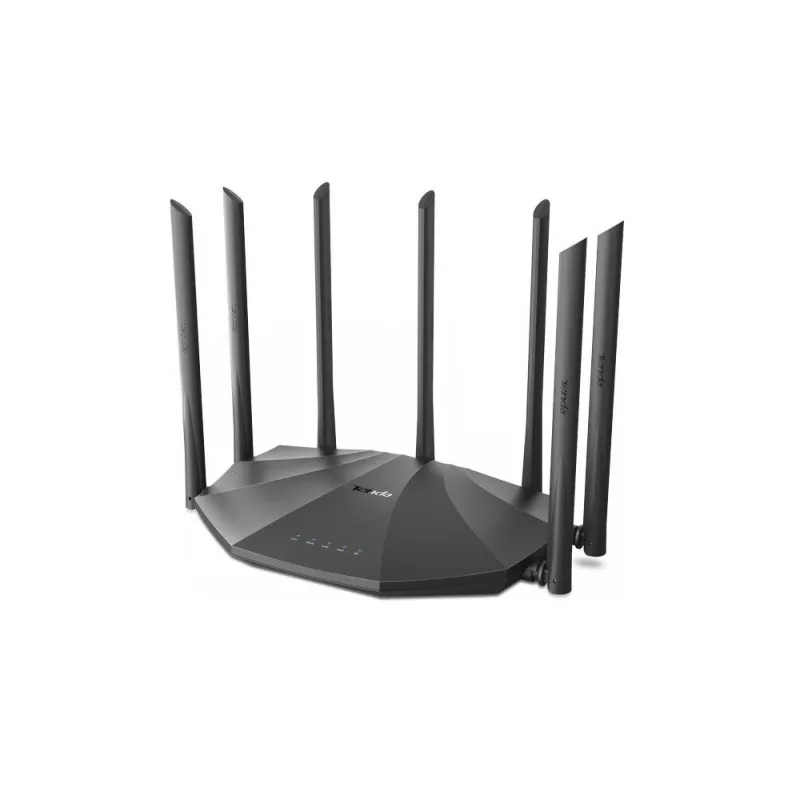

Tenda AC23 AC2100 Dual Band Gigabit WiFi Router มาตรฐาน 802.11ac 4X4 MU-MIMO ความเร็วสูงสุด 2,033Mbps (2.4 GHz: 300Mbps, 5GHz: 1,733Mbps) รองรับ Mode Repeater, เสาอัตราขยาย 6dBi x 7 ต้น, 4 Port Lan Gigabit
|
|
|
IEEE802.3，IEEE802.3u，IEEE802.3ab
|
|
Interface
|
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
|
|
Antenna
|
4*6dBi external dual band antennas
|
|
Button
|
1*WPS/Reset button
|
|
Power
|
Input：AC 200-240V—50/60Hz
Output：DC 9V 1A
|
|
LED
|
1*LED
|
|
Dimension
|
200x127x33.6mm(L*W*H)
|
|
Wireless Standard
|
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
|
|
Speed Rate
|
2.4GHz: 300Mbps
5GHz: 867Mbps
|
|
Frequency
|
Dual-Band 2.4GHz & 5GHz
|
|
Wireless Security
|
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security : Enable /Disable
|
|
Internet Connection Type
|
PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer
|
|
Operating Mode
|
Wireless Router Mode
AP Mode
Universal Repeater mode
WISP Mode
|
|
DHCP
|
DHCP Server
DHCP Client List
DHCP Reservation
|
|
Virtual Server
|
Port Forwaring
DMZ Host
UPnP
|
|
Security
|
Client Filter (supports black list and white list)
Parental Control (supports black list and white list)
Remote Web Management
|
|
Firewall
|
Forbid WAN PING from internet
|
|
DDNS
|
Support DynDNS, 88ip
|
|
Other Function
|
Broadband management
MAC address clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade from local
|
|
Temperature
|
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
|
|
Humidity
|
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
|
|
Default Settings
|
Default Access: tendawifi.com or http://192.168.0.1
|
|
Certification
|
CE，FCC，CCC，SRRC
|
|
Package Content
|
Wireless Router*1
Gigabit Ethernet Cable*1
Power Adapter*1
Installation Guide*1
|
|
รับประกัน
|
5 ปี
|
รายละเอียดสินค้า
20 รายการ
ข้อมูลสินค้า
- ลักษณะงาน Wireless
- กระจายสัญญาณ WIFI
- ความเร็ว มาตรฐาน WIFI
- WIFI-5 (ac) 1.2Gbps+
- ย่านความถี่
- Dual-Band 2.4/5GHz
- Mode Repeate/WDS/MESH
- Repeater
